6.2L MPI 350 EC - 2A530776 and Up - Steering System and Drive Lube Bottle

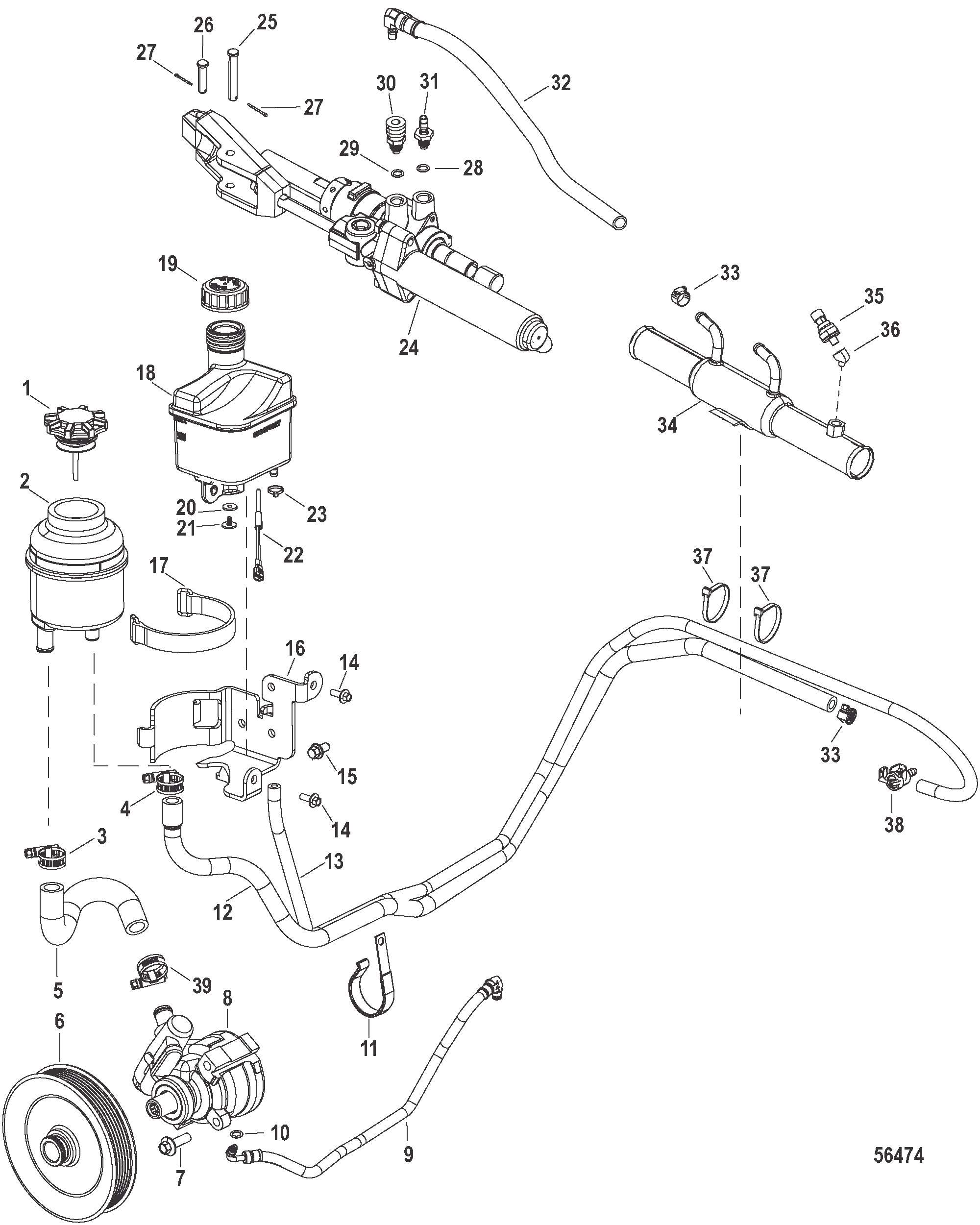

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Commentd Qty Note
1 0019 OEM: 525-19-8M0050237 CAP Oil Reservoir - Black   1
NS 0037 8M0089907 DECAL Steering Fluid   1
2 0000 OEM: 525-8M0046080 RESERVOIR ASSEMBLY Oil, Power Steering   1
3 0054 8M0083431 CLAMP   1
NS 0019 OEM: 525-19-8M0074363 CAP Clamp   1
4 0054 OEM: 525-54-F698772 CLAMP Worm Gear   1
5 0032 8M0077292 HOSE Oil Pump to Reservoir   1
6 0000 OEM: 525-861578, Sierra: 676-18-8297 PULLEY Use With .75 Shaft Diameter [2A576202] & Below 1
6 0000 8M0111943 PULLEY 4 Hole Face Use With .665 Shaft Diameter [2A576203] & Up 1
7 0010 OEM: 525-10-4010725 SCREW (M8 x 25)   3
8 0046 8M0095481 PUMP ASSEMBLY .75 Shaft Diameter [2A576202] & Below 1
8 0000 8M0110923 PUMP ASSEMBLY .665 Shaft Diameter [2A576203] & Up 1
9 0032 8M0107544 HOSE Pump to Cylinder   1
9 0032 8M0107543 HOSE Pump to Cylinder Bravo Fresh Water Cooling 1
10 0025 OEM: 525-25-89879 O-RING (.301 x .064)   1
11 0054 8M6002411 CLIP   1
12 0032 8M0099061 HOSE Oil Reservoir to Cooler   1
13 0032 8M0080036 HOSE ASSEMBLY Bottle to Transom   1
14 0010 OEM: 525-10-4006731 SCREW (M6 x 16)   2
15 0010 88552616 SCREW (M8 x 16)   3
16 0000 OEM: 525-8M0095757 BRACKET   1
17 0000 OEM: 525-8M0088265 STRAP   1
18 0000 OEM: 525-8M0095479 LUBE BOTTLE ASSEMBLY   1
19 0036 OEM: 530-8067271 CAP Drive Lube Monitor   1
20 0012 OEM: 525-12-72761 WASHER (.203 x .562 x .060) Stainless Steel   1
21 0010 OEM: 525-10-58376 SCREW (.164-18 x .375)   1
22 0087 OEM: 525-87-856156T04 SWITCH   1
23 0000 OEM: 525-69355 TIE STRAP (5.50 Inches)   1
24 0000 OEM: 525-8M0063382 CYLINDER ASSEMBLY Power Steering   1
25 0017 OEM: 525-17-15878 PIN Clevis   1
26 0017 OEM: 525-17-16419 PIN Clevis   1
27 0018 OEM: 525-18-46950 COTTER PIN   2
28 0025 OEM: 525-25-806232 O-RING (.239 x .064)   1
29 0025 OEM: 525-25-89879 O-RING (.301 x .064)   2
30 0022 OEM: 525-22-865415 FITTING   1
31 0022 OEM: 525-22-865414001 FITTING   1
32 0032 OEM: 525-32-865390015 HOSE Male Quick Connect Cylinder to Cooler   1
33 0054 OEM: 525-54-815504105 CLAMP Worm Gear (11-18 mm)   2
34 0000 OEM: 525-8M0095482 COOLER Power Steering Mechanical Shift 1
34 0000 8M0118727 COOLER Power Steering Digital Shift 1
35 0000 OEM: 530-8M6000623 SENSOR Water Pressure 50 PSI   1
36 0022 8M0109010 FITTING Elbow (45 Degree) Mechanical Shift 1
36 0022 OEM: 525-22-59351 ELBOW 90 Degree Digital Shift 1
37 0054 OEM: 525-54-816311T TIE STRAP (8.00 Inches)   2
38 0022 OEM: 525-22-865379 FITTING Female To Transom   1
39 0054 OEM: 525-54-815504210 CLAMP Worm Gear   1
