6.2L MPI 350 EC - 2A530776 and Up - Poppet Valve Assemblies

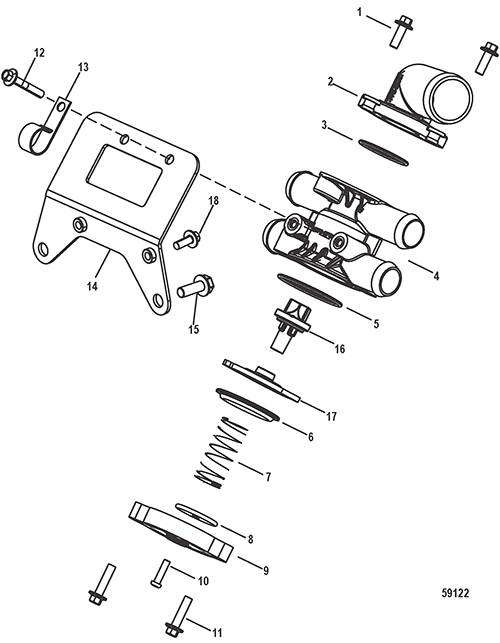

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head and Rocker Cover
- Electrical Components Bracket and Propulsion Control Module
- Electrical Components Starter, Alternator, and Coil Bracket
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel and Coupler
- Fresh Water Cooling Cooling Hoses
- Fresh Water Cooling Crossover Assembly
- Fresh Water Cooling Heat Exchanger
- Fresh Water Cooling Sea Pump Hoses
- Front Cover and Circulating Pump
- Fuel Supply Module 2A575398 and Below
- Fuel Supply Module 2A575399 and Up
- Fuel Supply Module and Rail
- Harnesses
- Intake Manifold Assembly
- Jackshaft Components
- Maintenance Kits
- Mercathode Kit
- Oil Fill Tube
- Oil Pan and Pump
- Overhaul Gasket Set 6.2L
- Pistons and Connecting Rods
- Poppet Valve Assemblies
- Raw Water Cooling (Bravo) Sea Pump Hoses
- Raw Water Cooling Cooling Hoses
- Raw Water Cooling Crossover Assembly
- Remote Oil
- Sea Water Pump
- Service and Support Material
- Shift Bracket Bravo
- Shift Bracket Digital Throttle and Shift
- Steering System and Drive Lube Bottle
- Top and Front Covers
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing Air Actuated Drain
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
| - | 0000 | OEM: 525-8M0095446 | VALVE ASSEMBLY Poppet Bravo Raw Water Cooling | 1 | ||
| - | 0000 | OEM: 525-8M0095459 | VALVE ASSEMBLY Poppet Fresh Water Cooling | 1 | ||
| 1 | 0010 | OEM: 525-10-4010618 | SCREW (M6 x 18) Stainless Steel | 2 | ||
| 2 | 0022 | OEM: 525-22-8M2020465 | FITTING | 1 | ||
| 3 | 0025 | OEM: 525-25-457101 | O-RING (1.424 x .103) | 1 | ||
| 4 | 0000 | 8M0032643 | HOUSING Bravo Raw Water Cooling | 1 | ||
| 4 | 0000 | OEM: 525-8M0089559 | HOUSING Fresh Water Cooling | 1 | ||
| 5 | 0025 | OEM: 525-25-30529, Sierra: 676-18-7171, GLM: 700-81360 | O-RING (1.925 x .103) | 1 | ||
| 6 | 0000 | OEM: 525-648771 | DIAPHRAGM | 1 | ||
| 7 | 0024 | OEM: 525-24-64878, GLM: 700-13821 | SPRING (Black) Bravo Raw Water Cooling | 1 | ||
| 7 | 0024 | OEM: 525-24-42996, GLM: 700-13824 | SPRING (Stainless Steel) Fresh Water Cooling | 1 | ||
| 8 | 0012 | OEM: 525-12-76451, GLM: 700-13817 | WASHER | 1 | ||
| 9 | 0000 | OEM: 525-8M0036759 | COVER | 1 | ||
| 10 | 0010 | OEM: 525-10-69570, GLM: 700-21751 | SCREW (#10-16 x .750) | 1 | ||
| 11 | 0010 | 8M0115132 | SCREW (M6) SEMS | 2 | ||
| 12 | 0010 | OEM: 525-10-4010612 | SCREW (M6 x 12) Stainless Steel | 2 | ||
| 13 | 0054 | OEM: 525-54-65292 | J CLIP | 2 | ||
| 14 | 0000 | 8M0115431 | BRACKET | 1 | ||
| 15 | 0010 | OEM: 525-10-816585 | SCREW (.312-18 x .875) | 2 | ||
| 16 | 0000 | 888913001 | POPPET | 1 | ||
| 17 | 0000 | 8M0091668 | PLATE Relief Valve | 1 | ||
| 18 | 0010 | OEM: 525-10-4010612 | SCREW (M6 x 12) Stainless Steel | 2 |
