6.2L MPI 350 EC - 2A530776 and Up - Top and Front Covers

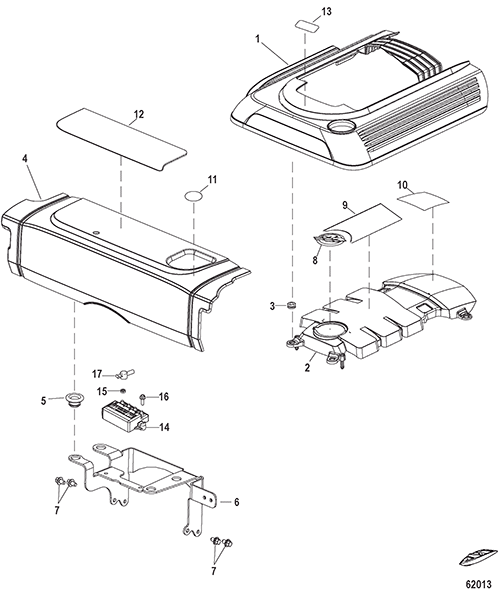

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head and Rocker Cover
- Electrical Components Bracket and Propulsion Control Module
- Electrical Components Starter, Alternator, and Coil Bracket
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel and Coupler
- Fresh Water Cooling Cooling Hoses
- Fresh Water Cooling Crossover Assembly
- Fresh Water Cooling Heat Exchanger
- Fresh Water Cooling Sea Pump Hoses
- Front Cover and Circulating Pump
- Fuel Supply Module 2A575398 and Below
- Fuel Supply Module 2A575399 and Up
- Fuel Supply Module and Rail
- Harnesses
- Intake Manifold Assembly
- Jackshaft Components
- Maintenance Kits
- Mercathode Kit
- Oil Fill Tube
- Oil Pan and Pump
- Overhaul Gasket Set 6.2L
- Pistons and Connecting Rods
- Poppet Valve Assemblies
- Raw Water Cooling (Bravo) Sea Pump Hoses
- Raw Water Cooling Cooling Hoses
- Raw Water Cooling Crossover Assembly
- Remote Oil
- Sea Water Pump
- Service and Support Material
- Shift Bracket Bravo
- Shift Bracket Digital Throttle and Shift
- Steering System and Drive Lube Bottle
- Top and Front Covers
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing Air Actuated Drain
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
| 1 | 100 | 8M0105209 | COVER Engine | 1 | ||
| 2 | 0000 | 8M0106637 | COVER Intake | 1 | ||
| 3 | 0025 | OEM: 525-25-828249 | GROMMET | 4 | ||
| 4 | 100 | 8M0095456 | COVER Front | Raw Water Cooling | 1 | |
| 5 | 0025 | OEM: 525-25-8M2001671 | GROMMET | Raw Water Cooling | 4 | |
| 6 | 0000 | OEM: 525-8M0095455 | BRACKET | Raw Water Cooling | 1 | |
| 7 | 0010 | 8M2600010 | SCREW (M6x10) | Raw Water Cooling | 4 | |
| 8 | 0037 | 8M0043703 | DECAL M-Icon, 66 MM, Black | 1 | ||
| 9 | 0037 | 8M0085347 | DECAL Center Cover 6.2L | 1 | ||
| 9 | 0037 | 8M0085348 | DECAL Center Cover 6.2L | Seacore | 1 | |
| 10 | 0037 | 8M0085343 | DECAL Rear Center Cover | 1 | ||
| 10 | 0037 | 8M0085344 | DECAL Rear Center Cover | Seacore | 1 | |
| 11 | NSS | NOT SOLD SEPARATE Decal, No Step | 1 | |||
| 12 | 0037 | 8M0099722 | DECAL Specifications | Raw Water Cooling | 1 | |
| 13 | 0037 | 8M0099694 | DECAL 300 Chrome | 1 | ||
| 13 | 0037 | 8M0099695 | DECAL 350 Chrome | 1 | ||
| NS | 0037 | 8M0085349 | DECAL Emissions Control Technology | 1 | ||
| NS | 0037 | 8M0085360 | DECAL Remove Cover | 1 | ||
| NS | 0037 | 8M0042965 | DECAL C.A.R.B. 4 Star | 1 | ||
| 14 | 0000 | OEM: 525-8M0100517 | MERCATHODE CONTROLLER MerCathode | Raw Water Cooling | 1 | |
| 15 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | Raw Water Cooling | 4 | |
| 16 | 0010 | OEM: 525-10-4010516 | SCREW (M5 x 16) Stainless Steel | Raw Water Cooling | 2 | |
| 17 | 0085 | OEM: 525-85-86606 | BOOT Insulator - Black | Raw Water Cooling | 4 | |
| NS | 0084 | 8M0096310 | HARNESS Mercathode 3 Wire | Raw Water Cooling | 1 |
