6.2L MPI 350 EC - 2A530776 and Up - Intake Manifold Assembly

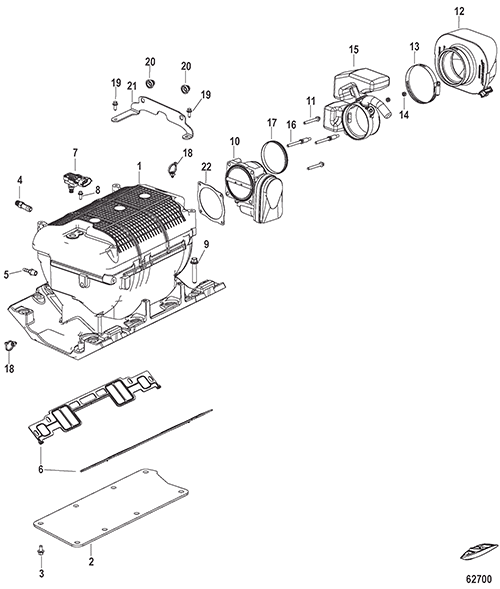

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head and Rocker Cover
- Electrical Components Bracket and Propulsion Control Module
- Electrical Components Starter, Alternator, and Coil Bracket
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel and Coupler
- Fresh Water Cooling Cooling Hoses
- Fresh Water Cooling Crossover Assembly
- Fresh Water Cooling Heat Exchanger
- Fresh Water Cooling Sea Pump Hoses
- Front Cover and Circulating Pump
- Fuel Supply Module 2A575398 and Below
- Fuel Supply Module 2A575399 and Up
- Fuel Supply Module and Rail
- Harnesses
- Intake Manifold Assembly
- Jackshaft Components
- Maintenance Kits
- Mercathode Kit
- Oil Fill Tube
- Oil Pan and Pump
- Overhaul Gasket Set 6.2L
- Pistons and Connecting Rods
- Poppet Valve Assemblies
- Raw Water Cooling (Bravo) Sea Pump Hoses
- Raw Water Cooling Cooling Hoses
- Raw Water Cooling Crossover Assembly
- Remote Oil
- Sea Water Pump
- Service and Support Material
- Shift Bracket Bravo
- Shift Bracket Digital Throttle and Shift
- Steering System and Drive Lube Bottle
- Top and Front Covers
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing Air Actuated Drain
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
| 1 | 0000 | 8M0107038 | INTAKE MANIFOLD | 1 | ||
| 2 | NSS | NOT SOLD SEPARATE Shield | 1 | |||
| 3 | 0010 | 8M0103804 | SCREW (M6 x 12 MM) Stainless Steel | 8 | ||
| 4 | 0022 | OEM: 525-22-897722 | FITTING Straight Crankcase Vent Valve (PCV) | 1 | ||
| 5 | 0022 | OEM: 525-22-859092 | FITTING To Fuel Regulator | 1 | ||
| 6 | 0027 | 8M0082966 | GASKET Intake Manifold | 2 | [1] | |
| 7 | 0000 | OEM: 525-8M6002029 | SENSOR Intake Manifold Temperature/Pressure Temperature / Manifold Pressure | 1 | ||
| 8 | 0010 | 8M0103805 | SCREW (M6 x 16MM) Stainless Steel | 1 | ||
| 9 | 0010 | OEM: 525-10-88552645 | SCREW (M8X45) | 8 | ||
| 10 | 0000 | 8M0114805 | THROTTLE BODY ASSEMBLY 80 MM | 1 | ||
| 11 | 0010 | OEM: 525-10-88552550 | SCREW (M6 x 50 MM) Stainless Steel | 2 | ||
| 12 | 0000 | 8M0113519 | FLAME ARRESTOR KIT With Clamp and Clamp Cover | 1 | ||
| 13 | 0054 | 8M0103048 | CLAMP | 1 | ||
| 14 | 0011 | OEM: 525-11-8M0045046 | NUT (M6) Stainless Steel | 2 | ||
| 15 | 0000 | 8M0114817 | RESONATOR | 1 | ||
| 16 | 0016 | 8M0109400 | STUD | 2 | ||
| 17 | 0026 | OEM: 525-26-866232 | SEAL | 1 | ||
| 18 | 0054 | OEM: 525-54-899145 | CLIP Tie Strap | 2 | ||
| 19 | 0010 | 8M0103805 | SCREW (M6 x 16MM) Stainless Steel | 2 | ||
| 20 | 0025 | 8M0096302 | GROMMET | 2 | ||
| 21 | 0000 | 8M0104935 | BRACKET Intake Cover | 1 | ||
| 22 | 0027 | 8M0109442 | GASKET Throttle Body | 1 |
PART NOTES:
[1] - Component of Longblock Assembly [8M0114814]
