496 Mag HO Model - Serial 0M687144 Thru 0W059999 - Engine Mounts

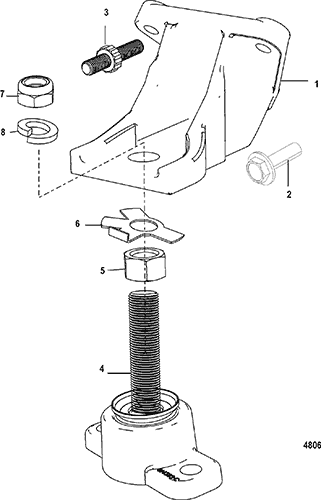

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Closed Cooling System
- Cool Fuel System
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow and Riser
- Flywheel Housing
- Fuel Filter and Boost Pump
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Power Steering
- Raw Water Cooling System
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle and Shift)
- Shift Bracket, Mechanical Shift (0W029410 and Below)
- Shift Bracket, Mechanical Shift (0W029411 and Up)
- Smart Craft Sensor and Harnesses
- Starter and Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 79550A1 | BRACKET, Engine Mounting | 2 | ||||||
| 2 | 10-40001197 | SCREW, (M10 x 35) | 2 | ||||||
| 3 | 16-861580 | STUD, Double Ended Metric | 4 | ||||||
| 4 | 814263A1 | BASE ASSEMBLY | 2 | ||||||
| 5 | 11-816331 | NUT, (.750-16), Jam | 2 | ||||||
| 6 | 14-12657 | TAB WASHER | 2 | ||||||
| 7 | 11-859126 | NUT, (.750-16), Jam | 2 | ||||||
| 8 | 13-68102 | LOCKWASHER, (.750) | 2 |
