496 Mag HO Model - Serial 0M687144 Thru 0W059999 - Smart Craft Sensor and Harnesses

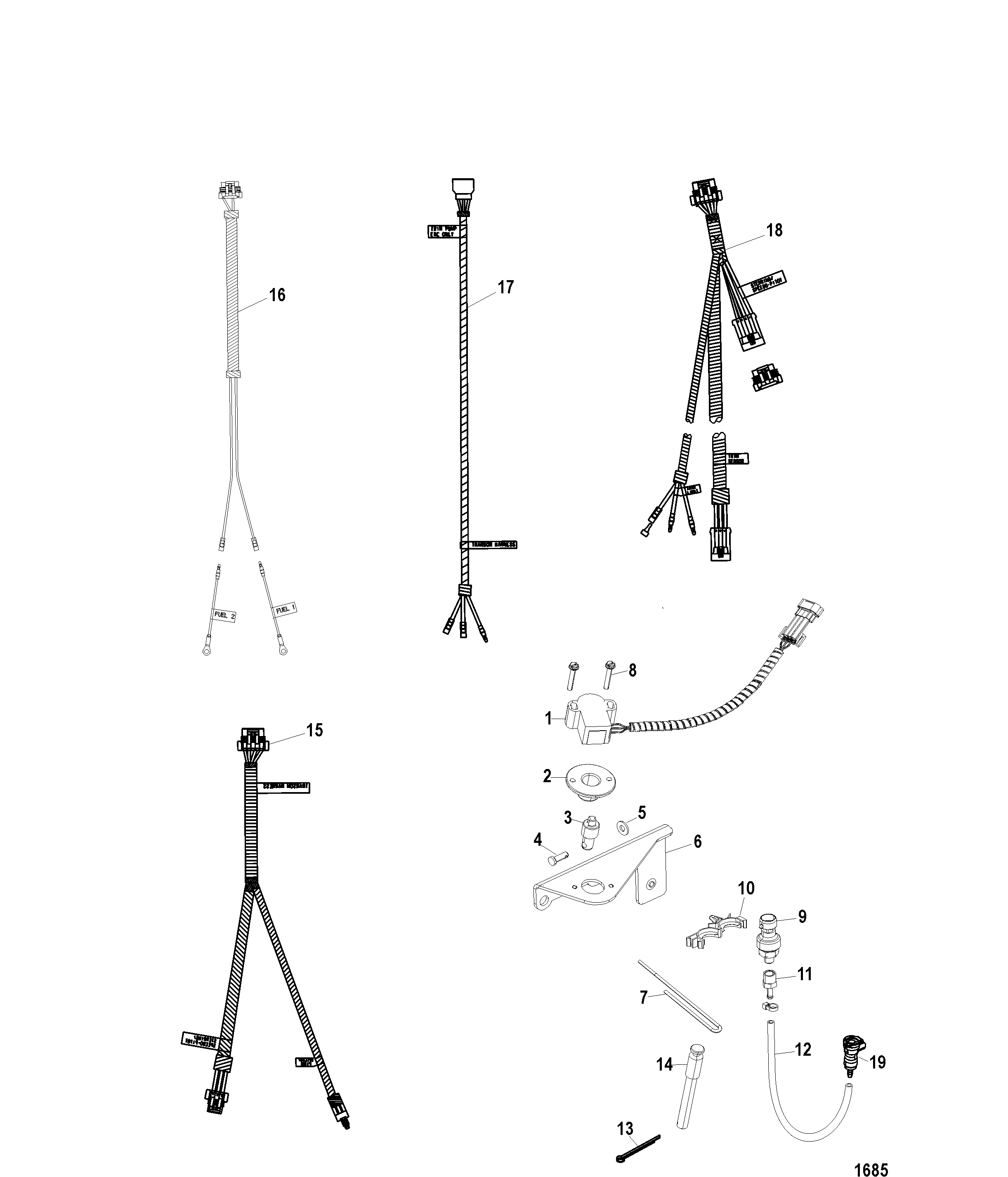

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Closed Cooling System
- Cool Fuel System
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow and Riser
- Flywheel Housing
- Fuel Filter and Boost Pump
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Power Steering
- Raw Water Cooling System
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle and Shift)
- Shift Bracket, Mechanical Shift (0W029410 and Below)
- Shift Bracket, Mechanical Shift (0W029411 and Up)
- Smart Craft Sensor and Harnesses
- Starter and Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 863188A3 | SENSOR KIT, Steering | 1 | (Digital Throttle Shift) | |||||
| - | 863188A3 | SENSOR ASSEMBLY, Steering- pitot | 1 | 863188A1 | |||||
| 1 | 863188T | SENSOR, Steering | 1 | ||||||
| 2 | 863175 | ADAPTOR, Sensor | 1 | ||||||
| 3 | 863174 | DRIVER | 1 | ||||||
| 4 | 17-863176 | PIN | 1 | ||||||
| 5 | 12-35044 | WASHER, (.281 x .625 x .065) Stainless Steel | 1 | ||||||
| 6 | 863178 | BRACKET | 1 | ||||||
| 7 | 863177 | GUIDE | 1 | ||||||
| 8 | 10-812987 | SCREW, (#10-24 x 1.250) | 2 | ||||||
| 9 | 881879T11 | SENSOR, (0 - 100 PSI), Pressure (Pitot) | 1 | 881879A6 | |||||
| 10 | 54-883066 | CLIP, (.865) | 1 | ||||||
| 11 | 22-856594 | FITTING, Barbed | 1 | ||||||
| 12 | 32-5495025 | HOSE | 1 | 32-549507 | |||||
| 13 | 18-46950 | COTTER PIN | 1 | ||||||
| 14 | 17-863179 | PIN, Clevis | 1 | ||||||
| 15 | 84-863736T | HARNESS ASSEMBLY (Steering Sensor and Speed Pitot) | 1 | ||||||
| 16 | 84-864218 | HARNESS ASSEMBLY (Fuel Tank) | 1 | ||||||
| 17 | 84-863735 | HARNESS ASSEMBLY (Trim Pump) | 1 | ||||||
| 18 | 84-863739T1 | HARNESS ASSEMBLY (10 PIN Transom Harness) | 1 | ||||||
| 19 | 22-865417 | FITTING, Female Quick Connect | 1 | SN# 0M660000 & Up |
