496 Mag HO Model - Serial 0M687144 Thru 0W059999 - Gasket Set Components (27-883231A1), Engine

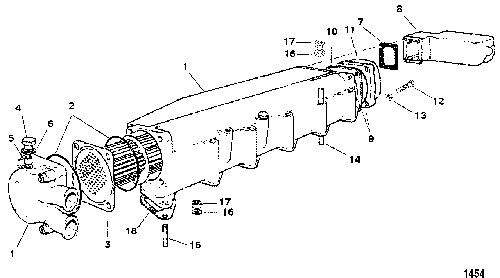

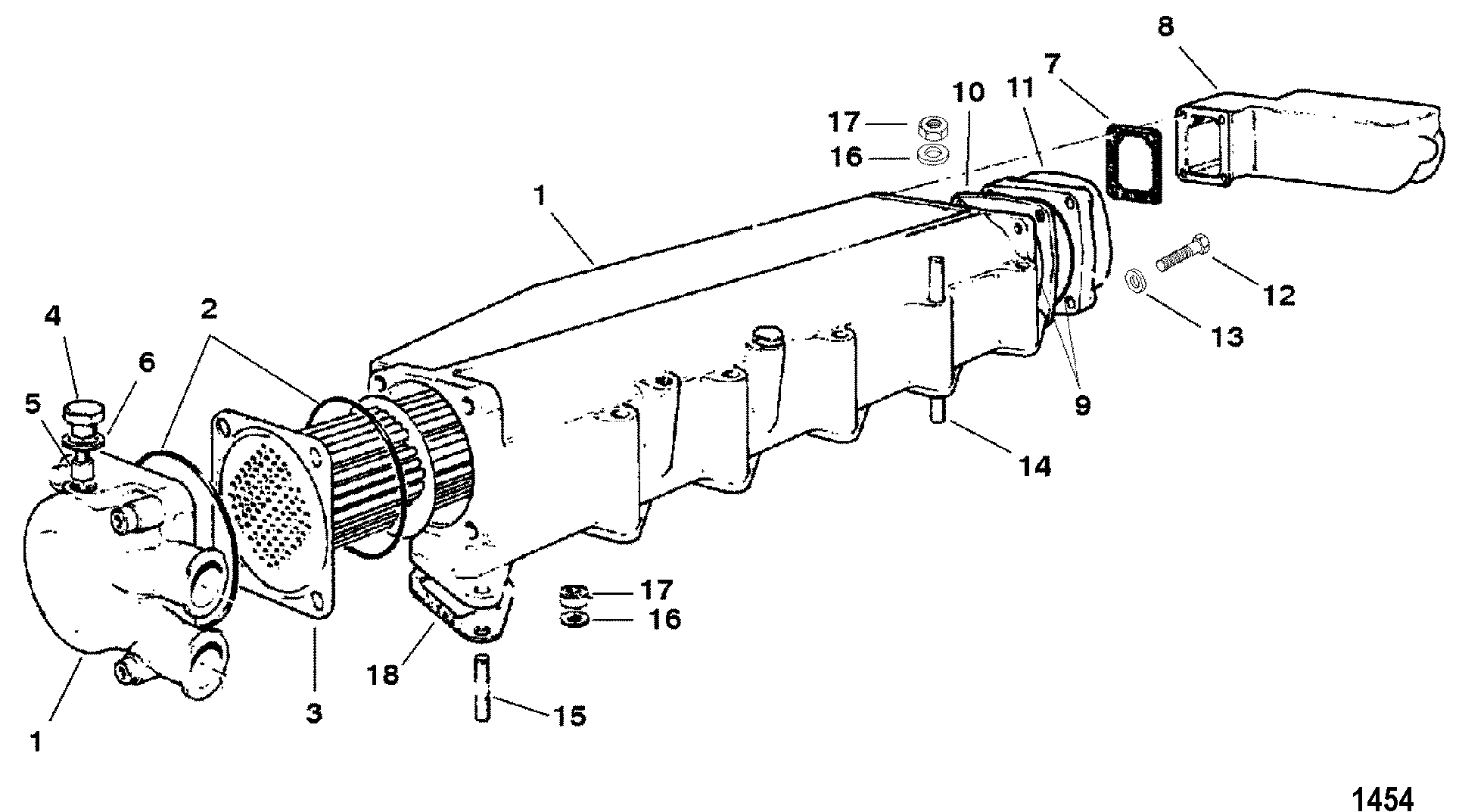

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Closed Cooling System
- Cool Fuel System
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow and Riser
- Flywheel Housing
- Fuel Filter and Boost Pump
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Power Steering
- Raw Water Cooling System
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle and Shift)
- Shift Bracket, Mechanical Shift (0W029410 and Below)
- Shift Bracket, Mechanical Shift (0W029411 and Up)
- Smart Craft Sensor and Harnesses
- Starter and Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 27-883231A1 | GASKET SET, Engine | 1 | ||||||
| - | 25-32509 | O-RING, (.489 x .070) | 4 | ||||||
| - | 25-8071341 | SEAL | 1 | ||||||
| - | 26-42077 | SEAL | 2 | ||||||
| - | 26-861947 | SEAL | 1 | ||||||
| - | 26-865066 | SEAL, Heat Exchanger to Crossover | 2 | ||||||
| - | 26-862957 | SEAL, Oil Filter Adaptor | 1 | ||||||
| - | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 2 | ||||
| - | 27-863112 | GASKET, Idle Air Valve | 1 | ||||||
| - | 27-863215 | GASKET, Throttle Body | 2 | ||||||
| - | 27-863285 | GASKET, Air Valve | 1 | ||||||
| - | 27-881620001 | GASKET, Cylinder Head to Crossover | 2 | ||||||
| - | 27-46820 | 676-9-61400 | 700-33760 | GASKET, Exhaust Manifold to Cylinder Head | 2 |
