496 Mag HO Model - Serial 0M687144 Thru 0W059999 - Exhaust Manifold, Elbow and Riser

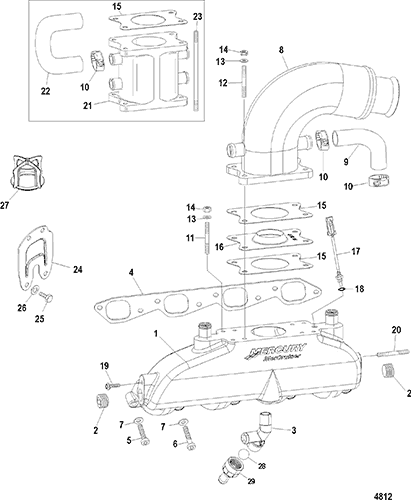

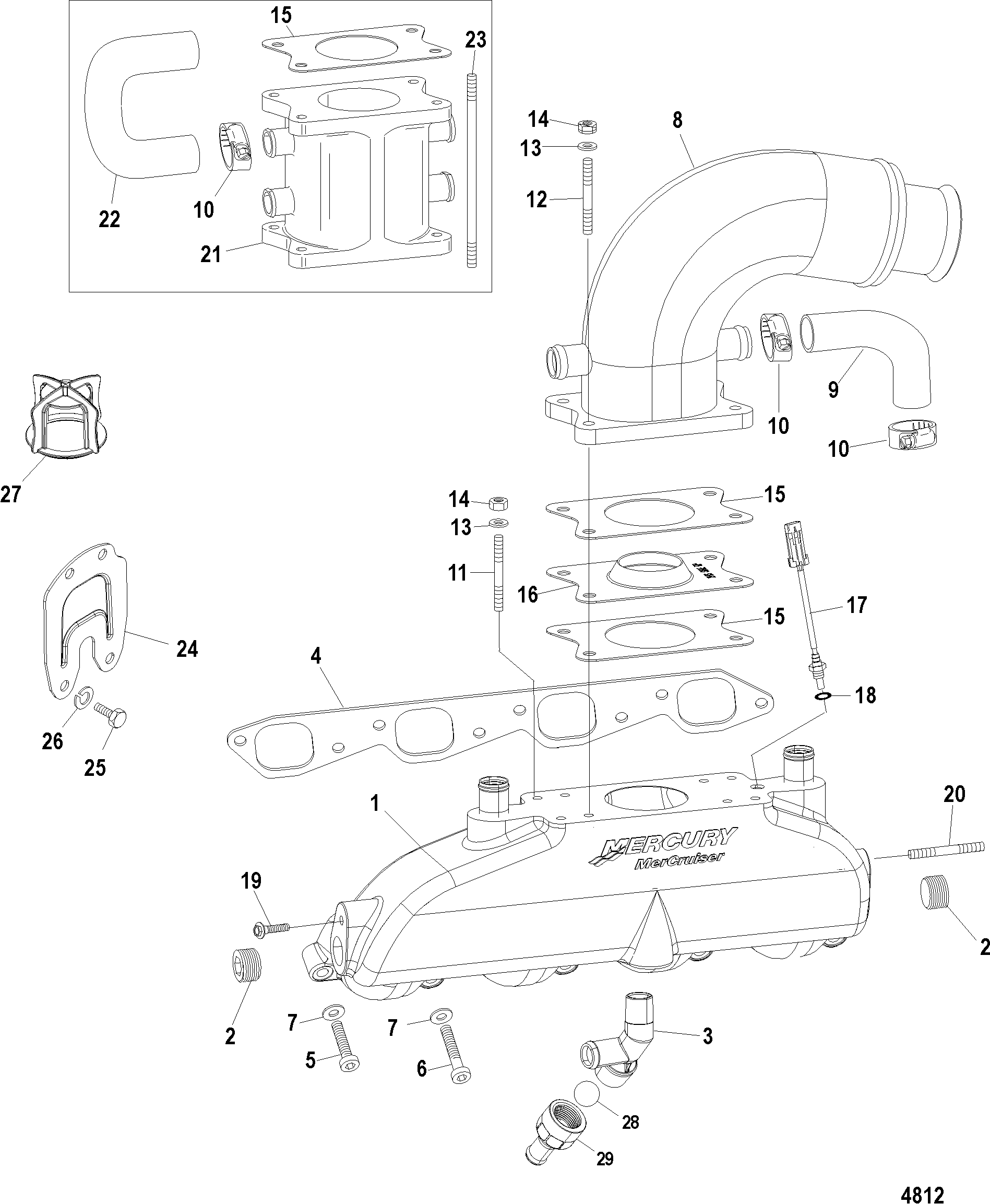

Section Drawing: (Hover or click to view larger)

Untitled Document

Ref.	OEM Part #	SEI #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	866178T01					MANIFOLD ASSEMBLY, Exhaust	2	863127T1
2	22-428611	602-98-102-57				FITTING, Pipe - Brass (.750-14)	2
3	22-864183					FITTING, Port Exhaust Manifold	1		This Part is No Longer Available
3	22-864184					FITTING, Starboard Exhaust Manifold	1
4	27-46820		676-9-61400	700-33760		GASKET, Exhaust Manifold to Cylinder Head	2		2,3
5	10-4008935					SCREW, (M8 x 35) Stainless Steel	8
6	10-4008970					SCREW, (M8 x 70) Stainless Steel	8
7	12-12038					WASHER	16
8	865331A02					ELBOW, Exhaust	2	865331A01	(Standard Rise)
8	865332A02					ELBOW, Exhaust	2	865332A01	(2 Inch Rise)
9	32-863095					HOSE, Elbow to Manifold	4
10	54-815504216					CLAMP, Worm Gear (1.56 Diameter), Hose	8
11	16-8204511					STUD, (M8 x 55)	3
12	16-424632					STUD, (M8 x 37.1)	9
13	12-12038					WASHER	8
14	11-4002030					NUT, (M8)	8
15	27-862356					GASKET, Elbow to Manifold	4
16	8M2000433					TURBULATOR, Exhaust	2	863122
17	889575					SENSOR ASSEMBLY, Temperature	2	858535
18	25-627021					O-RING, (.301 x .070)	1
19	10-4010716					SCREW, (M8 x 16)	1
20	16-424632					STUD, (M8 x 37.1)	1
21	866768T					RISER, (6 Inch)	2	863124T
22	32-863102					HOSE	4
23	16-863121					STUD, (M8 x 194)	8
NS	19-8079923					COVER, Hose Clamp End	8
24	861776A2					PLATE KIT, Exhaust Block Off	1
25	10-98794	602-98-102-35	676-9-78129	700-28300	525-10-98794	SCREW, (.375-16 x 1.00)	4
26	13-41471					LOCKWASHER, (.375)	4
27	860222A1					RESONATOR, Exhaust	1
28	30-863129					BALL, Check	2
29	864182T					CONNECTOR	2	864182
