Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

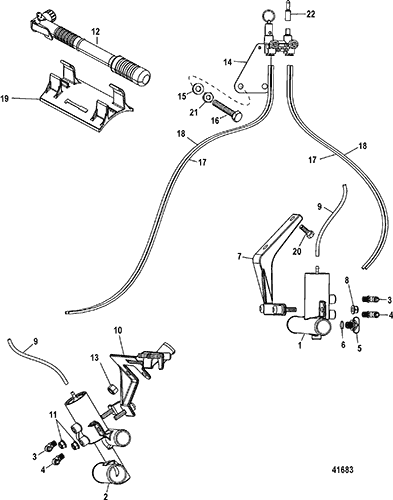

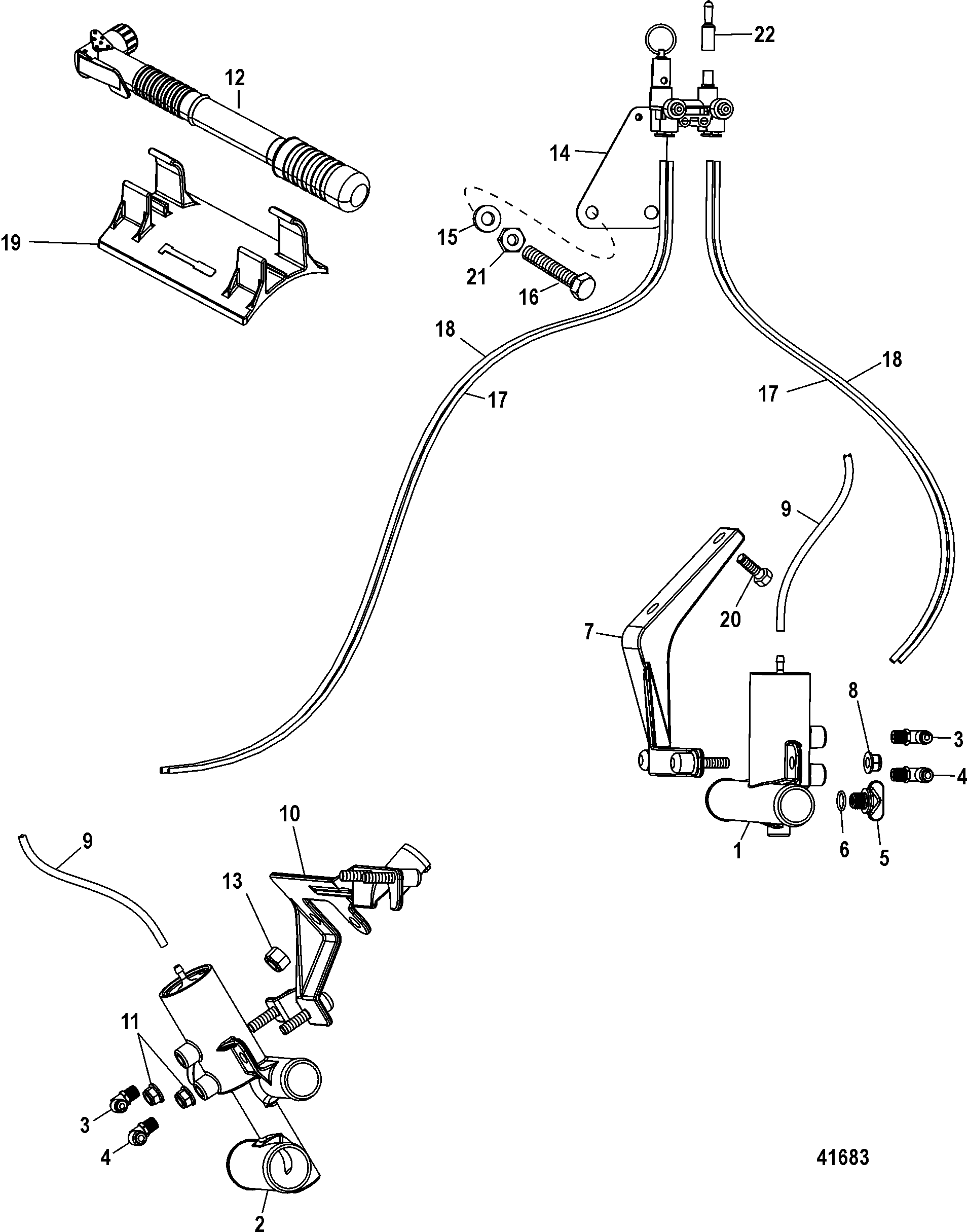

1 |
863717A2 |
|
|
|
|
ACTUATOR ASSEMBLY, Water Drain |
1 |
|
(Port) |
2 |
863716A2 |
|
|
|
|
ACTUATOR ASSEMBLY, Water Drain |
1 |
|
(Starboard) |
3 |
22-863068 |
|
|
|
|
FITTING, Orange (90 Degree), Air |
1 |
|
|
3 |
22-863719 |
|
|
|
|
FITTING, Orange - Straight, Air |
1/2 |
|
|
4 |
22-863024 |
|
|
|
|
FITTING, Gray (90 Degree), Air |
1 |
|
|
4 |
22-863718 |
|
|
|
|
FITTING, Gray - Straight, Air |
1/2 |
|
|
5 |
22-806608A02 |
|
|
|
|
PLUG KIT, (.500-13) Royal Blue |
1 |
22-806608A1 |
|
6 |
25-32509 |
|
|
|
|
O-RING, (.489 x .070) |
1 |
|
2,3 |
7 |
863863T |
|
|
|
|
BRACKET, Actuator Mounting |
1 |
|
(Port) |
8 |
11-826365 |
|
|
|
|
NUT, (M8), Nylock |
4 |
|
|
9 |
32-8630561 |
|
|
|
|
HOSE, (42.00 Inches Bulk) Black, Air |
2 |
|
|
10 |
863862T |
|
|
|
|
BRACKET, Actuator/Pump Mounting |
1 |
863035T |
(Starboard) |
11 |
11-826292 |
|
|
|
|
NUT, (M10) Brass/Nickel Plated, Nylock |
2 |
|
|
12 |
863057 |
|
|
|
|
PUMP, Air |
1 |
|
|
13 |
11-826292 |
|
|
|
|
NUT, (M10) Brass/Nickel Plated |
2 |
|
|
14 |
862969A2 |
|
|
|
|
MANIFOLD ASSEMBLY, Air |
1 |
|
|
15 |
12-4002314 |
|
|
|
|
WASHER |
2 |
|
|
16 |
864887 |
|
|
|
|
SCREW, (M5) |
2 |
|
|
17 |
32-8M0062605 |
|
|
|
|
HOSE, (40.00 Inches Bulk) Green |
2 |
32-8630552 |
(Starboard 40 in.)(Cut Port Hose To 23 In.) |
18 |
32-8M0062601 |
|
|
|
|
HOSE, (40.00 Inches Bulk) Grey |
2 |
32-8630542 |
(Starboard 40 in.)(Cut Port Hose To 23 In.) |
19 |
863059 |
|
|
|
|
BRACKET, Air Pump |
1 |
|
|
20 |
10-4000374 |
|
|
|
|
SCREW, (M10 x 16) |
2 |
|
|
21 |
11-826292 |
|
|
|
|
NUT, (M10) Brass/Nickel Plated |
2 |
|
|
22 |
19-883503 |
|
|
|
|
CAP, Service Point |
1 |
|
|
