7.4L Bravo (Gen 4) GM 454 V-8 1988-1991 - Serial 0B771113 Thru 0D603117 - Engine Mounting (Cast Bracket)

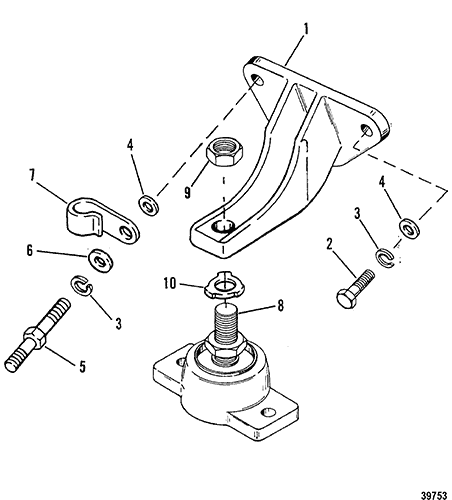

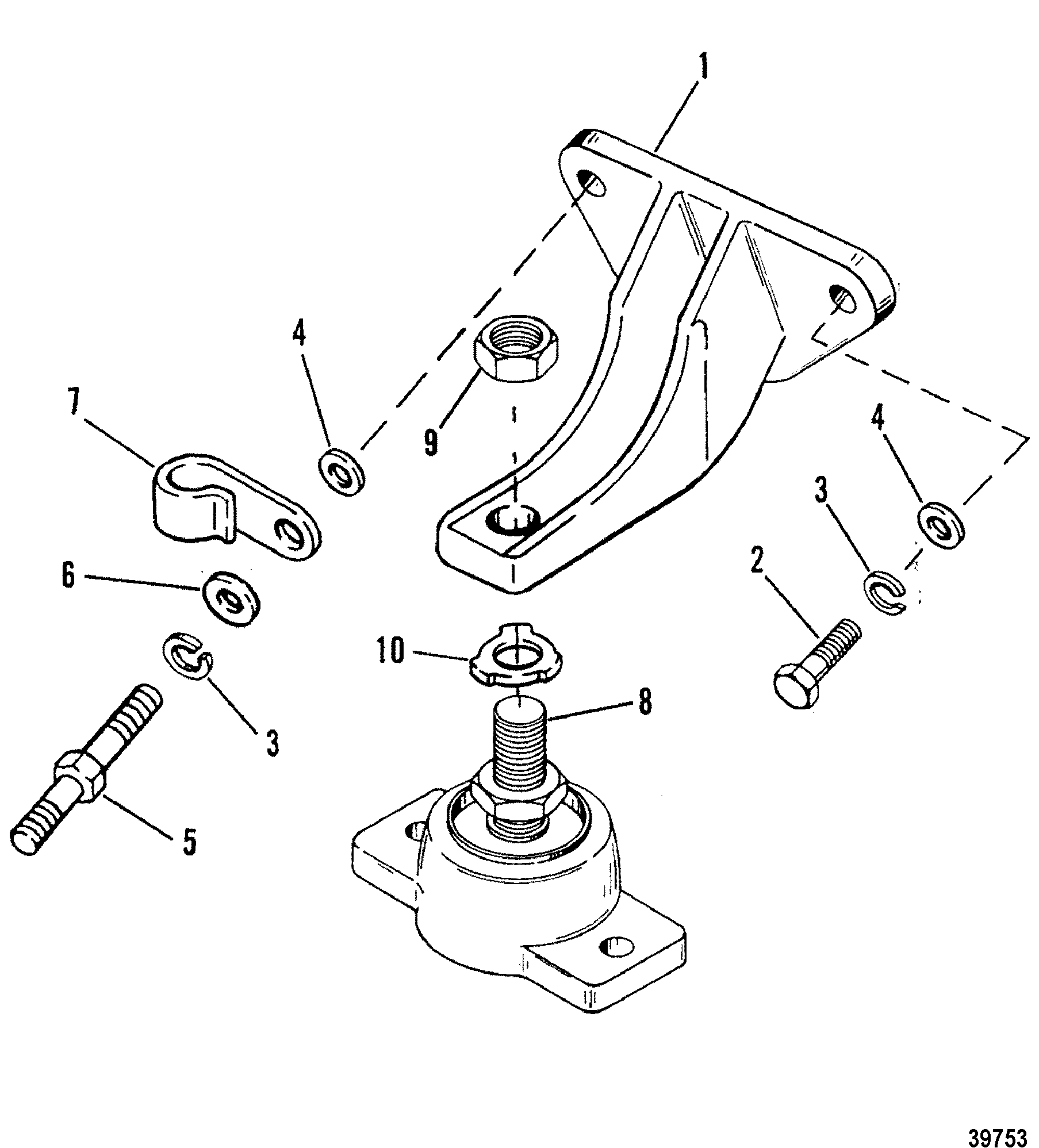

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola #8MR2039K)
- Alternator (Prestolite #8EM2003KA)
- Audio Warning System
- Carburetor
- Carburetor and Linkage
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker / Valve Cover
- Distributor and Ignition Components
- Engine Mounting (Cast Bracket)
- Exhaust Manifold and Elbow / Riser (Cast Iron)
- Exhaust Plate
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Filter and Adapter
- Oil Pan & Oil Pump (Cast Pan)
- Oil Pan & Oil Pump (Stamped Pan)
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter and Alternator
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Wire Harness, Electrical and Ignition
| Ref # | Current Part Number | Description | Superceded From | Status | Quantity Used |
| 1 | 79550A1 | BRACKET, MOUNTING - ENGINE (FRONT) | ACT | 2 | |
| 2 | 68101 | SCREW, (.375-16 x 1.375), BRACKET TO ENGINE | ACT | 2 | |
| 2 | 358701 | BOLT, BRACKET TO ENGINE (2") | 64900 | SS/ACT | 1 |
| 2 | 68101 | SCREW, (.375-16 x 1.375), BRACKET TO ENGINE | ACT | 2 | |
| 3 | 35048 | LOCKWASHER, (.375), BRACKET STUD | ACT | 2 | |
| 3 | 35048 | LOCKWASHER, (.375), BRACKET SCREW/STUD | ACT | 2 | |
| 4 | 46132 | WASHER, BRACKET SCREW | ACT | 2 | |
| 4 | 46132 | WASHER, BRACKET SCREW | ACT | 2 | |
| 5 | 861316 | STUD, (.375-16 x 2.750) Special, BRACKET TO ENGINE | 64066 | SS/ACT | 1 |
| 6 | 46132 | WASHER, BRACKET STUD | ACT | 1 | |
| 7 | 78945 | J CLAMP, Harness Support | ACT | 1 | |
| 8 | 814263A1 | BASE ASSEMBLY, ENGINE MOUNT | ACT | 2 | |
| 9 | 859126 | --NUT, JAM - ENGINE MOUNT BASE | 49252 | SS/ACT | 4 |
| 10 | 12657 | TAB WASHER | ACT | 2 |
