7.4L Bravo (Gen 4) GM 454 V-8 1988-1991 - Serial 0B771113 Thru 0D603117 - Flywheel Housing

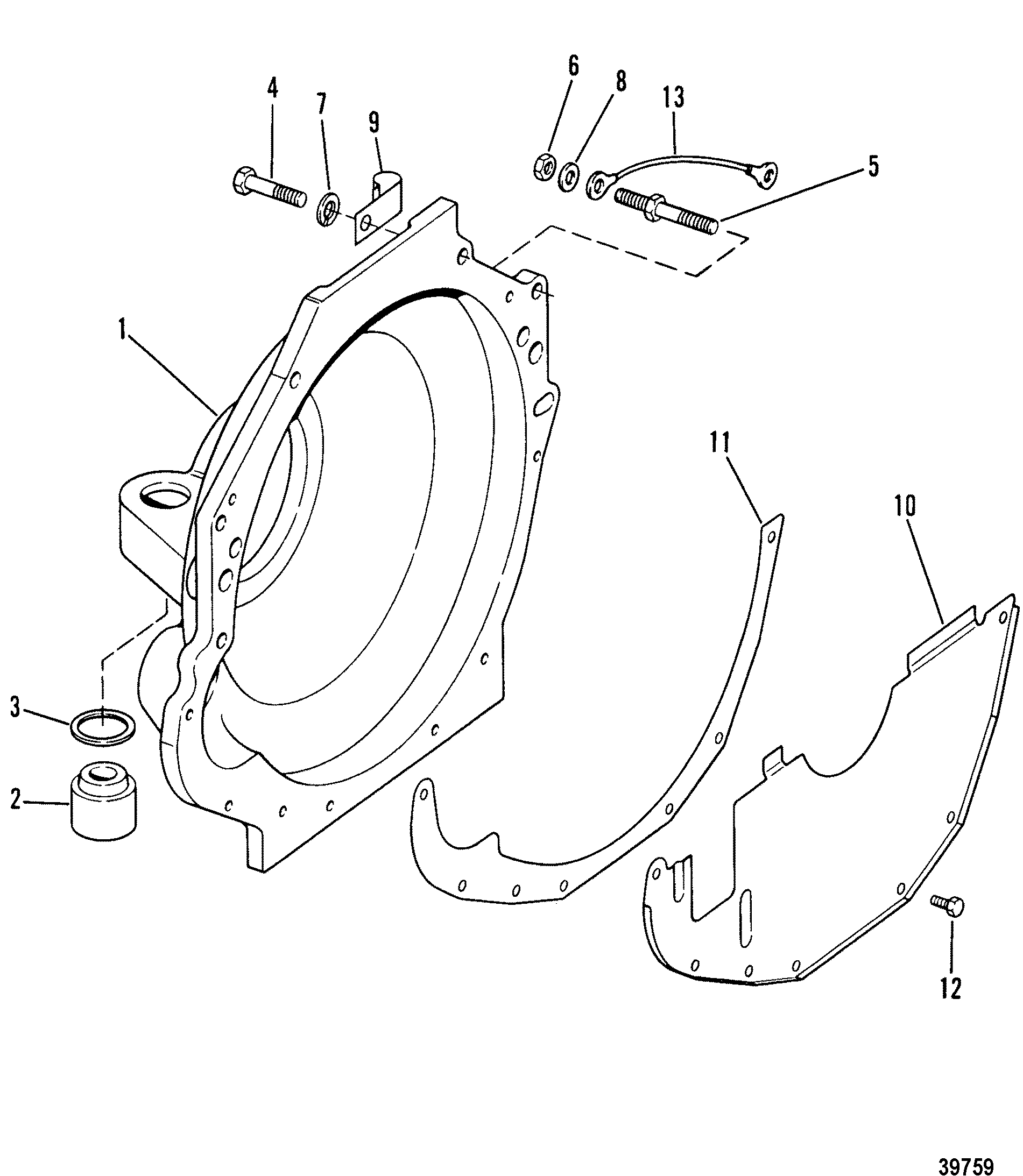

Section Drawing: (Hover or click to view larger)

Ref # Current Part Number Description Superceded From Status Quantity Used
1 865657A04 HOUSING ASSEMBLY, Flywheel 12675A7 SS/ACT 1
2 865330A02 --MOUNT, RUBBER - FLYWHEEL HOUSING 88791 SS/ACT 2
3 99322 --SPACER, RUBBER MOUNT - FLYWHEEL HOUSING
ACT 2
4 37612 SCREW, (.375-16 x 1.250), FLYWHEEL HOUSING ATTACHING
ACT 4
4 358701 BOLT, FLYWHEEL HOUSING ATTACHING (2") 64900 SS/ACT 1
5 861316 STUD, (.375-16 x 2.750) Special, FLYWHEEL HOUSING ATTACHING 64066 SS/ACT 1
6 32219 NUT, (.375-16), FLYWHEEL HOUSING ATTACHING STUD
ACT 1
7 35048 LOCKWASHER, (.375), FLYWHEEL HOUSING SCREW
ACT 7
8 20572 WASHER, (.390 x .750 x .093), FLYWHEEL HOUSING SCREW - SPECIAL
ACT 1
9 78945 J CLAMP, Harness Support-FLYWHEEL HOUSING STUD
ACT 1
9 92850 CLAMP
ACT 2
10 13930A3 COVER (USE WITH 12" STARTER MOTOR)
NLA 1
10 807260A2 COVER ASSEMBLY (USE WITH 8" STARTER MOTOR) 812600A2 SS/ACT 1
11 96274 --GASKET, FLYWHEEL HOUSING SCREW
NLA 1
12 32773 SCREW, (.250-20 x .875), COVER TO FLYWHEEL HOUSING
ACT 7
13 62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black, FLYWHEEL HOUSING STUD 62826A6 SS/ACT 1
