7.4L Bravo (Gen 4) GM 454 V-8 1988-1991 - Serial 0B771113 Thru 0D603117 - Power Steering Components

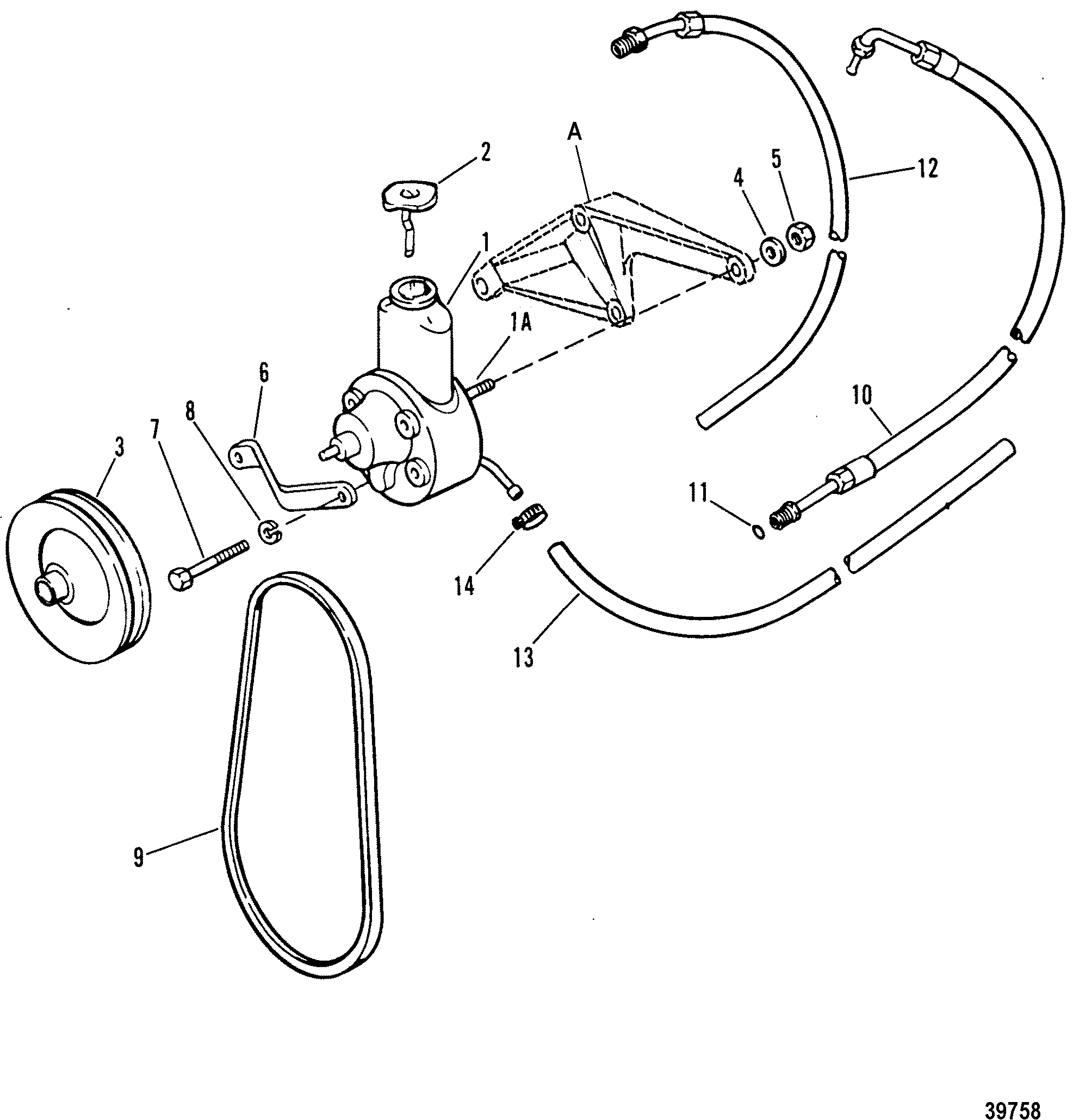

Section Drawing: (Hover or click to view larger)

Ref # Current Part Number Description Superceded From Status Quantity Used






1 16792A39 PUMP ASSEMBLY, POWER STEERING 16792A1 SS/ACT 1
1A 41877 --STUD, (M10), POWER STEERING PUMP
NLA 2
2 95805 --CAP, POWER STEERING PUMP
ACT 1
3 73873A1 --PULLEY, POWER STEERING PUMP
ACT 1
4 72057 SPACER, (1.00 Outside Diameter x .125 x Thick), PUMP STUD
ACT 2
5 90517 NUT, (M10), MOUNTING STUD
ACT 2
6 98813F1 BRACE, PUMP MOUNTING 98813A1 SS/ACT 1
7 40001189 SCREW, (M10 x 20), PUMP MOUNTING BRACE 40001188 SS/ACT 1
8 400248 LOCKWASHER, (M10), BRACE SCREW
ACT 1
9 13458Q V BELT (USE WITH 5-1/2" O.D. W.P. PULLEY) 13458T SS/ACT 1
9 812427Q V BELT (USE WITH 7" O.D. W.P. PULLEY) 812427T SS/ACT 1
10 90494 HOSE, PRESSURE (FITTINGS ON BOTH ENDS)
ACT 1
11 89879 --O-RING, (.301 x .064), PRESSURE HOSE END
ACT 1
12 9884339 HOSE ASSEMBLY, (72.00 Inches Bulk), RETURN (FITTINGS ON ONE END)
ACT 1
13 8M0062341 HOSE, (53.00 Inches Bulk), PUMP TO OIL COOLER 5251914 SS/ACT 1
14 815504206 CLAMP, HOSE ATTACHING 35830 SS/ACT 3
