7.4L Bravo (Gen 4) GM 454 V-8 1988-1991 - Serial 0B771113 Thru 0D603117 - Oil Filter and Adapter

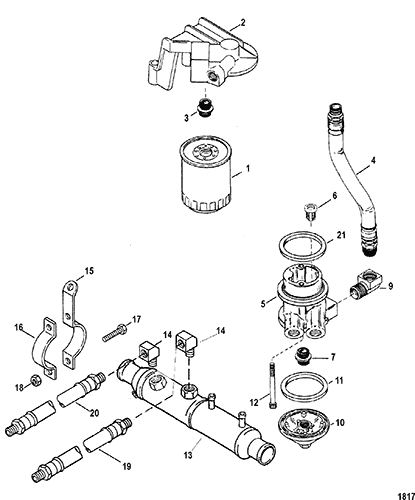

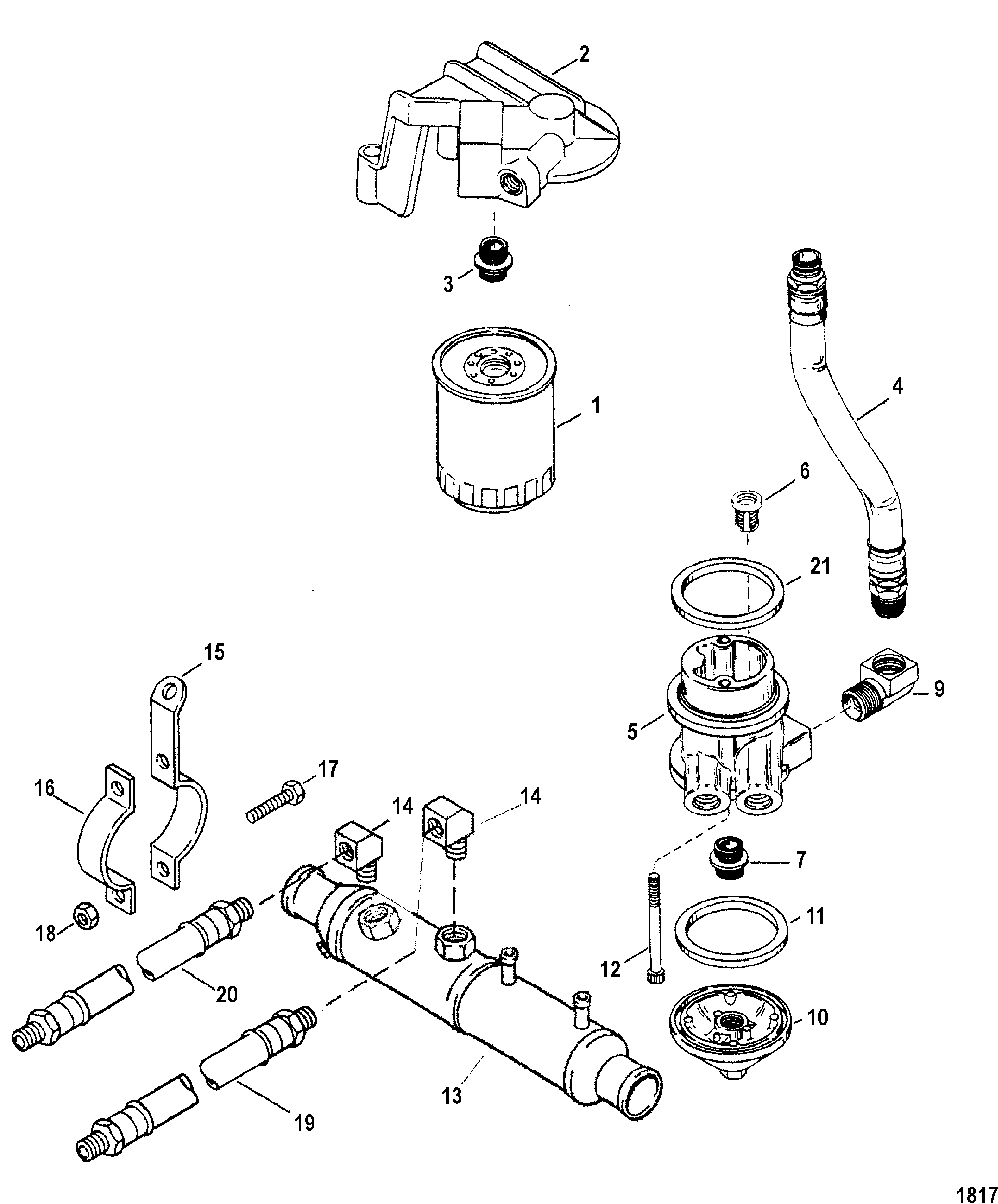

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola #8MR2039K)
- Alternator (Prestolite #8EM2003KA)
- Audio Warning System
- Carburetor
- Carburetor and Linkage
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker / Valve Cover
- Distributor and Ignition Components
- Engine Mounting (Cast Bracket)
- Exhaust Manifold and Elbow / Riser (Cast Iron)
- Exhaust Plate
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Filter and Adapter
- Oil Pan & Oil Pump (Cast Pan)
- Oil Pan & Oil Pump (Stamped Pan)
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter and Alternator
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Wire Harness, Electrical and Ignition
| Ref # | Current Part Number |
Description | Superceded From | Status | Quantity Used |
| 1 | 866340Q03 | FILTER, Oil | 14957 | SS/ACT | 1 |
| 2 | 44393A2 | BRACKET ASSEMBLY, OLD DESIGN | NLA | 1 | |
| 2 | 814420A5 | BRACKET, NEW DESIGN | ACT | 1 | |
| 2 | 817403A4 | BRACKET ASSEMBLY | 817403A2 | SS/NLA | 1 |
| 3 | 805632 | --CONNECTOR (1-12 THREAD) OLD DESIGN | 32720 | SS/ACT | 1 |
| 3 | 814822 | --FITTING (13/16-16 THREAD) NEW DESIGN | ACT | 1 | |
| 3 | 814822 | --FITTING | ACT | 1 | |
| 4 | 9235761 | HOSE, (36.00 Inches Bulk) | ACT | 1 | |
| 5 | 8M0099241 | ADAPTER ASSEMBLY | 90783A22 | SS/NLA | 1 |
| 6 | 99889 | --VALVE | ACT | 1 | |
| 7 | 805632 | --CONNECTOR | 32720 | SS/ACT | 1 |
| 9 | 63825 | ELBOW | ACT | 1 | |
| 10 | 8M0104033 | COVER | 91830 | SS/ACT | 1 |
| 11 | 91892 | GASKET | ACT | 1 | |
| 12 | 91966 | SCREW, (.312-18 x 4.00) | NLA | 1 | |
| 12 | 91967 | SCREW, (.312-18 x 3.50) | NLA | 1 | |
| 13 | 89690T | COOLER, Oil | ACT | 1 | |
| 14 | 63825 | ELBOW (90 Degree) | ACT | 1 | |
| 14 | 48872 | FITTING, 45 Degree Elbow (With Power Steering) | ACT | 1 | |
| 15 | 63820T | BRACKET (LONG) | 638201 | SS/ACT | 1 |
| 16 | 56328A1 | BRACKET (SHORT) | ACT | 1 | |
| 17 | 60300 | SCREW, (.250-28 x .750) | ACT | 2 | |
| 18 | 30506 | NUT, (.250-28) | ACT | 2 | |
| 19 | 9235769 | HOSE (44 Inches) | ACT | 1 | |
| 20 | 9235715 | HOSE, (8.50 Inches) | ACT | 1 | |
| 21 | 91892 | GASKET | ACT | 1 |
