7.4L Bravo (Gen 4) GM 454 V-8 1988-1991 - Serial 0B771113 Thru 0D603117 - Starter and Alternator

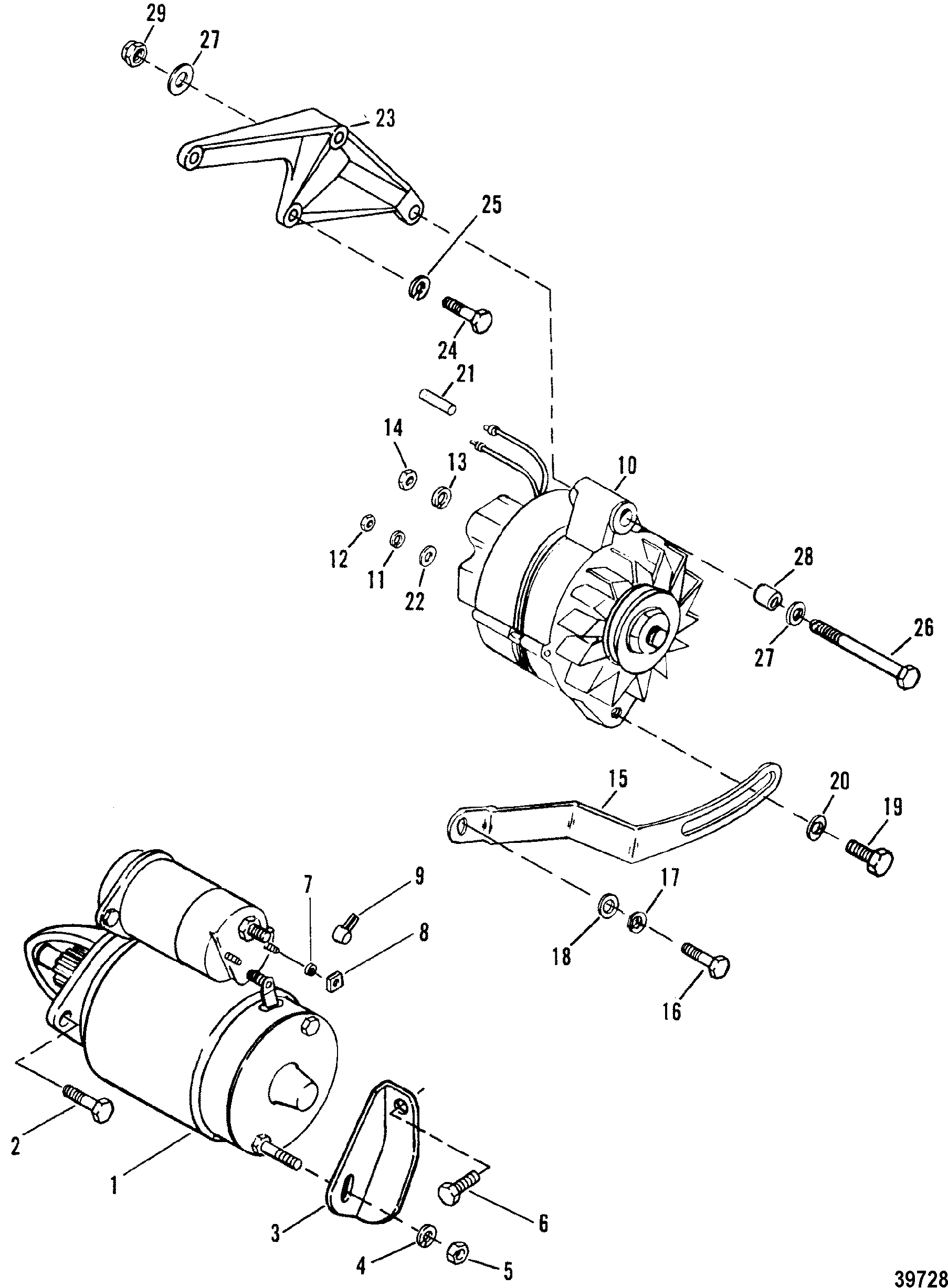

Section Drawing: (Hover or click to view larger)

Ref # Current Part Number Description Superceded From Status Quantity Used
1 863007A1 STARTER MOTOR ASSEMBLY
ACT 1
1 863007A1 STARTER MOTOR ASSEMBLY 812428A3 SS/ACT 1
2 94435001 BOLT, (.375-16 x 4.600) 94435 SS/ACT 2
2 8053432 SCREW 813642 SS/ACT 2
3 89057 BRACE
NLA 1
4 8M0204649 WASHER, (.281 x .500 x .060) Stainless Steel
ACT 2
5 8267088 NUT, (.250-20), BATTERY TERMINAL 72008 SS/ACT 1
5 15874 NUT, (M10), BATTERY TERMINAL
ACT 1
6 35765A1 SCREW AND LOCKWASHER, (.312-18 x .625), BRACE TO ENGINE
ACT 1
7 26995 LOCKWASHER, (#8) Stainless Steel, STARTER TERMINAL
ACT 2
8 26419 NUT, (#8-32) Brass, STARTER SWITCH TERMINAL
ACT 1
8 400211 NUT, (M5) Stainless Steel, STARTER SWITCH TERMINAL
ACT 2
9 79695T BOOT, Insulator - Black, STARTER TERMINAL 79695 SS/ACT 1
10 817119A4 ALTERNATOR ASSEMBLY, (55 Ampere) 92497A3 SS/ACT 1
11 26996 LOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINAL
ACT 1
12 79989 NUT, (#10-24) Stainless Steel
ACT 1
13 26992 LOCKWASHER, (.250) Stainless Steel, ALTERNATOR TERMINAL
ACT 1
14 64015 NUT, (.250-20), ALTERNATOR TERMINAL
ACT 1
15 85013T BRACE, ALTERNATOR ADJUSTING
ACT 1
16 47462 SCREW, (.437-14 x 1.250), ALTERNATOR BRACE
ACT 1
17 32993 LOCKWASHER, (.437), ALTERNATOR BRACE SCREW
ACT 1
18 31263 WASHER, ALTERNATOR BRACE SCREW
ACT 1
19 29198 SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE
ACT 1
20 26168 WASHER, ALTERNATOR BRACE SCREW
ACT 1
21 5790811 SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS
ACT 2
22 96457 WASHER, Phenolic (.27 x .81 x .062), ALTERNATOR TERMINAL
ACT 1
23 806394A1 BRACKET, ALTERNATOR 96116A1 SS/ACT 1
24 37612 SCREW, (.375-16 x 1.250), ALTERNATOR BRACKET
ACT 1
24 34354 SCREW, (.375-16 x 1.50), ALTERNATOR BRACKET
ACT 2
25 35048 LOCKWASHER, (.375), ALTERNATOR BRACKET SCREW
ACT 3
26 48308 SCREW, (.375-24 x 3.750), ALTERNATOR
ACT 1
27 20553 WASHER, (.406 x .734 x .063), ALTERNATOR BRACKET SCREW
ACT 2
28 33186 BUSHING, ALTERNATOR BRACKET SCREW
ACT 1
29 23161 NUT, (.375-24), ALTERNATOR BRACKET SCREW
ACT 1
