7.4L Bravo (Gen 4) GM 454 V-8 1988-1991 - Serial 0B771113 Thru 0D603117 - Shift Bracket

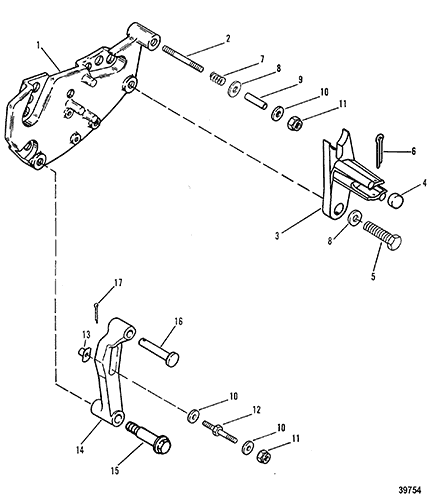

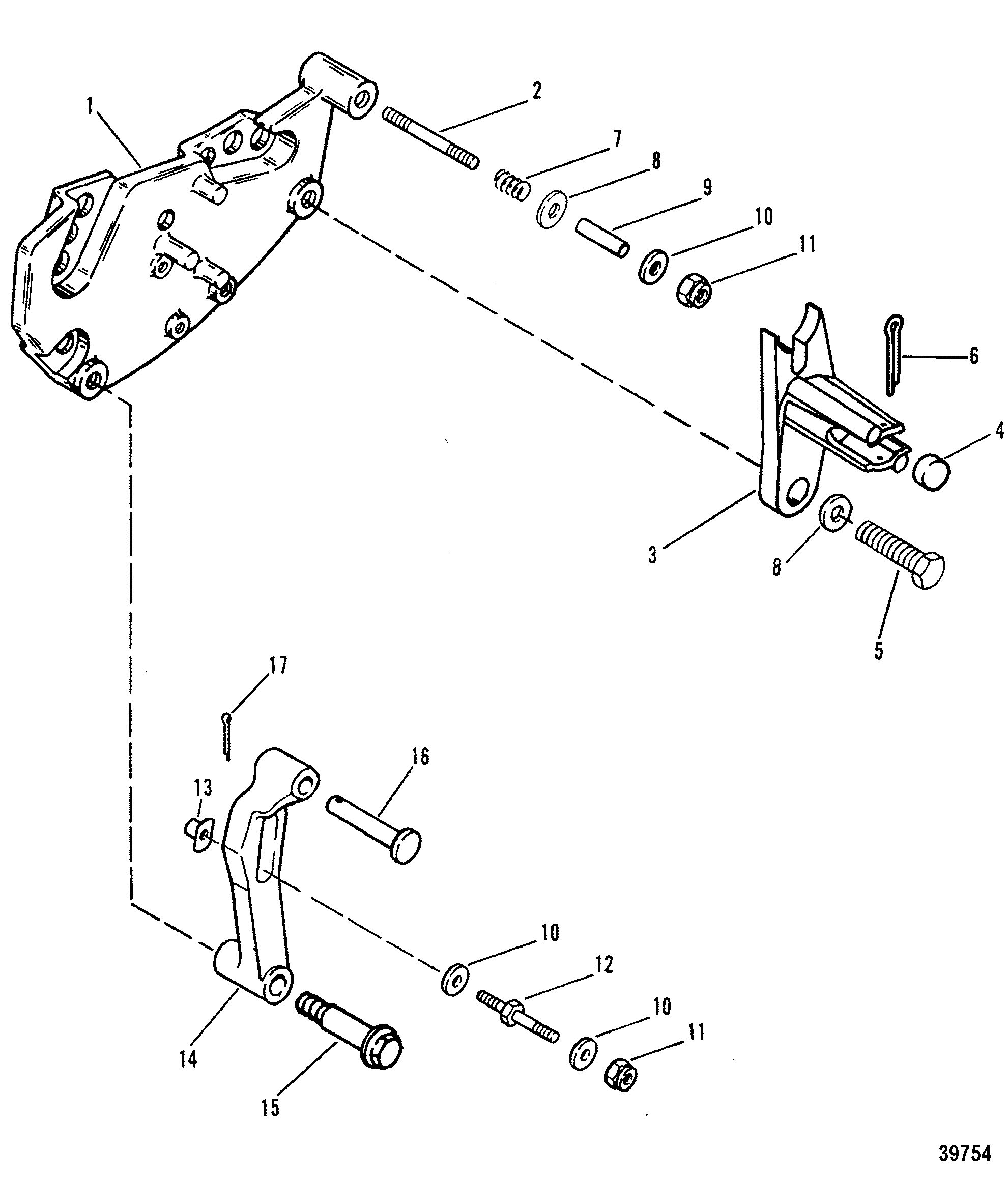

Section Drawing: (Hover or click to view larger)

Ref # Current Part Number Description Superceded From Status Quantity Used






1 807962A15 BRACKET ASSEMBLY 99237A10 SS/ACT 1
2 865154A02 --STUD 98798 SS/ACT 1
3 865434A02 RETAINER 123811 SS/ACT 1
4 98828 SPACER
ACT 1
5 53167T SCREW, (.312-18 x .880)
ACT 1
6 328571 COTTER PIN 32857 SS/ACT 1
7 98880 SPRING
ACT 1
8 56720 WASHER, (.330 x .750 x .060) Stainless Steel
ACT 2
9 865154A02 SPACER 98820 SS/ACT 1
10 35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
ACT 4
11 8267119 NUT, (.250-28) 13438 SS/ACT 2
12 8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor 96112 SS/ACT 1
13 63341 TEE NUT
ACT 1
14 863911A12 LEVER 138981 SS/ACT 1
15 865148 SCREW, (.312-18 x 1.843), Shoulder
ACT 1
16 68402 PIN, (.250 x 1.13)
ACT 1
17 210711 COTTER PIN 21071 SS/ACT 1
