525 EFI - Serial 0M953620 Thru 0M956326 - Engine Components (Water Pump And Front Cover)

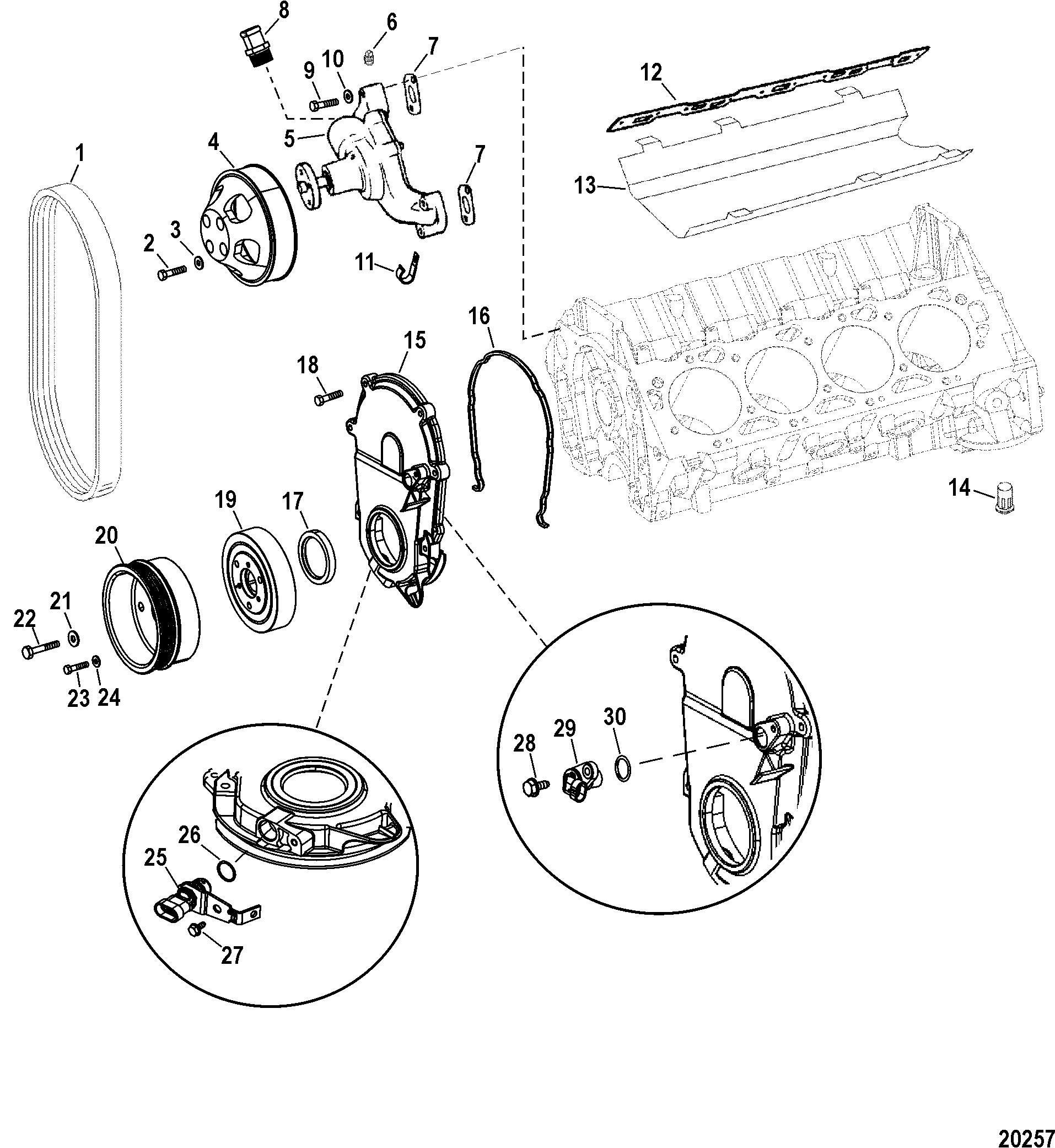

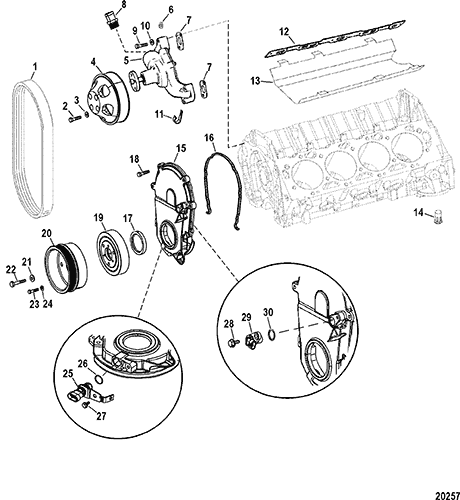

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 57-865615Q12



BELT, Serpentine (2266 mm) 1 57-865615012
2 10-849377



SCREW, (.312-24 x .750) Stainless Steel 4

3 12-70132



WASHER, (.323 x .563 x .063) Stainless Steel 4

4 842444T



PULLEY, Circulating Water Pump - Blue 1

5 811573A04



PUMP ASSEMBLY, Circulating Water 1 811573A03 5
6 22-845174



PLUG, (.500-14 x .610) Brass 1
5
7 27-49110



GASKET, Circulating Water Pump Mount 2
2,5
8 22-806242



CONNECTOR, Hose 1
5
9 10-822168



SCREW, (.375-16 x 1.750) Stainless Steel 1
5
9 10-842787



SCREW, (.375-16 x 2.00) Stainless Steel 2
5
10 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 3
5
11 54-78945



J CLAMP, Harness Support 1
5
12 27-843073



GASKET, Intake Manifold Mount 2
2,5
13 845756T



SHIELD, Oil Intake 1 816073 5
14



VALVE, Relief 1
5
15 842250T02



COVER ASSEMBLY, Cylinder Front - Black 1
5
16 27-850456



GASKET, Front Cover Mount 1
2,5
17 26-8219471



SEAL, Oil 1
2,5
18 10-F2030



SCREW, (.250-20 x 1.250) Stainless Steel 6
5
19 8M8021041



DAMPER 1 845625004 5
20 841957T



PULLEY, Crankshaft - Blue 1
5
21 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 3
5
22 10-8431471



SCREW, (.375-16 x 1.750) 3
5
23



SCREW, (.500-20 x 2.500) 1
5
24 12-8413901



WASHER, (.520 x 2.063 x .280) 1
5
25 864297T01



SENSOR ASSEMBLY, Crankshaft Position 1 864297001 5
26 25-885192



O-RING 1
2,5
27 10-41508



SCREW, (.250-20 x .500) Stainless Steel 1
5
28 10-901921



SCREW, (.250-20 x .750) Stainless Steel With Nylon Patch 1
5
29 8M0011986



SENSOR ASSEMBLY, Cam Position 1 880609001 5
30 NSS



NOT SOLD SEPARATE, O-Ring 1
This Part is not sold separately  5
- 27-843073A06



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
- 841178A05



PARTIAL ENGINE ASSEMBLY 1
