525 EFI - Serial 0M953620 Thru 0M956326 - Flywheel Housing (Driveline)

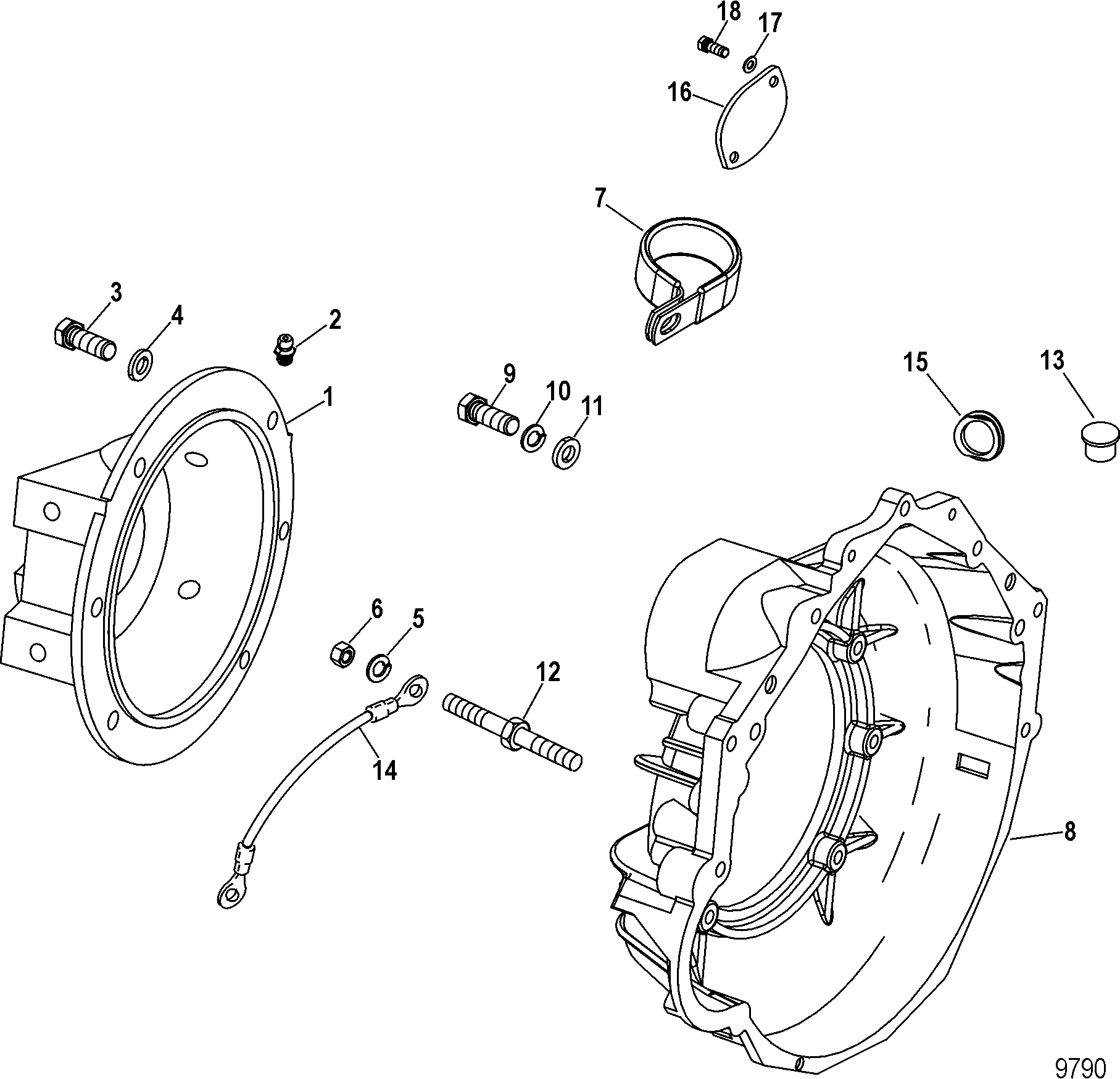

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 93911A4 | HOUSING ASSEMBLY, Shaft Extension Support | 1 | ||||||
| 2 | 22-74036 | FITTING, Grease | 1 | ||||||
| 3 | 10-90084 | 525-10-90084 | SCREW, (.437-14 x 1.500) | 6 | |||||
| 4 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 6 | |||||
| 5 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 2 | |||||
| 6 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 7 | 54-62494 | CLIP | 1 | ||||||
| 8 | 44187T | HOUSING, Flywheel | 1 | ||||||
| 9 | 10-35047 | SCREW, (.375-16 x 1.250) Stainless Steel | 2 | ||||||
| 9 | 10-58642 | SCREW, (.375-16 x 1.50) Stainless Steel | 1 | ||||||
| 9 | 10-68299 | SCREW, (.375-16 x 3.00) Stainless Steel | 2 | ||||||
| 10 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 2 | |||||
| 11 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel, For Slot | 6 | ||||||
| 12 | 16-64066 | STUD, (.375-16 x 2.750) Special | 2 | ||||||
| 13 | 19-38606 | CAPLUG, (#10) | 1 | ||||||
| 14 | 84-62826A6 | CABLE ASSEMBLY, Ground (13.00 Inches) Black | 1 | ||||||
| 14 | 84-62826A12 | CABLE ASSEMBLY, Ground (36.00 Inches) Black | 1 | ||||||
| 15 | 19-12304 | PLUG, Timing Window | 1 | ||||||
| 16 | 939201 | PLATE, Cover | 1 | ||||||
| 17 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | |||||
| 18 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 2 |
