| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

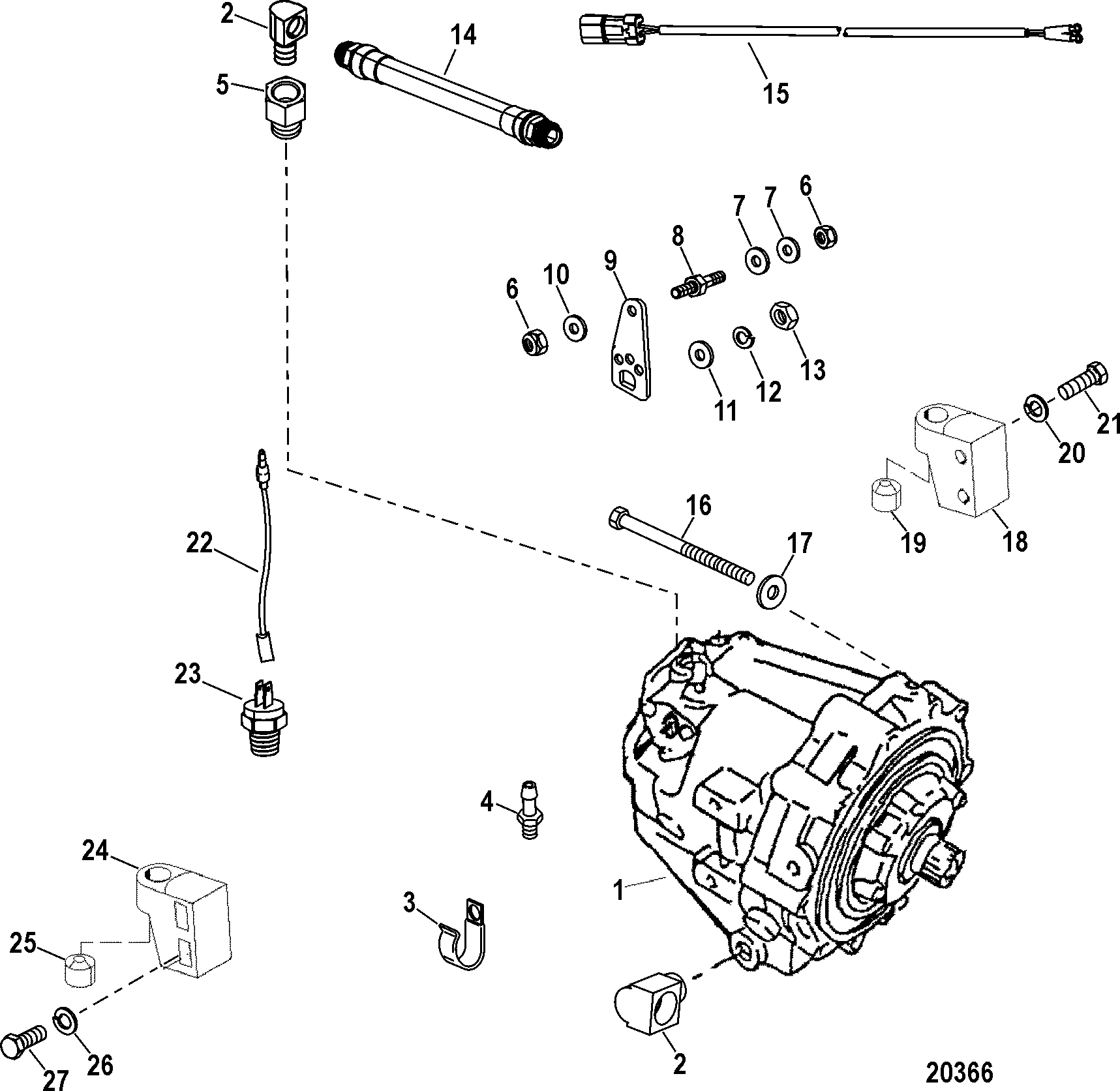

| 1 |
841918A07 |
|
|
|
|
TRANSMISSION ASSEMBLY |
1 |
14750A1 |
|
| 2 |
22-47629 |
|
|
|
|
ELBOW, 90 Degree |
2 |
|
|
| 3 |
54-47483 |
|
|
|
|
J CLIP |
1 |
|
|
| 4 |
22-63186 |
|
|
|
|
FITTING, (.125-27), To Hose On Bottle |
1 |
|
|
| 5 |
22-88517 |
|
|
|
|
FITTING, Reducing |
1 |
|
|
| 6 |
11-35888 |
|
676-9-72001 |
700-21180 |
|
NUT, (.250-28) Stainless Steel |
2 |
|
|
| 7 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 8 |
16-96112 |
|
|
|
|
STUD, (.250-28 x 2.00) |
1 |
|
|
| 9 |
12128 |
|
|
|
|
LEVER, Transmission Shift |
1 |
|
|
| 10 |
12-39143 |
|
|
|
|
WASHER, (.253 x .625 x .0937) |
1 |
|
|
| 11 |
12-20722 |
|
|
|
|
WASHER, (.328 x .625 x .060) |
1 |
|
This Part is No Longer Available |
| 12 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312-24) |
1 |
|
|
| 13 |
11-22053 |
|
|
|
|
NUT, (.312-24) |
1 |
|
|
| 14 |
32-475166 |
|
|
|
|
HOSE ASSEMBLY, (30.00 Inches) |
2 |
|
|
| 15 |
84-896868A01 |
|
|
|
|
HARNESS ASSEMBLY, Extension |
1 |
|
NOTE: This Harness Is Used Between Engine Harness And Connects In Place Of Bravo Shift Plate And the Neutral Switch On The Transmission |
| 16 |
10-60179 |
|
|
|
|
SCREW, (.437-14 x 3.500) |
6 |
|
|
| 17 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
6 |
|
|
| 18 |
47340A1 |
|
|
|
|
BRACKET ASSEMBLY, Mounting - Port |
1 |
|
|
| 19 |
35852 |
|
|
|
|
MOUNT |
1 |
|
|
| 20 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
2 |
|
|
| 21 |
10-47462 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
2 |
|
|
| 22 |
84-86322A29 |
|
|
|
|
CABLE ASSEMBLY, (3.00 Inches) Black |
1 |
|
|
| 22 |
84-88032A5 |
|
|
|
|
CABLE ASSEMBLY, (3.00 Inches) Tan/Blue |
1 |
|
|
| 23 |
87-88031 |
|
|
|
|
SWITCH ASSEMBLY, Oil Temperature |
1 |
|
|
| 24 |
47334A2 |
|
|
|
|
BRACKET ASSEMBLY, Mounting - Starboard |
1 |
|
This Part is No Longer Available |
| 25 |
35852 |
|
|
|
|
MOUNT |
1 |
|
|
| 26 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
2 |
|
|
| 27 |
10-47462 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
2 |
|
|
