| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

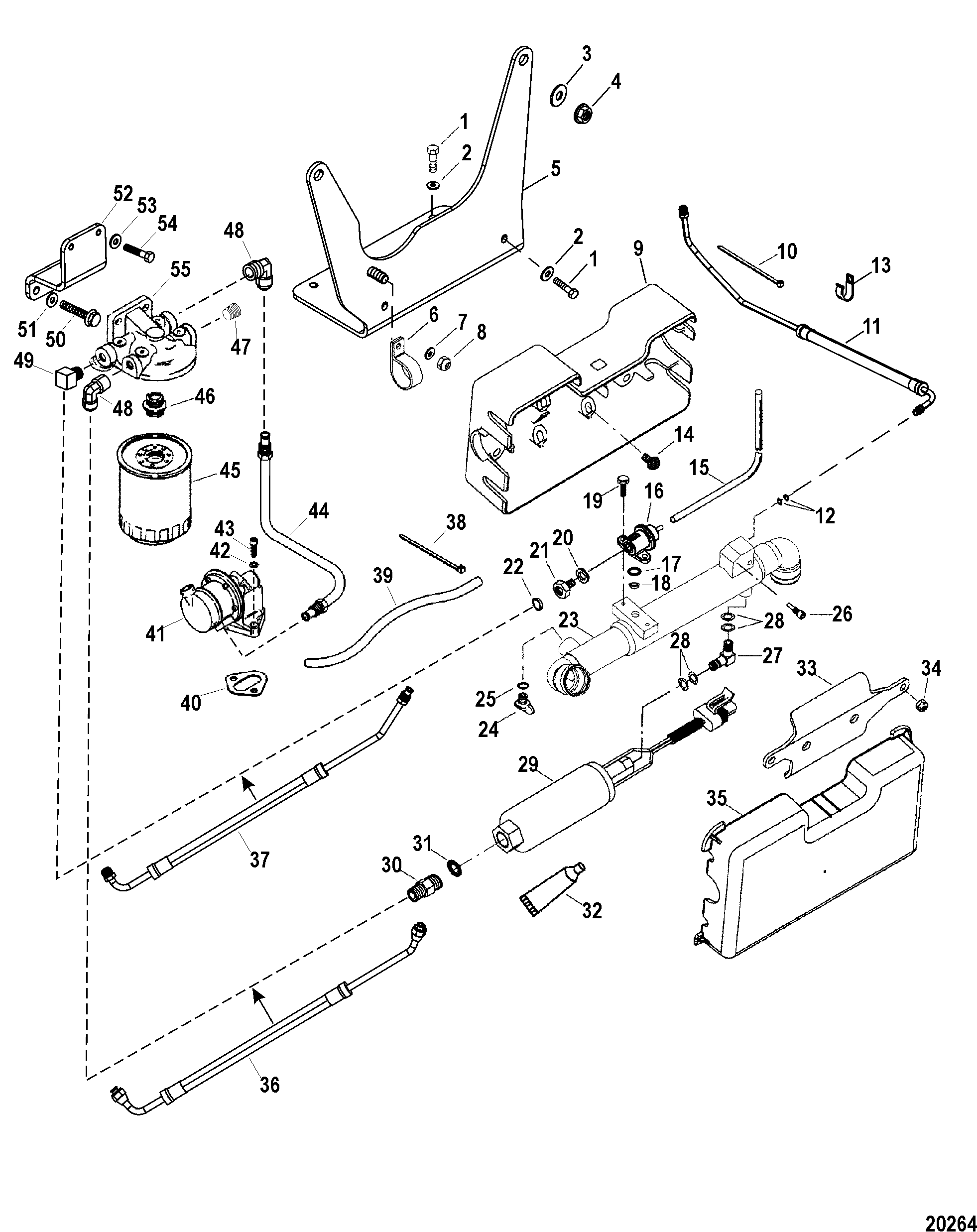

| 1 |
10-64014 |
|
|
|
|
SCREW, (.250-28 x .500) |
4 |
|
|
| 2 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
4 |
|
|
| 3 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 4 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) Brass/Nickel Plated |
2 |
|
|
| 5 |
841981T |
|
|
|
|
BRACKET, Fuel Cooler Support |
1 |
|
|
| 6 |
54-62494 |
|
|
|
|
CLIP, Hose Support |
1 |
|
|
| 7 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
1 |
|
|
| 8 |
11-82670912 |
|
|
|
|
NUT, (.375-16) Stainless Steel |
1 |
|
|
| 9 |
807685T3 |
|
|
|
|
INSULATOR, Base |
1 |
|
|
| 10 |
54-816311T |
|
|
700-21465 |
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 11 |
32-897345T59 |
|
|
|
|
LINE ASSEMBLY, Fuel, Cooler To Filter |
1 |
32-842068 |
|
| 12 |
25-805063 |
|
|
|
|
O-RING, (.301 x .070) |
2 |
|
2 |
| 13 |
54-848183 |
|
|
|
|
J CLIP, Fuel Line To Port Mount |
2 |
|
|
| 14 |
269011 |
|
|
|
|
BUMPER, Rubber |
8 |
|
|
| 15 |
32-8M0063567 |
|
|
|
|
HOSE, (58.00 Inches Bulk), Cut 52.00 Inches - To Rear TBI |
1 |
32-80617382 |
|
| 16 |
861126A1 |
|
|
|
|
REGULATOR KIT, (43 PSI), Fuel Pressure |
1 |
|
|
| 17 |
25-805531 |
|
|
|
|
O-RING, (.476 x .075) |
1 |
|
2 |
| 18 |
35-805406 |
|
|
|
|
FILTER, Fuel Pressure Regulator |
1 |
|
|
| 19 |
10-852368 |
|
|
|
|
SCREW, (#10-24 x .750) |
2 |
|
|
| 20 |
12-36533 |
|
|
|
|
WASHER, (.328 x .562 x .0312) Copper |
1 |
|
2 |
| 21 |
22-8080021 |
|
|
|
|
FITTING, Stainless Steel |
1 |
|
|
| 22 |
27-848438 |
|
|
|
|
GASKET, Flare |
1 |
|
2 |
| 23 |
849929A02 |
|
|
|
|
COOLER KIT, Fuel |
1 |
849929A1 |
|
| 24 |
22-806608A02 |
|
|
|
|
PLUG KIT, (.500-13) Royal Blue |
1 |
22-806608A1 |
|
| 25 |
25-831985 |
|
|
|
|
O-RING, (.468 x .078) |
1 |
|
2 |
| 26 |
10-866114 |
|
|
|
|
SCREW, (.250-28) Special |
1 |
|
|
| 27 |
22-807783A1 |
|
|
|
|
FITTING ASSEMBLY, 90 Degree |
1 |
|
|
| 28 |
25-805063 |
|
|
|
|
O-RING, (.301 x .070) |
4 |
|
2 |
| 29 |
841080T01 |
|
|
|
|
PUMP ASSEMBLY, Fuel, With Ref Numbers 28 And 31 |
1 |
|
|
| 30 |
22-808001A1 |
|
|
|
|
FITTING ASSEMBLY |
1 |
|
|
| 31 |
25-805062 |
|
|
|
|
O-RING, (.530 x .082) |
1 |
|
2 |
| 32 |
92-805701 |
|
|
|
|
COMPOUND, Heat Transfer (6 Grams) |
AR |
|
|
| 33 |
807979T |
|
|
|
|
BRACKET |
1 |
|
|
| 34 |
11-29598 |
|
|
|
|
NUT, (.250-28) Stainless Steel |
2 |
|
|
| 35 |
807930T01 |
|
|
|
|
INSULATOR, Fuel Cooler Cover |
1 |
807930 |
|
| 36 |
32-897345T60 |
|
|
|
|
LINE ASSEMBLY, Fuel, Seperator To Pump |
1 |
32-841146T |
|
| 37 |
32-897345T61 |
|
|
|
|
LINE ASSEMBLY, Fuel, Regulator To Seperator |
1 |
32-841148T |
|
| 38 |
56762 |
|
|
|
|
TIE STRAP, (4.00 Inches) |
2 |
|
|
| 39 |
32-8M8023638 |
|
|
|
|
TUBING, (54.00 Inches Bulk), Cut 48.00 Inches |
1 |
32-84862872 |
|
| 40 |
27-34213 |
|
676-9-61041 |
700-31360 |
|
GASKET, Fuel Pump |
1 |
|
2 |
| 41 |
889275T |
|
|
|
|
PUMP ASSEMBLY, Fuel |
1 |
842429A01 |
|
| 42 |
12-34931 |
|
|
|
|
WASHER, (.406 x .734 x .063) Stainless Steel |
2 |
|
|
| 43 |
10-34354 |
|
|
|
|
SCREW, (.375-16 x 1.50) |
2 |
|
|
| 44 |
32-841153T |
|
|
|
|
LINE ASSEMBLY, Fuel, Pump To Seperator |
1 |
|
|
| 45 |
35-802893TT |
|
|
|
|
FILTER, Fuel/Water Separating - Mercury Brand |
1 |
|
|
| 46 |
22-816133 |
|
|
|
|
FITTING |
1 |
|
|
| 47 |
22-36373 |
|
|
|
|
PLUG, (.375-18) Hex - Steel |
1 |
|
|
| 48 |
22-841079 |
|
|
|
|
CONNECTOR |
2 |
|
|
| 49 |
22-19697 |
|
|
|
|
ELBOW |
1 |
|
|
| 50 |
10-805559 |
|
|
|
|
SCREW, (.375-16 x .875) Stainless Steel |
2 |
|
|
| 51 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
2 |
|
|
| 52 |
841050 |
|
|
|
|
BRACKET, Fuel Seperator Mount |
1 |
|
|
| 53 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
2 |
|
|
| 54 |
10-849377 |
|
|
|
|
SCREW, (.312-24 x .750) Stainless Steel |
1 |
|
|
| 54 |
10-843144 |
|
|
|
|
SCREW, (.312-24 x .880) Stainless Steel |
1 |
|
|
| 55 |
805373005 |
|
|
|
|
BASE, Seperator/Filter |
1 |
|
|
| - |
27-843073A06 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
