525 EFI - Serial 0M953620 Thru 0M956326 - Fuel Rails And Injectors

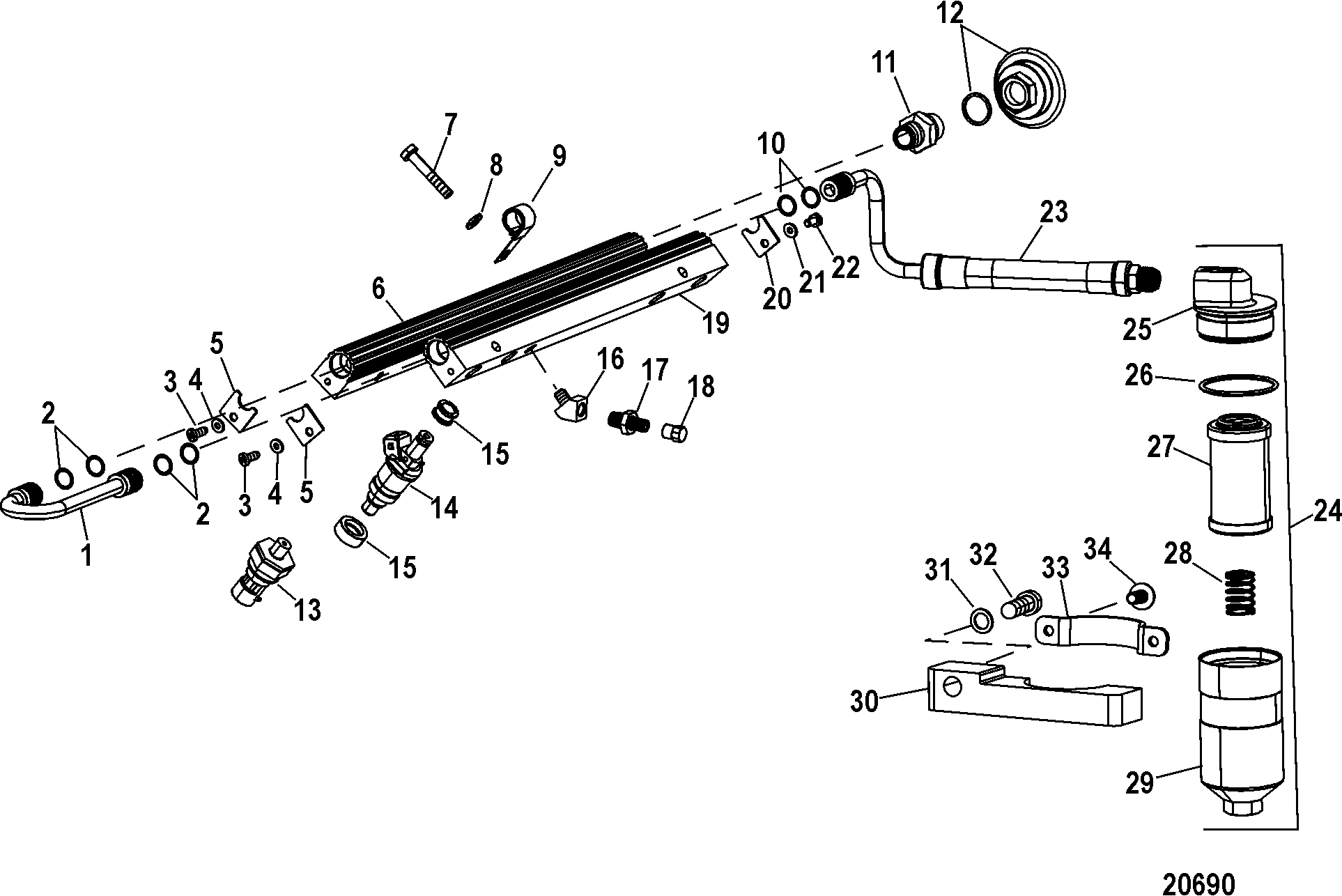

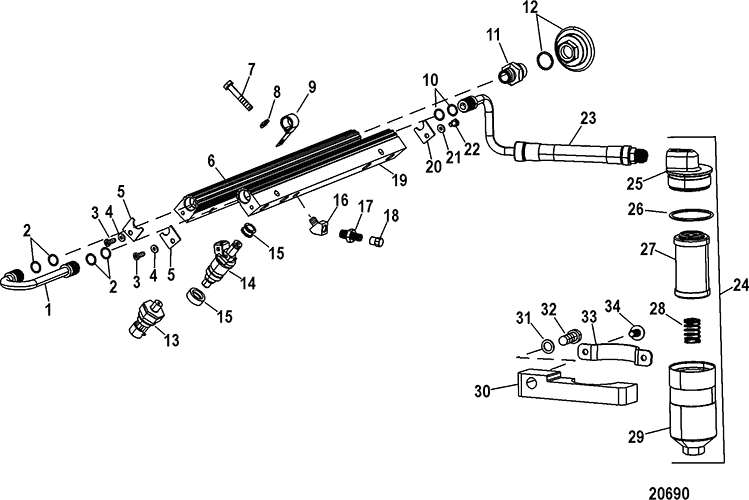

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-849971A03         LINE KIT, Fuel - Black, Rail To Rail 1

2 25-849922         O-RING, Special 4
2
3 10-847401         SCREW, (#10-24 x .380) 2

4 12-30164         WASHER, (.192 x .375 x .0312) Stainless Steel 2

5 849923         RETAINER, Fuel Lines 2

6 842052T01         FUEL RAIL, Starboard - Black 1

7 10-86885         SCREW, (.250-20 x 1.500) Stainless Steel 4

8 12-846673         WASHER, (.265 x .500 x .060) Stainless Steel 4

9 54-858951         J CLIP 4

10 25-849922         O-RING, Special 2
2
11 22-845177         FITTING, Damper Adapter 1

12 841062T01         DAMPER ASSEMBLY, Fuel Pressure - Black 1

13 881879T11         SENSOR, Pressure (0 - 100 PSI), Fuel 1 881879011
14 805225A1         INJECTOR ASSEMBLY, Fuel 8

15 25-805511A1         SEALING KIT, Fuel Injector 8
2,5
16 22-29085         FITTING, Elbow (45 Degree) 1

17 22-840971A1         VALVE ASSEMBLY, Shrader 1

18 22-805515         CAP, Shrader Valve - Brass 1

19 842051T01         FUEL RAIL, Port - Black 1

20 849923         RETAINER, Fuel Line 1

21 12-30164         WASHER, (.192 x .375 x .0312) Stainless Steel 1

22 10-847401         SCREW, (#10-24 x .380) 1

23 32-842069         LINE ASSEMBLY, Fuel 1   This Part is No Longer Available
24 8M0052634         FILTER ASSEMBLY, Fuel - Blue 1 35-848355A03
25 8M0027532         CAP, Fuel Filter - Blue 1 842053
26 25-849087         O-RING, (1.862 x .103) 1
2
27 8M0050994         FILTER, Fuel 1 35-848355
28 24-812708         SPRING 1

29 842043         BODY, Fuel Filter - Black 1

30 844370         BRACKET, Fuel Filter Mount 1

31 12-45176         WASHER, (.453 x .812 x .105) Stainless Steel 1

32 10-844365         SCREW, (.437-14 x 2.00) 1

33 844371         BRACKET, Fuel Filter Mount 1

34 10-817505         SCREW, (.250-20 x .620) Stainless Steel 2

- 27-843073A06         GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
- 841178A05         PARTIAL ENGINE ASSEMBLY 1
