525 EFI - Serial 0M953620 Thru 0M956326 - Closed Cooling System Components

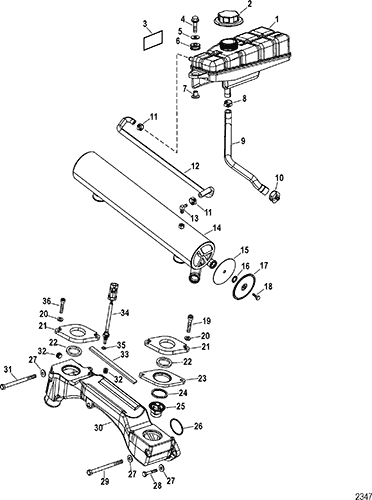

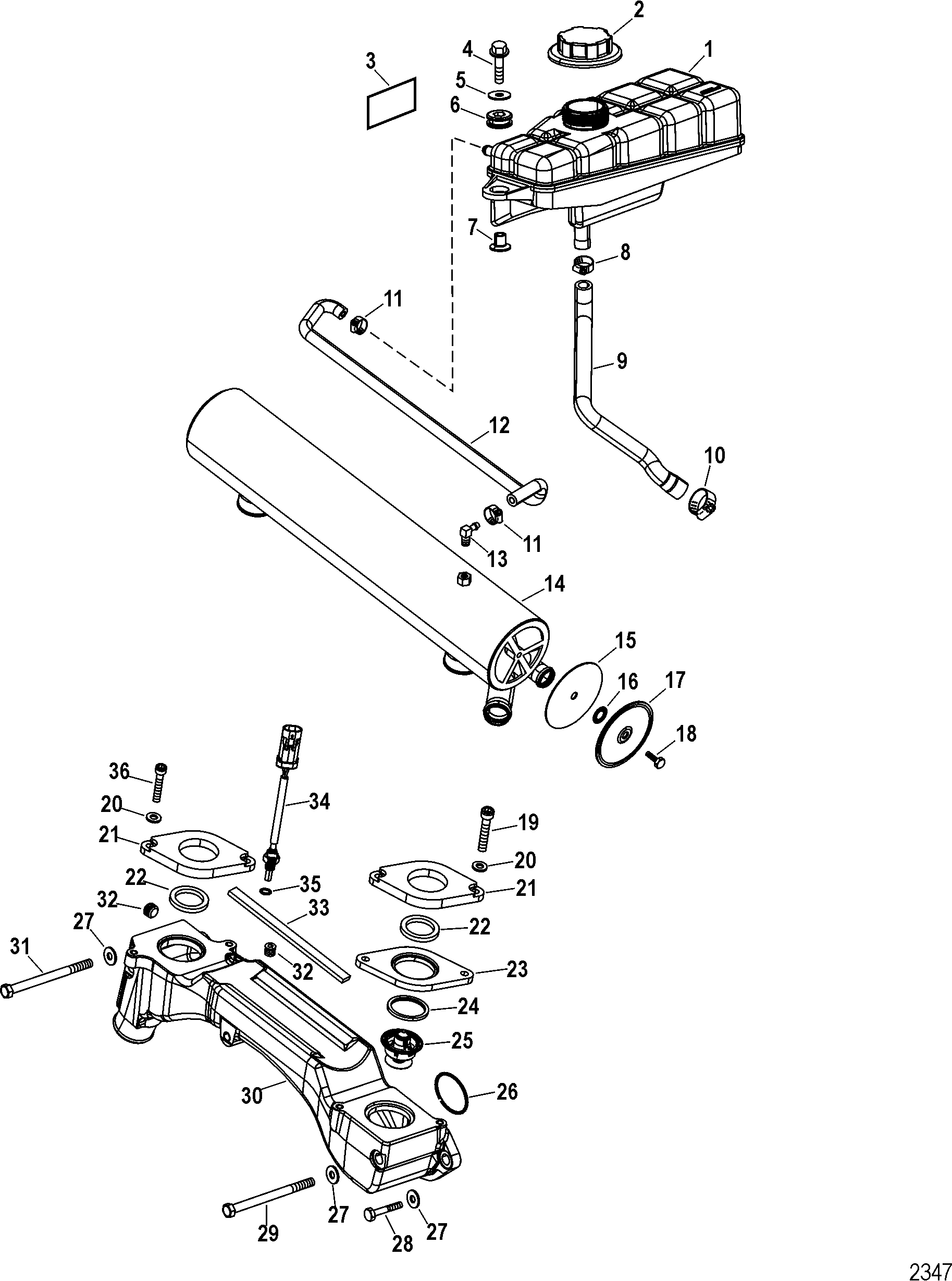

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 841065T01



RESERVOIR ASSEMBLY, Coolant 1

2 862863



CAP, Coolant Reservoir 1

3 37-843133



DECAL, Coolant Level 1

4 10-F430732



SCREW, (.312-18 x 1.250) Stainless Steel 3

5 12-817274



WASHER, (.344 x 1.00 x .063) Stainless Steel 3

6 25-855362001



GROMMET 3 25-855362 2
7 23-855364



BUSHING 3

8 54-815504210



CLAMP, Worm Gear 1

9 32-841207



HOSE, Molded, Reservoir To Circular Pump 1

10 54-180763



CLAMP, Worm Gear 1

11 54-815504406



CLAMP, Worm Gear 2

12 32-842455



HOSE, Molded, Heat Exchanger To Reservoir 1

13 22-629101



FITTING, Elbow - 90 Degree (.125-27) 1

14 841059T03



EXCHANGER ASSEMBLY, Heat 1 841059T02
15 8M0036987



GASKET, Heat Exchanger End 2 27-803644 2
16 8M0039163



O-RING, Special 2 25-814878 2
17 8M0036623



COVER, Heat Exchanger End 2 814875
18 10-814877



BOLT 2

19 10-841222



SCREW, (.312-18 x 1.250) 2

20 12-70132



WASHER, (.323 x .563 x .063) Stainless Steel 4

21 842450



PLATE 2

22 25-20295



QUAD RING (1.725 x .210) 2
2
23 842448



PLATE 1

24 25-8071341



SEAL, Thermostat 1
2
25 8M0076464



THERMOSTAT, 71°C (160°F) 1 863358T
26 25-30529

700-81360
O-RING, (1.925 x .103) 2
2
27 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 6

28 10-825427



SCREW, (.437-14 x 1.250) Stainless Steel 4

29 10-841118



SCREW, (.437-14 x 5.50) Stainless Steel 1

30 841058T01



CROSSOVER, Black 1

31 10-841114



SCREW, (.437-14 x 4.500) Stainless Steel 1

32 22-36373



PLUG, (.375-18) Hex - Steel 2

33 843155001



FOAM STRIP (6.500 Inches) 2

34 885342002



SENSOR ASSEMBLY, Water Temperature 1 885342001
35 25-896699



O-RING, (.351 x .072) 1 25-888814
36 10-841221



SCREW, (.312-18 x 1.00) Stainless Steel 2

- 27-843073A06



GASKET/SEAL SET, Engine Overhaul 1 27-843073A03 NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
