| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

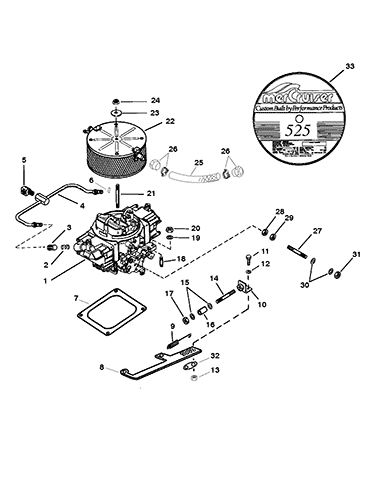

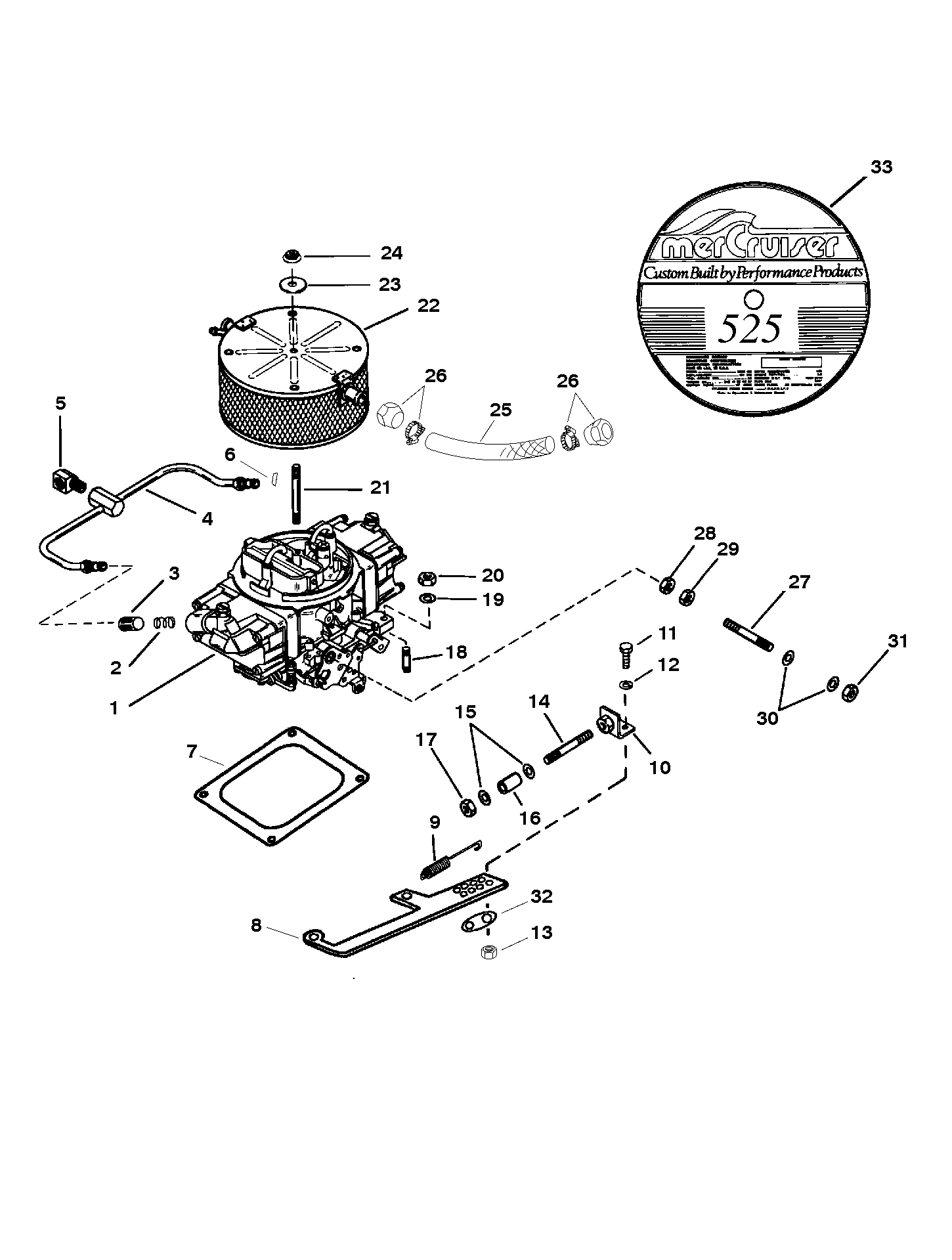

| 1 |
846000T3 |
|
|
|
|
CARBURETOR (BLUE) |
1 |
12377A6 |
This Part is No Longer Available |
| 2 |
24-48143 |
|
|
|
|
SPRING-Filter |
2 |
|
|
| 3 |
35-93568 |
|
676-9-37825 |
|
|
FILTER |
2 |
|
|
| 4 |
32-12837A1 |
|
|
|
|
LINE ASSEMBLY-Fuel Inlet |
1 |
|
This Part is No Longer Available |
| 5 |
22-93385 |
|
|
|
|
ELBOW-Fuel Inlet Tube |
1 |
|
|
| 6 |
27-848438 |
|
|
|
|
GASKET-Flair (Copper) |
2 |
|
|
| NS |
8M0050786 |
|
|
|
|
REBUILD KIT-Carburetor Overhaul |
1 |
822386 |
2 |
| NS |
27-42270A1 |
|
|
|
|
GASKET SET-Carburetor |
1 |
|
2 |
| NS |
1396-9860 |
|
|
|
|
POWER VALVE |
1 |
|
2 |
| NS |
32-42265 |
|
|
|
|
TUBE (Bowl Vent) |
1 |
|
2 |
| NS |
1399-650898 |
|
|
|
|
JET-Main (.125) (Primary-Port) |
1 |
|
2 |
| NS |
1399-650898 |
|
|
|
|
JET-Main (.125) (Primary-Starboard) |
1 |
|
2 |
| NS |
1399-650898 |
|
|
|
|
JET-Main (.125) (Secondary-Port) |
1 |
|
2 |
| NS |
1399-650898 |
|
|
|
|
JET-Main (.125) (Secondary-Starboard) |
1 |
|
2 |
| 7 |
27-42270A1 |
|
|
|
|
GASKET |
1 |
27-12732 |
4 |
| 8 |
128493 |
|
|
|
|
BRACKET-Throttle |
1 |
128492 |
This Part is No Longer Available 1 |
| 9 |
24-897454 |
|
|
|
|
SPRING-Throttle Return |
1 |
24-32817 |
|
| 10 |
15017 |
|
|
|
|
BRACKET-Throttle |
1 |
|
|
| 11 |
10-78291 |
|
|
|
|
SCREW (.187-24 x .500)-Throttle Bracket |
2 |
|
|
| 12 |
13-26996 |
|
|
|
|
LOCKWASHER (#10)-Throttle Bracket Screw |
2 |
|
|
| 13 |
11-79989 |
|
|
|
|
NUT (#10-24)-Throttle Bracket Screw |
2 |
|
|
| 14 |
16-98851 |
|
|
|
|
STUD-Cable |
1 |
|
No longer made, limited availability |
| 15 |
12-69056 |
|
|
|
|
WASHER-Cable Stud |
2 |
12-21631 |
|
| 16 |
23-31866 |
|
|
|
|
SPACER-Cable Stud |
1 |
|
|
| 17 |
11-826709109 |
|
|
|
525-11-826709109 |
NUT (.250-28)-Cable Stud |
1 |
11-35045 |
|
| 18 |
16-96108 |
|
|
|
|
STUD (.312 x 2.160) |
4 |
|
This Part is No Longer Available |
| 19 |
12-848136 |
|
|
|
|
WASHER-Carburetor Stud (.328 x .680 x .190) |
2 |
|
|
| 19 |
12-20084 |
|
|
700-21664 |
|
WASHER-Carburetor Stud (.328 x .562 x .062) |
2 |
|
|
| 20 |
11-82670911 |
|
|
|
|
NUT (.312-24)-Carburetor Stud |
4 |
11-35814 |
|
| 21 |
16-30668 |
|
|
|
|
STUD (.312 x 2.812)-Flame Arrestor |
1 |
|
|
| 22 |
8486201 |
|
|
|
|
ARRESTOR-Flame |
1 |
848620 |
This Part is No Longer Available |
| 23 |
12-22753 |
|
|
|
|
WASHER-Flame Arrestor Stud |
1 |
|
|
| 24 |
11-82670911 |
|
|
|
|
NUT (.312-24)-Flame Arrestor Stud |
1 |
11-35814 |
|
| 25 |
32-821284A8 |
|
|
|
|
HOSE ASSEMBLY (16.00 In.)-Vent |
2 |
|
|
| 26 |
54-84763012 |
|
|
|
|
CLAMP-Vent Hose |
4 |
|
This Part is No Longer Available |
| 27 |
16-728091 |
|
|
|
|
STUD (.250 x 1.620)-Throttle Cable to Carburetor |
1 |
16-72809 |
|
| 28 |
11-826709109 |
|
|
|
525-11-826709109 |
NUT (.250-28)-Throttle Cable Stud |
1 |
11-35045 |
|
| 29 |
11-21825 |
|
|
|
|
NUT (.250-28)-Throttle Cable Stud |
1 |
|
|
| 30 |
12-29245 |
|
|
700-21490 |
|
WASHER-Throttle Cable Stud |
2 |
|
|
| 31 |
11-8267098 |
|
|
|
|
NUT (.250-20)-Throttle Cable Stud |
1 |
11-56374 |
|
| 32 |
53-782012 |
|
|
|
|
CLIP |
1 |
|
This Part is No Longer Available |
| 33 |
37-848599 |
|
|
|
|
DECAL-Flame Arrestor |
1 |
|
|
| - |
27-827014A98 |
|
|
|
|
GASKET SET-Engine Overhaul |
1 |
27-827014A96 |
1 |
