525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Shift Bracket

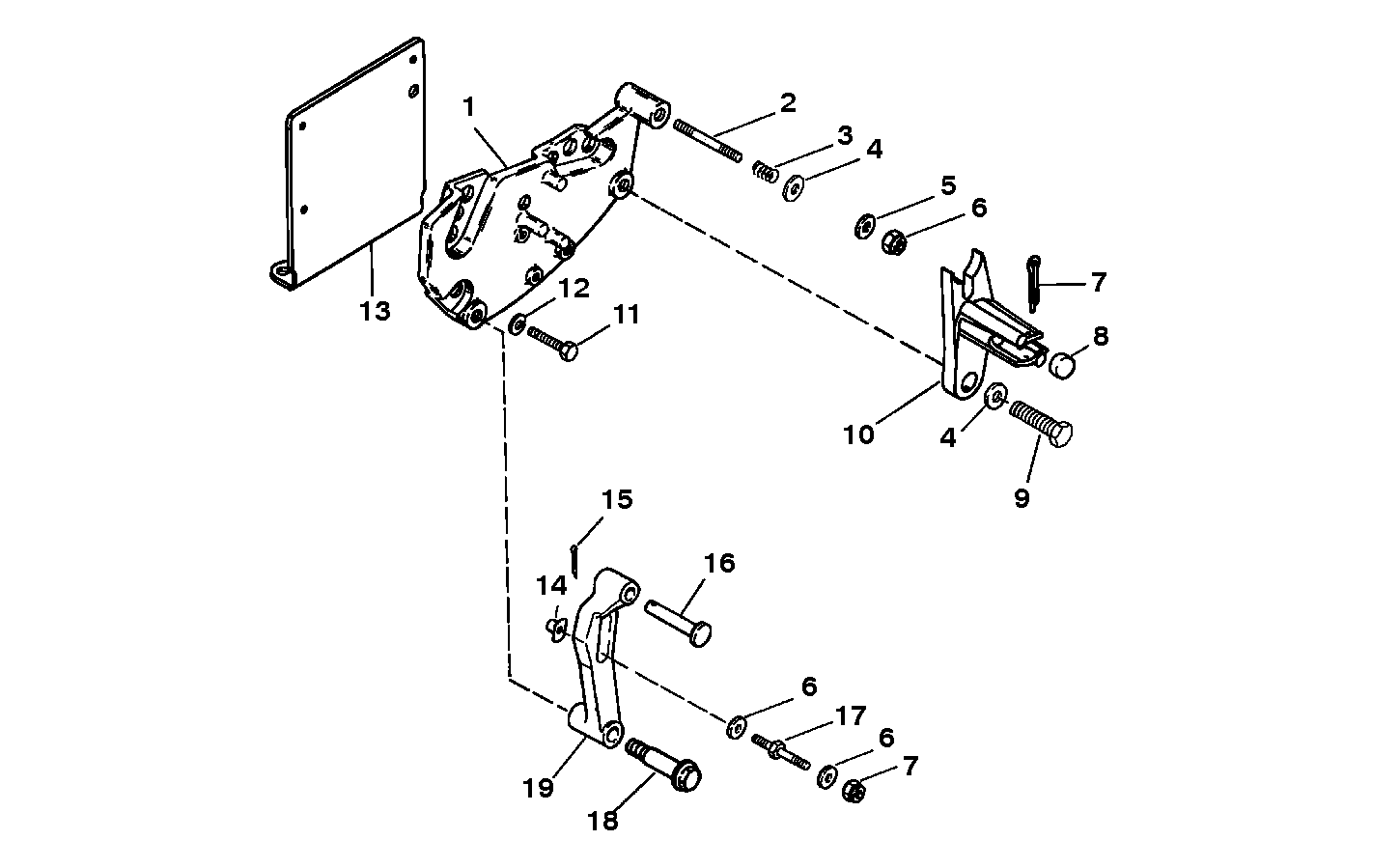

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY-Shift | 1 | 99237A10 | 1 | ||||
| 2 | 16-865154A02 | STUD-Shift Cable (.250-28 x 2.125) | 1 | 16-987981 | |||||
| 3 | 24-98880 | SPRING-Shift Cable Stud | 1 | ||||||
| 4 | 12-56720 | WASHER-Shift Bracket Stud | 2 | ||||||
| 5 | 12-35462 | WASHER-Shift Cable Stud | 4 | ||||||
| 6 | 11-8267119 | NUT (.250-28)-Shift Cable Stud | 2 | 11-13438 | |||||
| 7 | 18-328571 | PIN-Cotter-Shift Cable Retaining | 1 | 18-32857 | |||||
| 8 | 23-98828 | SPACER | 1 | ||||||
| 9 | 10-53167 | SCREW (.312-18 x .875) | 1 | ||||||
| 10 | 865434A02 | RETAINER-Shift Cable | 1 | 123811 | |||||
| 11 | 10-98256 | SCREW (.250-28 x .500) | 3 | ||||||
| 12 | 13-26992 | LOCKWASHER (.250) | 3 | ||||||
| 13 | 8M0052632 | ADAPTER | 1 | 816283 | |||||
| 14 | 11-63341 | TEE NUT-Shift Cable Stud | 1 | ||||||
| 15 | 18-210711 | PIN-Cotter-Shift Lever | 1 | 18-21071 | |||||
| 16 | 17-68402 | PIN-Shoulder-Shift Lever | 1 | ||||||
| 17 | 16-96112 | STUD-Shift Cable | 1 | ||||||
| 18 | 10-13743 | SCREW (.312-18 x 1.843)-Shoulder-Shift Lever | 1 | ||||||
| 19 | 863911A12 | LEVER-Shift | 1 | 138981 |
