| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

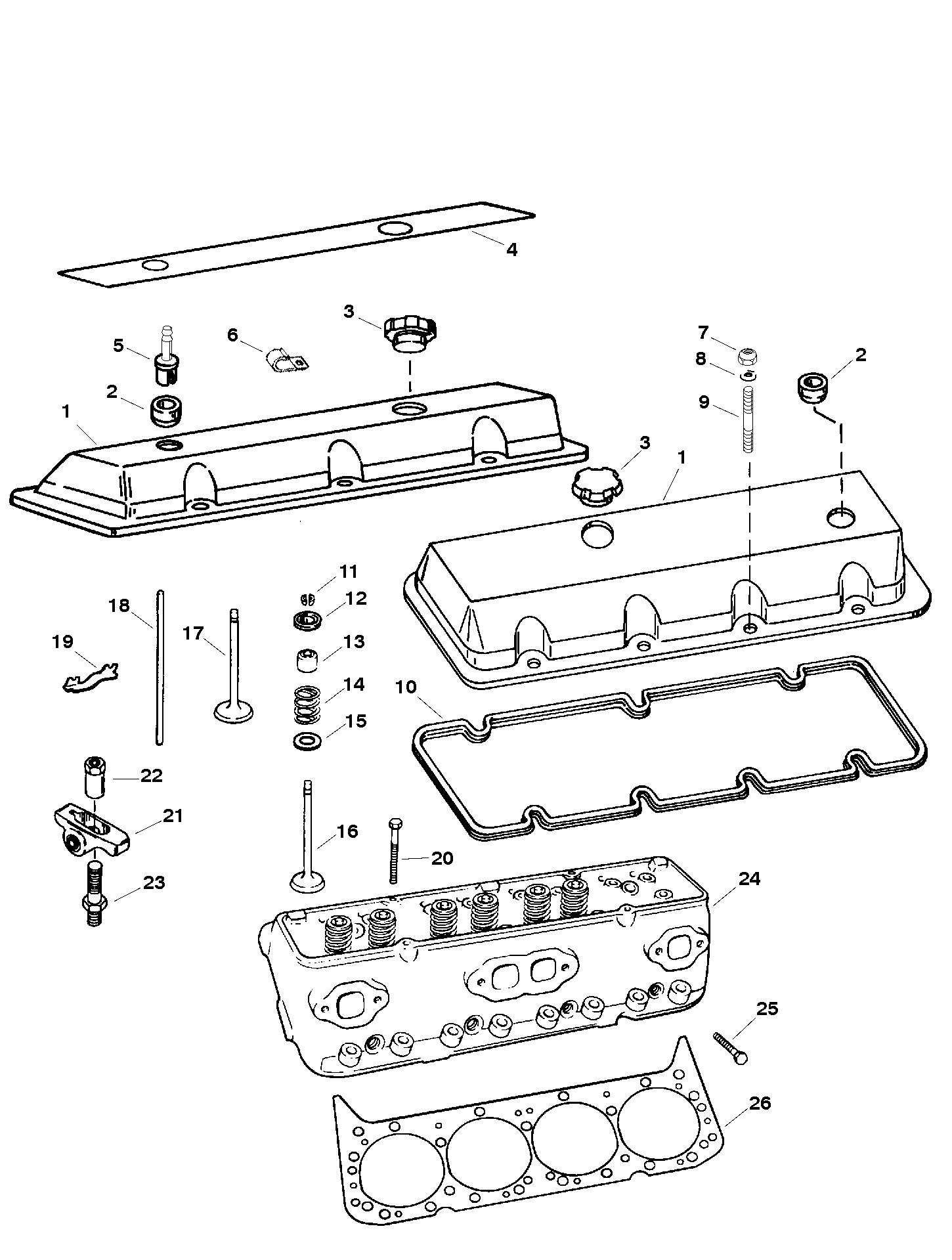

| 1 |
811587A2 |
|
|
|
|
COVER ASSEMBLY-Rocker Valve (Blue) |
2 |
|
|
| 2 |
25-811553 |
|
|
|
|
GROMMET-Rocker Cover |
2 |
|
4 |
| 3 |
36-811569 |
|
|
|
|
CAP-Oil Filler |
2 |
|
|
| 4 |
37-848590 |
|
|
|
|
DECAL |
2 |
|
This Part is No Longer Available |
| 5 |
22-8485571 |
|
|
|
|
FITTING |
2 |
22-848557 |
|
| 6 |
54-642352 |
|
|
|
|
J CLIP |
2 |
|
|
| 7 |
11-35888 |
|
676-9-72001 |
700-21180 |
|
NUT (.250-28)-Rocker Cover Stud |
14 |
|
|
| 8 |
12-35462 |
|
|
|
|
WASHER-Rocker Cover Stud |
14 |
|
|
| 9 |
16-56766 |
|
|
|
|
STUD-Rocker Cover |
14 |
|
|
| 10 |
27-811588 |
|
676-9-61315 |
|
|
GASKET-Rocker Cover |
2 |
|
4 |
| 11 |
96028 |
|
|
|
|
KEY-Valve Stem |
32 |
|
|
| 12 |
843376 |
|
|
|
|
RETAINER |
16 |
98598 |
|
| 13 |
26-827645 |
|
|
|
|
SEAL-Valve |
16 |
15832 |
4 |
| 14 |
24-13455T |
|
|
|
|
SPRING |
16 |
24-13455 |
|
| 15 |
15-845669 |
|
|
|
|
SHIM (.015)-Valve Spring |
AR |
15-54531 |
3 |
| 15 |
15-77624 |
|
|
|
|
SHIM (.030)-Valve Spring |
AR |
|
3 |
| 16 |
843080 |
|
|
|
|
VALVE-Exhaust |
8 |
13024 |
|
| 17 |
986781 |
|
|
|
|
VALVE-Inlet |
8 |
|
|
| 18 |
848263 |
|
|
|
|
PUSHROD-Valve (INLET) |
8 |
|
|
| 18 |
848266 |
|
|
|
|
PUSHROD-Valve (EXHAUST) |
8 |
|
|
| 19 |
845707 |
|
|
|
|
GUIDE-Push Rod |
8 |
811586 |
|
| 20 |
10-8M0000482 |
|
|
|
|
BOLT (4.125)-Cylinder Head |
24 |
10-49105 |
|
| 21 |
845618T |
|
|
|
|
ARM-Valve Rocker |
16 |
848589 |
|
| 22 |
11-848610 |
|
|
|
|
NUT-Valve Rocker Arm |
16 |
|
|
| 23 |
16-821836 |
|
|
|
|
STUD-Valve Rocker Arm |
16 |
|
|
| 24 |
938-826363T3 |
|
|
|
|
HEAD ASSEMBLY-Cylinder |
2 |
938-826363A1 |
This Part is No Longer Available |
| 25 |
10-8M0000463 |
|
|
|
|
BOLT (2.00)-Cylinder Head |
8 |
10-491061 |
|
| 26 |
879150139 |
|
|
|
|
GASKET-Cylinder Head |
2 |
27-811546 |
4 |
| - |
27-827014A98 |
|
|
|
|
GASKET SET-Engine Overhaul |
1 |
27-827014A96 |
1 |
