525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Oil Cooler, Oil Filter And Adaptor

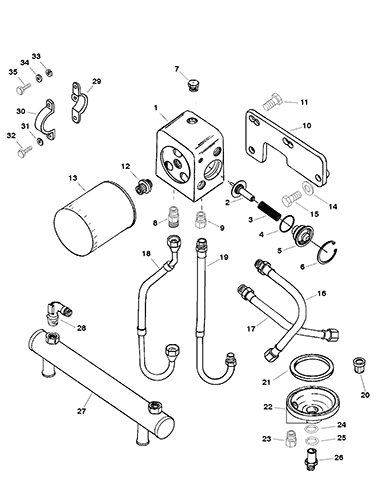

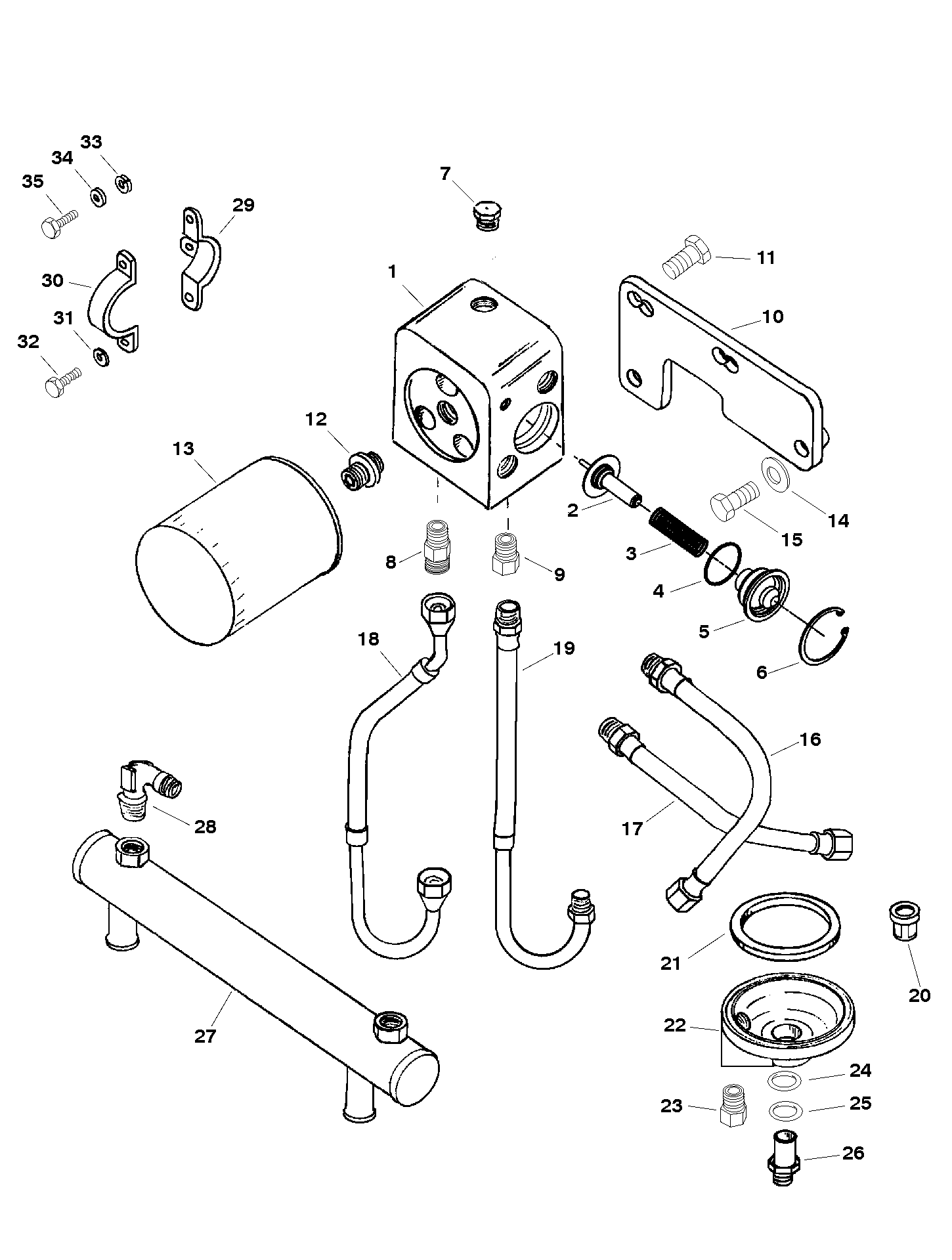

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 848555T | ADAPTOR-Oil Filter | 1 | 848555 | |||||
| 2 | 816163 | THERMOSTAT | 1 | ||||||
| 3 | 24-816162 | SPRING | 1 | ||||||
| 4 | 25-864701 | O RING | 1 | 25-47632 | |||||
| 5 | 8161651 | COVER-Oil Thermostat | 1 | 816165 | |||||
| 6 | 53-848571 | RING-Snap | 1 | ||||||
| 7 | 22-32804 | PLUG (.500-14) | 1 | ||||||
| 8 | 22-806186 | FITTING | 1 | ||||||
| 9 | 22-805563 | FITTING | 1 | ||||||
| 10 | 8485562 | BRACKET-Oil Adaptor | 1 | ||||||
| 11 | 10-825427 | SCREW (.437-14 x 1.250) | 2 | ||||||
| 12 | 22-805632 | CONNECTOR-Oil Filter | 1 | ||||||
| 13 | 35-16595Q | FILTER-Oil | 1 | 35-16595 | |||||
| 14 | 12-45176 | WASHER | 2 | ||||||
| 15 | 10-825427 | SCREW (.437-14 x 1.250) | 2 | ||||||
| 16 | 32-8485742 | HOSE ASSEMBLY (14.500 In.) | 1 | ||||||
| 17 | 32-8485741 | HOSE ASSEMBLY (13.380 In.) | 1 | This Part is No Longer Available | |||||
| 18 | 32-848573 | HOSE ASSEMBLY-Remote Oil To Adaptor | 1 | ||||||
| 19 | 32-848572 | HOSE ASSEMBLY-Remote Oil To Adaptor | 1 | ||||||
| 20 | 99889 | VALVE-By Pass | 1 | ||||||
| 21 | 27-91892 | GASKET | 1 | 4 | |||||
| 22 | 35-818400A1 | ADAPTOR KIT | 1 | ||||||
| 23 | 22-805563 | FITTING | 1 | ||||||
| 24 | 25-90196 | O RING | 1 | ||||||
| 25 | 12-55822 | WASHER | 1 | ||||||
| 26 | 22-806121 | FITTING | 1 | ||||||
| 27 | 848192T | COOLER-Oil | 1 | 848192 | |||||
| 28 | 22-706811 | ELBOW (90 Degree) | 2 | ||||||
| 29 | 8161951 | BRACKET-Oil Cooler | 2 | This Part is No Longer Available | |||||
| 30 | 56328A1 | BRACKET-Oil Cooler | 1 | ||||||
| 31 | 13-26992 | LOCKWASHER (.250) | 4 | ||||||
| 32 | 10-49668 | SCREW (.250-20 x .750) | 4 | ||||||
| 33 | 12-20553 | WASHER | 2 | ||||||
| 34 | 13-35048 | LOCKWASHER (.375) | 2 | ||||||
| 35 | 10-34353 | SCREW (.375-16 x 1.00) | 2 | ||||||
| - | 27-827014A98 | GASKET SET-Engine Overhaul | 1 | 27-827014A96 | 1 |
