| Note 1: PARTS LISTED | NSS | (NOT SOLD SEPARATELY) SHOULD BE ORDERED FROM A LOCAL SUPPLIER USING THE APPROPRIATE MANUFACTURER'S PART NUMBER.
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

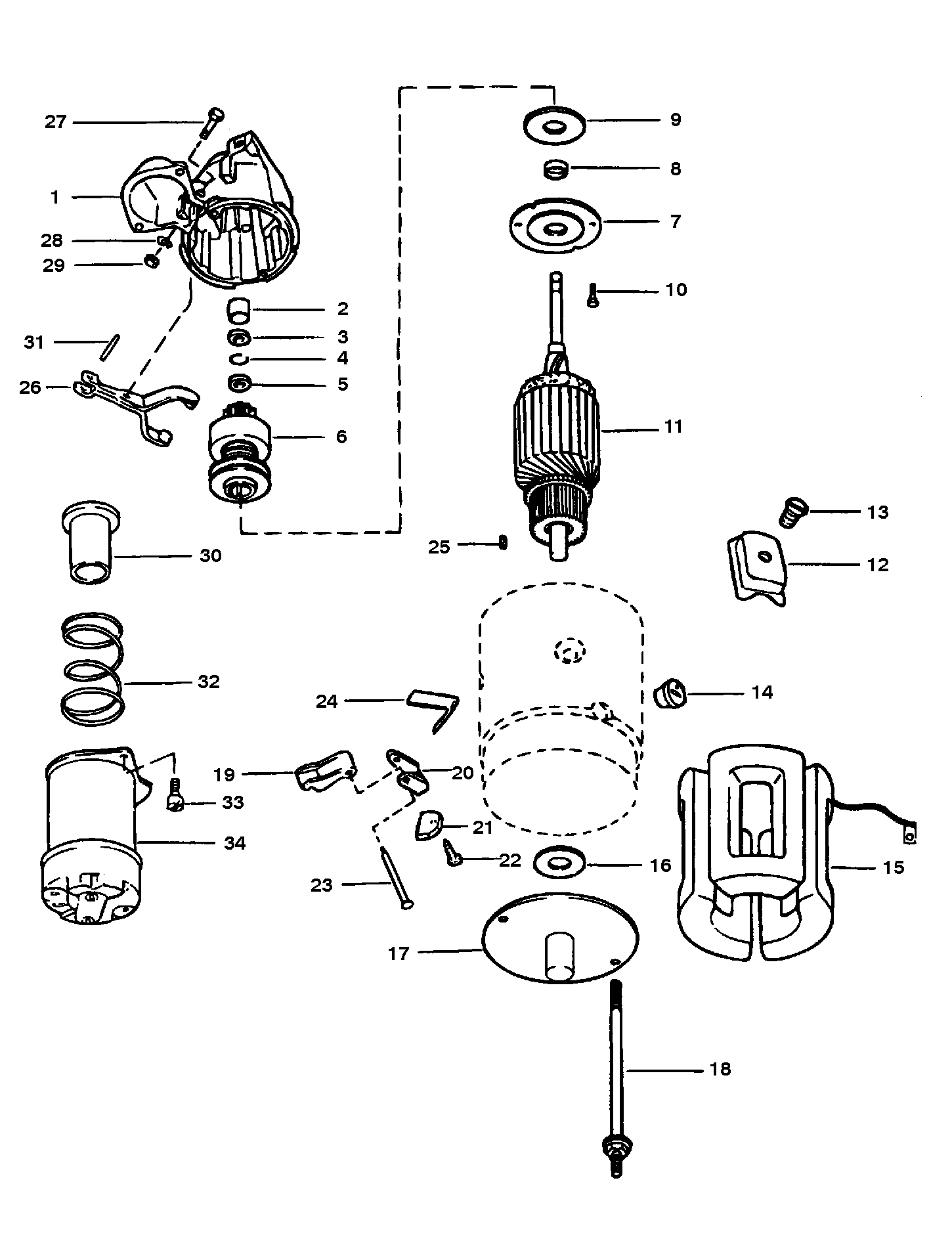

50-808011A05 |
|
|
|
|
STARTER ASSEMBLY |
1 |
50-17251A3 |
(TRANSMISSION & DRIVELINE MODELS) 1 |
| 1 |
79206 |
|
|
|
|
HOUSING ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 2 |
23-33369 |
|
|
|
|
BUSHING-Drive End Housing |
1 |
|
This Part is No Longer Available |
| 3 |
23-809457 |
|
|
|
|
COLLAR-Thrust |
1 |
814474 |
This Part is No Longer Available |
| 4 |
53-33290 |
|
|
|
|
RING-Retaining-Pinion Stop Collar |
1 |
|
|
| 5 |
33291 |
|
|
|
|
COLLAR-Pinion Stop |
1 |
|
|
| 6 |
68608 |
|
|
|
|
DRIVE ASSEMBLY-Clutch |
1 |
|
This Part is No Longer Available |
| 7 |
79396 |
|
|
|
|
PLATE-Bearing |
1 |
|
This Part is No Longer Available |
| 8 |
23-71694 |
|
|
|
|
BUSHING-Bearing Plate |
1 |
|
This Part is No Longer Available |
| 9 |
12-68614 |
|
|
|
|
WASHER-Bearing Plate |
1 |
|
This Part is No Longer Available |
| 10 |
10-79209 |
|
|
|
|
SCREW-Bearing |
2 |
|
This Part is No Longer Available |
| 11 |
68606 |
|
|
|
|
ARMATURE |
1 |
|
This Part is No Longer Available |
| 12 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SHOE-Pole-Field Coil |
4 |
|
This Part is not sold separately (Delco Remy #810601) 6 |
| 13 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW |
4 |
|
This Part is not sold separately (Delco Remy #1968396) 6 |
| 14 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, GROMMET-Field Coil |
1 |
|
This Part is not sold separately (Delco Remy #1846097) 6 |
| 15 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, FIELD COIL ASSY |
1 |
|
This Part is not sold separately (Delco Remy #1970467) 6 |
| 16 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, WASHER-Leather |
1 |
|
This Part is not sold separately (Delco Remy #1985617) 6 |
| 17 |
79211 |
|
|
|
|
FRAME-Commutator End |
1 |
|
This Part is No Longer Available |
| 18 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, BOLT-Thru |
1 |
|
This Part is not sold separately (Delco Remy #1939970) 6 |
| 19 |
33284 |
|
|
|
|
HOLDER-Insulated-Field Frame Brush |
2 |
|
This Part is No Longer Available |
| 20 |
33283 |
|
|
|
|
HOLDER-Field Frame Brush Ground |
2 |
|
This Part is No Longer Available |
| 21 |
33270 |
|
|
|
|
BRUSH-Field Frame |
4 |
|
|
| 22 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW-Brush Lead |
2 |
|
This Part is not sold separately (Delco Remy #1967747) 6 |
| 22 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW-Brush Lead |
2 |
|
This Part is not sold separately (Delco Remy #443527) 6 |
| 23 |
33294 |
|
|
|
|
SUPPORT |
2 |
|
This Part is No Longer Available |
| 24 |
24-33285 |
|
|
|
|
SPRING-Field Frame Brush |
4 |
|
This Part is No Longer Available |
| 25 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, PIN-Dowel |
1 |
|
This Part is not sold separately (Delco Remy #1985696) 6 |
| 26 |
33297 |
|
|
|
|
LEVER-Shift |
1 |
|
This Part is No Longer Available |
| 27 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, STUD-Shift Lever |
1 |
|
This Part is not sold separately (Delco Remy #1814529) 6 |
| 28 |
12-68615 |
|
|
|
|
WASHER-Shift Lever Stud |
1 |
|
This Part is No Longer Available |
| 29 |
11-26484 |
|
|
|
|
NUT (.312-18)-Shift Lever Stud |
1 |
|
|
| 30 |
33317 |
|
|
|
|
PLUNGER |
1 |
|
This Part is No Longer Available |
| 31 |
17-79207 |
|
|
|
|
PIN-Plunger to Shift Lever |
1 |
|
This Part is No Longer Available |
| 32 |
24-46889 |
|
|
|
|
SPRING-Plunger Return |
1 |
|
This Part is No Longer Available |
| 33 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW-Solenoid |
2 |
|
This Part is not sold separately (Delco Remy #132255) 6 |
| 34 |
89-18080 |
|
676-9-15102 |
700-72460 |
|
SOLENOID |
1 |
|
|
