525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Starter And Alternator

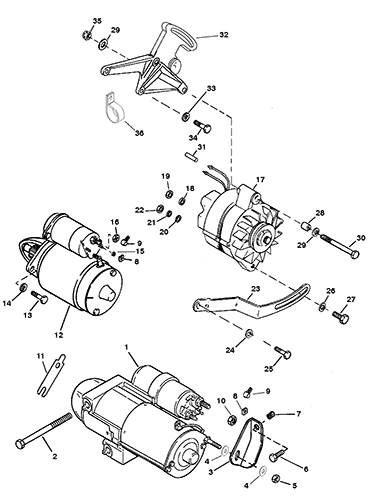

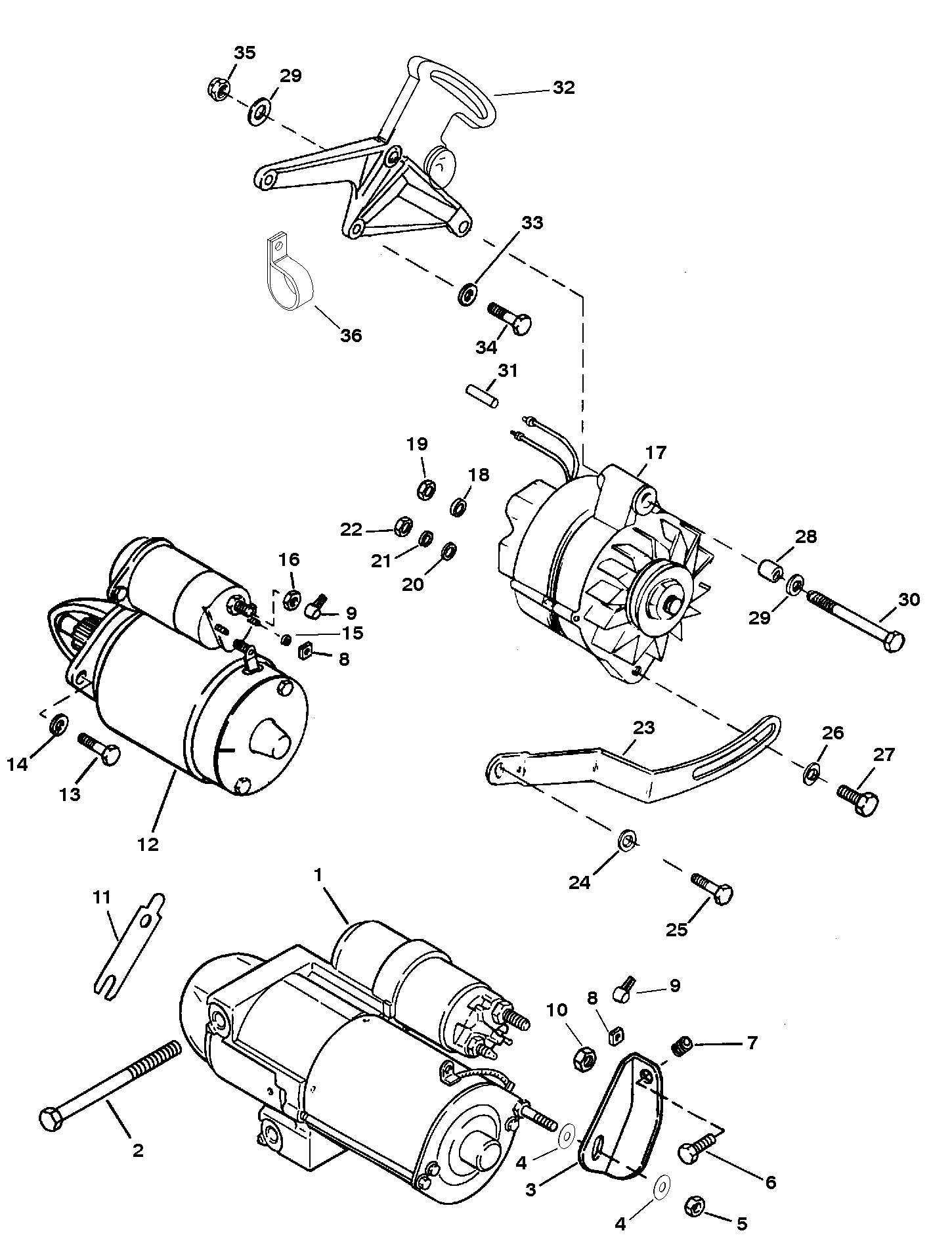

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-863007A1         STARTER ASSY 1 50-99418A2 (BRAVO PLUG-IN) (3.500 IN. DIA.) (SEE "STARTER ASSEMBLY (50-99418A2)") SUPERSEDES TO ANOTHER PART NUMBER 1
1 50-863007A1         STARTER ASSY 1 50-806964A3 (BRAVO PLUG-IN) (2.875 IN. DIA.) (SEE "STARTER ASSEMBLY (50-806964A3)") NOT SHOWN
2 10-8053432         SCREW-Special 2
AS REQUIRED
3 89057         BRACE-(3.500 In. Starter) 1   This Part is No Longer Available COMPONENT OF ENGINE GASKET SET [27-827014A96]
4 12-29245     700-21490   WASHER-(3.500 In. Starter) 2
OPTIONAL
5 11-8267098



NUT (10M) (3.500 In. Starter) 1 11-56374 NOT SOLD SEPARATE (PARTS SHOULD BE ORDERED FROM A LOCAL SUPPLIER
6 10-35765A1



SCREW & WASHER (.312-18 x .625) (3.500 In. Starter) 1

7 22-325611



PLUG-(3.500 In. Starter) 1

8 11-400211



NUT (5M) 1

9 85-79695T



BOOT-Insulator 1 85-79695
10 11-15874



NUT (10M) (3.500 In. Starter) 1

10 11-401388



NUT (8M) (2.875 In. Starter) 1 11-400635
11 15-8172721



SHIM-Special 1

12 50-808011A05



STARTER ASSEMBLY 1 50-17251A3 (DRIVELINE) (SEE "STARTER ASSEMBLY (50-17251A3)") 1
12 50-808011A05



STARTER ASSEMBLY 1 50-808011A1 (DRIVELINE) (SEE "STARTER ASSEMBLY (50-808011A1)")
13 10-47461



SCREW (.437-14 x 1.00) 2

14 13-32993



LOCKWASHER (.437) 2

15 13-26993



LOCKWASHER (.312) 1

16 11-4013610



NUT (M10) 1 11-400266
17 8171191



ALTERNATOR ASSEMBLY (BLUE) 1
(SEE "ALTERNATOR ASSEMBLY (MANDO #AC-155603)")
18 13-26992



LOCKWASHER (.250) 1

19 11-8267098



NUT (.250-20) 1 11-56374
20 12-96457



WASHER 1

21 13-26996



LOCKWASHER (#10) 1

22 11-79989



NUT (#10-24) 1

23 85013T



BRACE-Alternator Adjusting 1

24 12-45176

700-28420
WASHER 1

25 10-825427



SCREW (.437-14 x 1.250) 1

26 12-26168



WASHER 1

27 10-29198



SCREW & LOCKWASHER (.312-18 x .875) 1

28 23-33186



BUSHING 1

29 12-20553

700-21675
WASHER 3

30 10-48308



SCREW (.375-24 x 3.750) 1

31 5790811



SLEEVE-Alternator Lead (10.00 In. Bulk) (Cut As Req'd) 1

32 848146T



BRACKET-Alternator Mount 1 848146
33 12-45176

700-28420
WASHER 3

34 10-825427



SCREW (.437-14 x 1.250) 3

35 11-23161



NUT (.375-24) 1

36 54-848130



CLIP-Hose Circulating Pump 1
No longer made, limited availability
