600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Distributor And Ignition Components

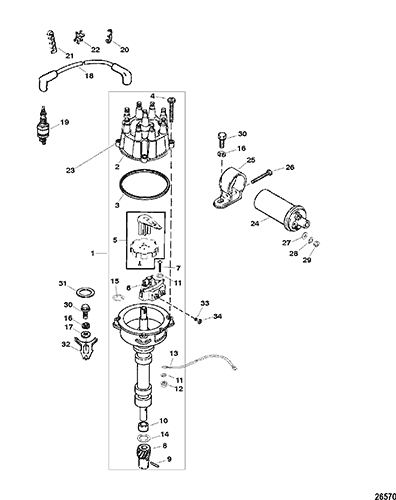

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805185A36         DISTRIBUTOR ASSEMBLY 1 90747A27
2 805759T1         CAP ASSEMBLY 1 805759A2
3 27-805760         GASKET, Distributor Cap 1
2
4 10-90926         SCREW, (#10-32 x .810) 4

5 13524T1         WHEEL ASSEMBLY, Rotor Sensor 1 13524A1
6 87-892150Q02         SENSOR ASSEMBLY 1 87-91019A3
7 10-66686         SCREW, (#10-32 x 1.00) 1

7 10-72202     700-22312   SCREW, (#10-32 x 1.25) 1

8 43-818807         GEAR, Drive 1

9 17-47617         PIN 1

10 23-90915         BUSHING 2

11 13-26996         LOCKWASHER, (#10) 3

12 11-68219         NUT, (#10-32) 1

13 84-86322A17         CABLE ASSEMBLY, Black - Ground 1   This Part is No Longer Available
14 12-90931         WASHER, Thrust 1

15 53-90916         RING, Retaining 1

16 13-35048         LOCKWASHER, (.375) 2

17 12-20553         WASHER, (.406 x .734 x .063) 1

18 84-847701Q7         CABLE KIT, Ignition - Blue - Spark Plugs And Coil 1 84-847701A7
19 33-8134214         SPARK PLUG 8 33-813421
20 54676         RETAINER, Two Wire 2

21 32783         RETAINER, Three Wire 2

22 32784         RETAINER, Four Wire 4

23 37-92155         DECAL, Distributor Firing Order 1

24 300-8M0079202         COIL KIT, Ignition 1 392-805570A2
25 65970T1         BRACKET, Coil Mount - On Electrical Bracket 1

26 10-41408         SCREW, (#10-32 x 1.50) 1

27 12-30164         WASHER, (.192 x .375 x .0312) 2

28 13-26996         LOCKWASHER, (#10) 2

29 11-68219         NUT, (#10-32) 2

30 10-76926         SCREW, (.375-16 x .875) 2

31 27-344863         GASKET 1
2
32 52185         CLAMP 1

33 13-26996         LOCKWASHER, (#10) 2

34 11-68219         NUT, (#10-32) 2

- 27-827014A98         GASKET SET, Engine Overhaul 1 27-827014A97
