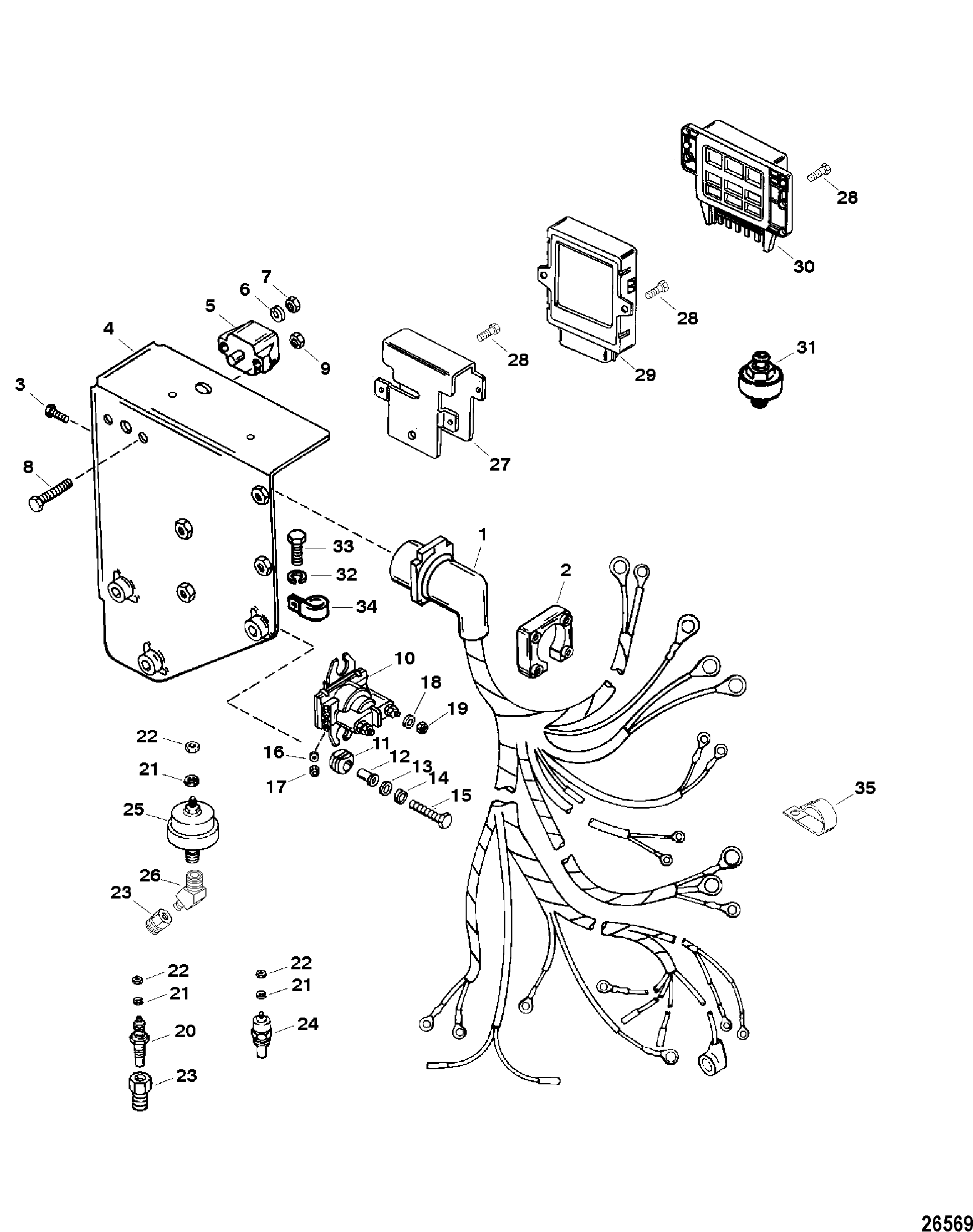

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
84-849142A1 |
|
|
|
|
HARNESS ASSEMBLY, Wiring |
1 |
|
|
| 2 |
26079A2 |
|
|
|
|
PLATE KIT, Wire Harness Mount |
1 |
|
|
| 3 |
10-15001 |
|
|
|
|
SCREW, (#8-16 x .875) |
4 |
|
|
| 4 |
848734T1 |
|
|
|
|
BRACKET, Electrical Components |
1 |
8487341 |
This Part is No Longer Available |
| 5 |
88-11178A01 |
|
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-11178 |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 6 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) |
2 |
|
|
| 7 |
11-68219 |
|
|
|
|
NUT, (#10-32) |
2 |
|
|
| 8 |
10-45862 |
|
|
|
|
SCREW, (#10-32 x .875) |
2 |
|
|
| 9 |
11-61356 |
|
|
|
|
NUT, (#10-32) |
2 |
|
|
| 10 |
89-818999A2 |
|
|
700-72380 |
|
SOLENOID ASSEMBLY, Starter |
1 |
|
|
| 11 |
25-818967 |
|
|
|
|
GROMMET |
2 |
|
|
| 12 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 13 |
12-29245 |
|
|
700-21490 |
|
WASHER, (.281 x .500 x .060) |
2 |
|
|
| 14 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) |
2 |
|
|
| 15 |
10-76630 |
|
|
|
|
SCREW, (.250-20 x 1.00) |
2 |
|
|
| 16 |
13-26995 |
|
|
|
|
LOCKWASHER, (#8) |
2 |
|
|
| 17 |
11-26419 |
|
|
|
|
NUT, (#8-32) |
2 |
|
|
| 18 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) |
2 |
|
|
| 19 |
11-94330 |
|
|
|
|
NUT, (.250-20) |
2 |
|
|
| 20 |
13611 |
|
|
|
|
SENDER ASSEMBLY, Oil Temperature |
1 |
|
|
| 21 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) |
3 |
|
|
| 22 |
11-45076 |
|
|
|
|
NUT, (#10-32) |
3 |
|
|
| 23 |
22-64013 |
|
|
|
|
FITTING, (.375 Male To .125 Female), Engine Block |
2 |
|
|
| 24 |
806490T |
|
676-9-42400 |
|
|
SENDER ASSEMBLY, Water Temperature - Thermostat Housing |
1 |
97257A1 |
|
| 24 |
49734 |
|
|
|
|
SENDER ASSEMBLY, Water Temperature - Thermostat Housing |
OPT |
49734A1 |
Dual Engine Models |
| 25 |
8M0068784 |
|
|
|
|
SENDER ASSEMBLY, Oil Pressure |
1 |
815425 |
|
| 25 |
37293T |
|
|
|
|
SENDER ASSEMBLY, Oil Pressure |
OPT |
37293 |
Dual Engine Models |
| 26 |
22-29085 |
|
|
|
|
FITTING, Elbow (45 Degree) |
1 |
|
|
| 27 |
807763T |
|
|
|
|
BRACKET, Module Mounting |
1 |
|
|
| 28 |
10-806827 |
|
|
|
|
SCREW, (#8-32 x .380) |
6 |
|
|
| 29 |
848824T1 |
|
|
|
|
MODULE, Ignition |
1 |
8488241 |
|
| 30 |
805443 |
|
|
|
|
MODULE ASSEMBLY, Spark Control |
1 |
805443T |
This Part is No Longer Available |
| 31 |
805544T |
|
676-9-33500 |
|
|
SENSOR ASSEMBLY, Knock |
1 |
|
|
| 32 |
12-45176 |
|
|
700-28420 |
|
WASHER, (.453 x .812 x .105) |
3 |
|
|
| 33 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
3 |
|
|
| 34 |
54-848183 |
|
|
|
|
J CLIP, Electrical Harness |
1 |
|
|
| 35 |
54-78945 |
|
|
|
|
J CLAMP, Electrical Harness To Front Mount |
1 |
|
|
