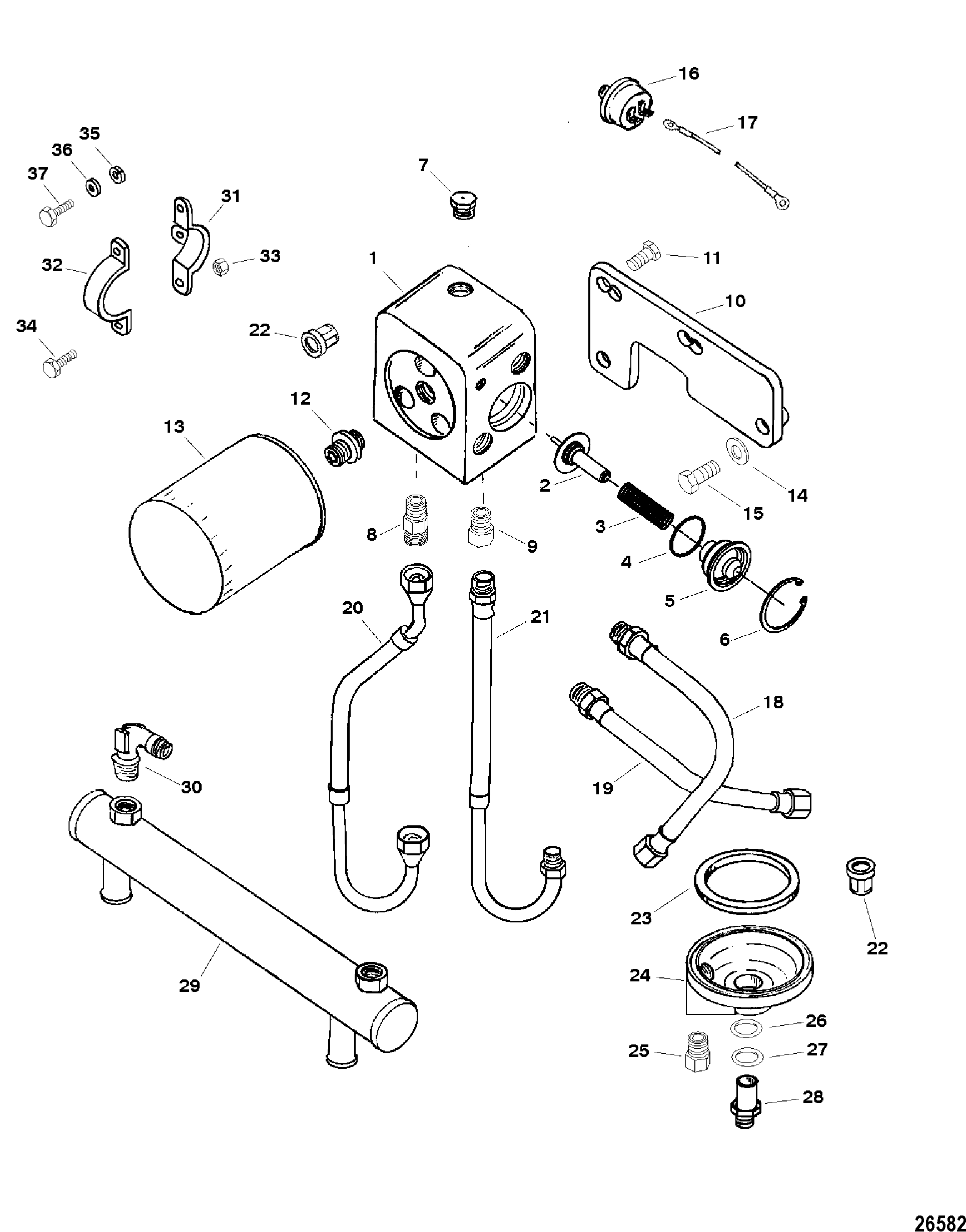

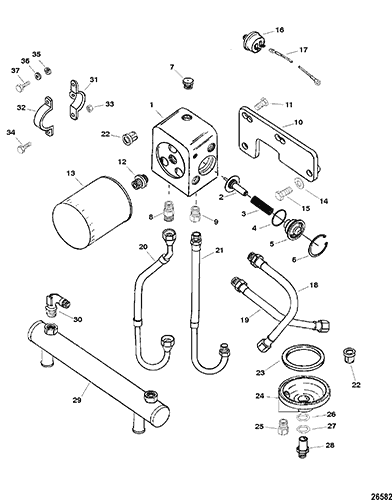

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
848555T |
|
|
|
|
ADAPTOR, Oil Filter |
1 |
848555 |
|
| 2 |
816163 |
|
|
|
|
THERMOSTAT |
1 |
|
|
| 3 |
24-816162 |
|
|
|
|
SPRING |
1 |
|
|
| 4 |
25-864701 |
|
|
|
|
O-RING, (1.112 x .103) |
1 |
25-47632 |
|
| 5 |
8161651 |
|
|
|
|
COVER, Oil Thermostat |
1 |
|
|
| 6 |
53-848571 |
|
|
|
|
RING, Retaining, Snap |
1 |
|
|
| 7 |
22-32804 |
|
|
|
|
PLUG, (.500-14) |
1 |
|
|
| 8 |
22-806186 |
|
|
|
|
FITTING |
1 |
|
|
| 9 |
22-805563 |
|
|
|
|
CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) |
1 |
|
|
| 10 |
8485562 |
|
|
|
|
BRACKET, Oil Adaptor |
1 |
|
|
| 11 |
10-99204 |
|
|
|
|
SCREW, (.437-14 x 1.00) |
2 |
|
|
| 12 |
22-805632 |
|
|
|
|
CONNECTOR, Oil Filter |
1 |
|
|
| 13 |
35-16595Q |
|
|
|
|
FILTER, Oil |
1 |
35-16595 |
|
| 14 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) |
2 |
|
|
| 15 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
2 |
|
|
| 16 |
87-94009 |
|
|
|
|
SWITCH, Choke |
1 |
|
|
| 17 |
84-848879A1 |
|
|
|
|
CABLE ASSEMBLY, Sender To Choke |
1 |
|
|
| 18 |
32-8485742 |
|
|
|
|
HOSE ASSEMBLY (14.500 Inches) |
1 |
|
|
| 19 |
32-848577 |
|
|
|
|
HOSE ASSEMBLY (19.00 Inches) |
1 |
|
|
| 20 |
32-848573 |
|
|
|
|
HOSE ASSEMBLY, Remote Oil To Adaptor |
1 |
|
|
| 21 |
32-848572 |
|
|
|
|
HOSE ASSEMBLY, Remote Oil To Adaptor |
1 |
|
|
| 22 |
99889 |
|
|
|
|
VALVE, By Pass |
2 |
|
|
| 23 |
27-91892 |
|
|
|
|
GASKET |
1 |
|
3 |
| 24 |
35-818400A1 |
|
|
|
|
ADAPTOR |
1 |
|
|
| 25 |
22-805563 |
|
|
|
|
CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) |
1 |
|
|
| 26 |
25-90196 |
|
|
|
|
O-RING, (.921 x .139) |
1 |
|
|
| 27 |
12-55822 |
|
|
|
|
WASHER |
1 |
|
|
| 28 |
22-806121 |
|
|
|
|
FITTING |
1 |
|
|
| 29 |
816482T |
|
|
|
|
COOLER ASSEMBLY, Oil |
1 |
816482 |
|
| 30 |
22-706811 |
|
|
|
|
ELBOW, 90 Degree |
1 |
|
Cooler Front |
| 30 |
22-47630 |
|
|
|
|
ELBOW, 90 Degree |
1 |
|
Cooler Rear |
| 31 |
12820 |
|
|
|
|
BRACKET, Oil Cooler |
2 |
|
|
| 32 |
56328A1 |
|
|
|
|
BRACKET, Oil Cooler |
2 |
|
|
| 33 |
11-30506 |
|
|
|
|
NUT, (.250-28) |
4 |
|
|
| 34 |
10-60300 |
|
|
|
|
SCREW, (.250-28 x .750) |
4 |
|
|
| 35 |
12-20553 |
|
|
|
|
WASHER, (.406 x .734 x .063) |
2 |
|
|
| 36 |
13-35048 |
|
|
|
|
LOCKWASHER, (.375) |
2 |
|
|
| 37 |
10-34353 |
|
|
|
|
SCREW, (.375-16 x 1.00) |
2 |
|
|
| - |
27-818188A98 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
27-818188A96 |
|
