600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Thermostat Housing

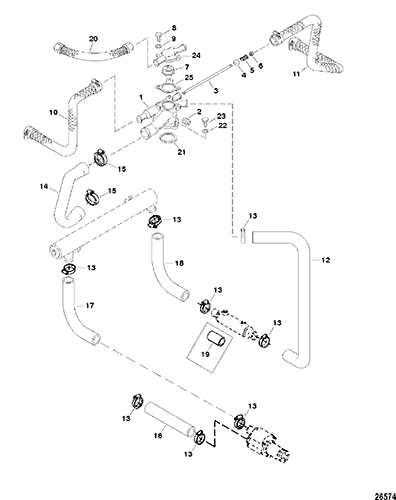

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 847704A1         HOUSING ASSEMBLY, Thermostat 1   This Part is No Longer Available
2 22-36373         PLUG, Hex Steel (.375-18) 1

3 6-847742         STUD, (#10-32 x 11.810), By Pass Valve 1

4 30-98475         BALL, Nylon 2

5 24-75533         SPRING 2

6 11-29488     700-21163   NUT, (#10-32) 2
No longer made, limited availability
7 591371         THERMOSTAT 1

8 10-30206         SCREW, (.375-16 x 1.00), Cover To Housing 2

9 12-37828         WASHER, (.390 x .625 x .062) 2

10 32-847707A4         HOSE ASSEMBLY (22.00 Inches) Housing To Pipe 1   This Part is No Longer Available - Starboard
11 32-847707A7         HOSE ASSEMBLY (14.50 Inches) Housing To Pipe 1
Port
12 32-818361         HOSE, Tube To Thermostat Housing 1   This Part is No Longer Available
13 54-180766         CLAMP, Worm Gear 8

14 32-842412A02         HOSE, Thermostat Housing To Pump 1 32-822525
15 54-180768         CLAMP, Worm Gear 2

16 32-1743565         HOSE, (38.00 Inches Bulk), Cut As Required - Pickup To Pump 1

17 32-848178         HOSE, Sea Pump To Engine Cooler 1

18 32-848956         HOSE, Molded, Engine Cooler To Connector Tube 1

19 22-13177         TUBE, Connector 1

20 32-847707A8         HOSE ASSEMBLY (20.50 Inches) Cover To Manifold 1   This Part is No Longer Available - Starboard
20 32-847707A1         HOSE ASSEMBLY (12.00 Inches) Cover To Manifold 1   This Part is No Longer Available - Port
21 25-20826     700-82280 525-25-20826 O-RING, (2.230 x .139) 1
3
22 12-20086         WASHER, (.390 x .620 x .060), Housing To Manifold 3

23 10-34353         SCREW, (.375-16 x 1.00), Housing To Manifold 3

24 847706T1         COVER, Thermostat 1 8477061
25 27-818364         GASKET, Thermostat 1
3
- 27-818188A98         GASKET SET, Engine Overhaul 1 27-818188A96
