600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Fuel Pump And Fuel Filter

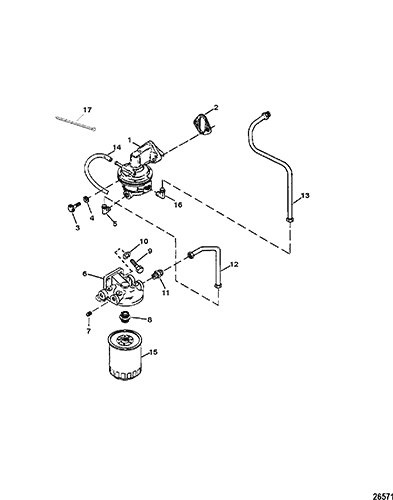

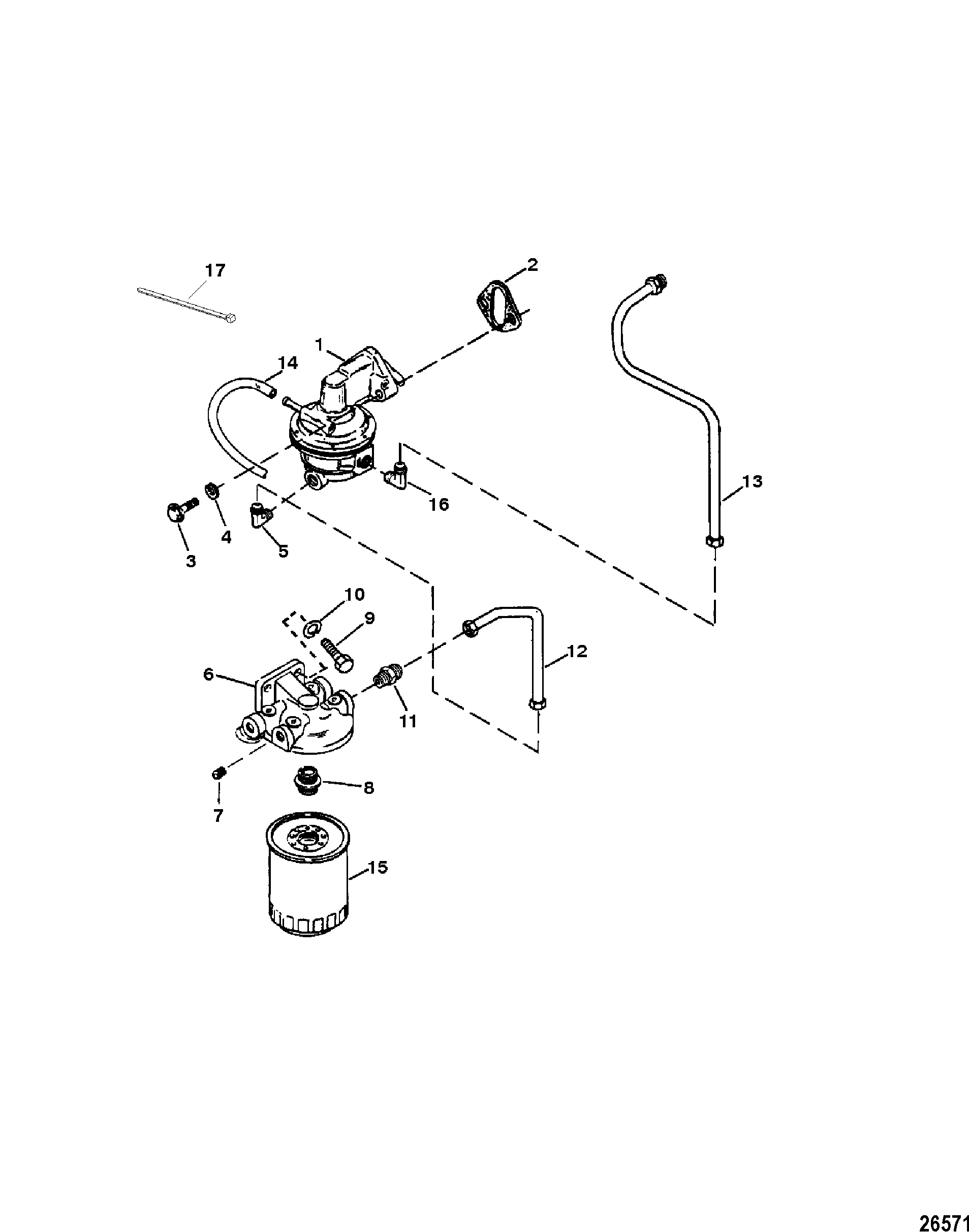

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 861677T



PUMP ASSEMBLY, Fuel 1 818383T
2 27-34213
676-9-61041 700-31360
GASKET, Fuel Pump 1
3
3 10-34354



SCREW, (.375-16 x 1.50) 2

4 13-35048



LOCKWASHER, (.375) 2

5 22-93385



FITTING, (90 Degree) 2

6 89876A3



BASE ASSEMBLY, Fuel Filter/Water Seperator 1

7 22-32561



PLUG, Pipe - Allen Head (.250-18) 3

8 22-816133



FITTING 1 22-8161331
9 10-28782



SCREW, (.312-18 x .880) 2

10 13-26993



LOCKWASHER, (.312) 2

11 22-33821



CONNECTOR 2

12 32-848602



LINE, Fuel - Filter To Pump 1

13 32-848595



LINE, Fuel - Fuel Pump To Carburetor 1

14 32-8M8023638



TUBING (36.00 Inches) Fuel Pump To Carburetor 1 32-84862864
15 35-802893Q01



FILTER, Fuel/Water Separator 1 35-807172
16 22-817395



FITTING, 45 Degree 1

17 56762



TIE STRAP, (4.00 Inches) 5

- 27-818188A98



GASKET SET, Engine Overhaul 1 27-818188A96
