600 SC Bobtail 1998 - Serial 0L414734 Thru 0L601186 - Supercharger

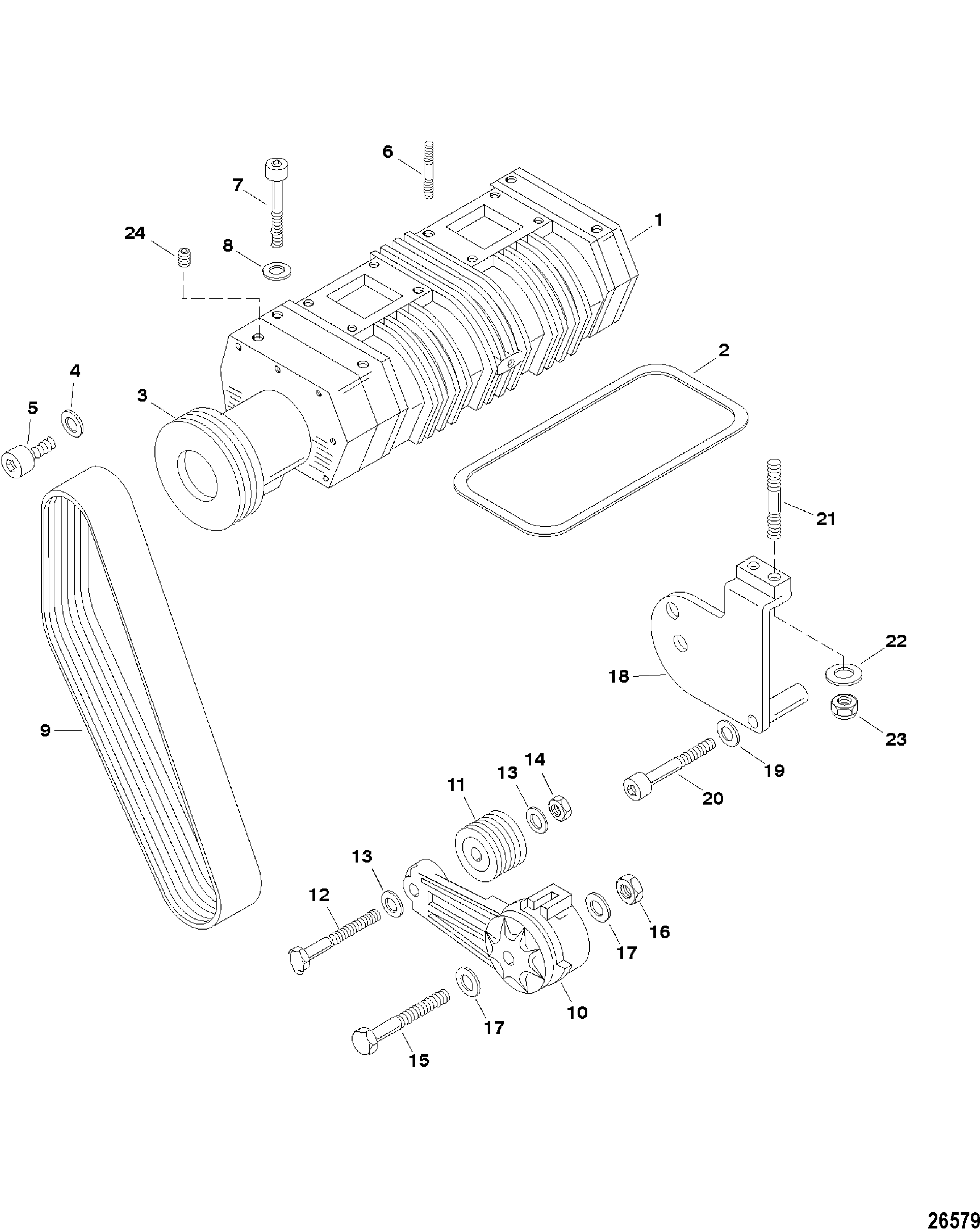

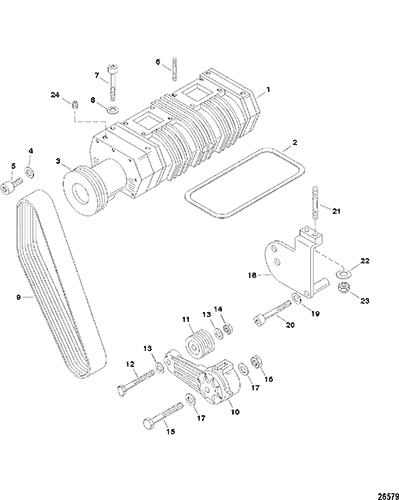

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 818950A1         SUPERCHARGER ASSEMBLY 1   This Part is No Longer Available
2 25-818972         O-RING 1
3
3 8189811         PULLEY, Blue 1   This Part is No Longer Available
4 12-37828         WASHER, (.390 x .625 x .062) 6

5 10-30206         SCREW, (.375-16 x 1.00) 6

6 16-46857         STUD (.312-18 x 1.875) 8

7 10-818969         SCREW 4   This Part is No Longer Available
8 12-822350         WASHER 4

9 57-817113         BELT, Serpentine 1

10 848090T1         TENSIONER ASSEMBLY, Blue 1 848090A1 This Part is No Longer Available
11 848091T         PULLEY, Tensioner 1 848091 This Part is No Longer Available
12 10-848088         SCREW (.375-16 x 2.250) Special 1   This Part is No Longer Available
13 12-74759         WASHER, (.391 x .880 x .125) 2

14 11-848089         NUT (.375-16) Special 1   This Part is No Longer Available
15 10-848106         SCREW (.437-14 x 3.250) 1   This Part is No Longer Available
16 11-848107         NUT (.437-14) 1   This Part is No Longer Available
17 12-45176         WASHER, (.453 x .812 x .105) 2

18 8480681         BRACKET ASSEMBLY, Tensioner Assembly 1   This Part is No Longer Available
19 12-45175         WASHER, (.406 x .750 x .104) 1

20 10-848105         SCREW (.375-16 x 3.250) 1   This Part is No Longer Available
21 16-848562         STUD (.312-24 x 1.65) 2

22 12-70132         WASHER, (.323 x .563 x .063) Stainless Steel 2

23 11-82670911         NUT, (.312-24) 2 11-35814
24 845606         PLUG 1 42534
- 27-818188A98         GASKET SET, Engine Overhaul 1 27-818188A96
