8.2L Mag (Base or HO) - Serial 1A351597 and Up - Cooling System, Fresh Water Components

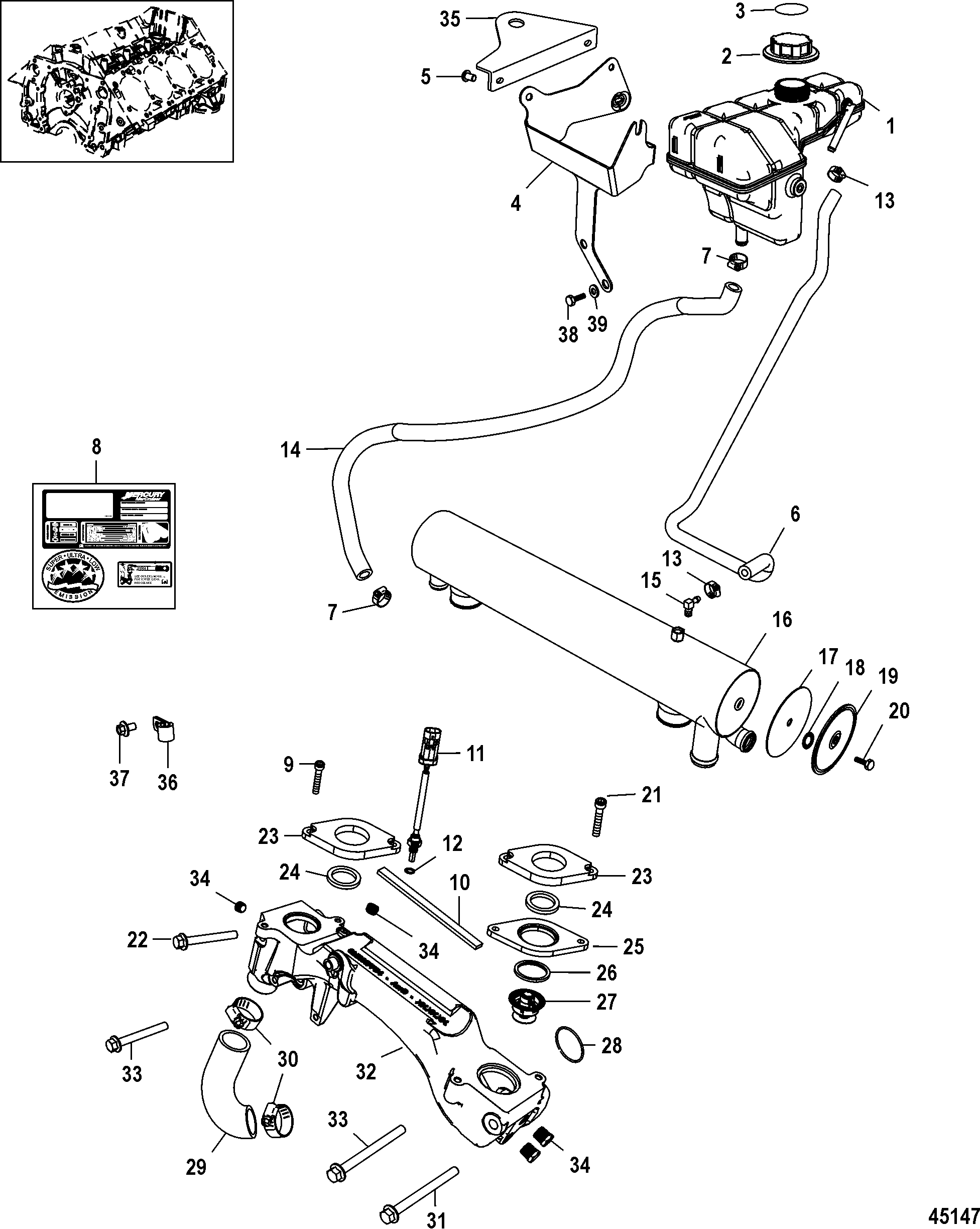

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0045229



RESERVOIR ASSEMBLY, Coolant 1
2 862863



CAP, Coolant Reservoir 1

3 37-8M2017891



DECAL, Engine Coolant 1
4 8M0050598



BRACKET, Reservoir 1

5 10-8M2017990



SCREW, (M8 x 1.25) 3   MCM/MCM Inline
5 10-8M2017990



SCREW, (M8 x 1.25) 2   MIE V-Drive
5 10-81893412



SCREW, (M8 x 12) 1   MIE V-Drive
6 32-8M2017664



HOSE, Coolant Bleed 1
7 54-815504206



CLAMP, Worm Gear 2
8 37-8M0045577



DECAL SET, 8.2L Base, Heat Exchanger 1   MCM
8 37-8M0045575



DECAL SET, 8.2L High Output, Heat Exchanger 1   MCM
8 37-8M0045580



DECAL SET, 8.2L Base (MIE), Heat Exchanger 1
8 37-8M0045581



DECAL SET, 8.2L High Output (MIE), Heat Exchanger 1
9 10-4010730



SCREW, (M8 x 30) 2
10 843155001



FOAM STRIP (6.500 Inches) 2
11 885342002



SENSOR ASSEMBLY, Water Temperature 1
12 25-896699



O-RING, (1.78 mm x .08 mm) 1   2
13 54-815504212



CLAMP, Worm Gear 2
14 32-8M2017665



HOSE, Reservoir to Circulating Pump 1
15 22-629101



FITTING, Elbow - 90 Degree (.125-27) 1
16 8M0045230



HEAT EXCHANGER 1
17 27-891716



GASKET 1   2
18 8M0039163



O-RING, (3/8 x 1/8) 1   2
19 891717



COVER 1
20 10-98261



SCREW, (.375-16 x .750) 1
21 10-4010730



SCREW, (M8 x 30) 2
22 10-8M2017380



SCREW, (.4375-14 x 5.5) 1
23 8M2017984



PLATE, Heat Exchanger 2
24 25-20295



QUAD RING (1.725 x .210) 2   2
25 8M2017982



PLATE, Heat Exchanger 1
26 25-8071341



SEAL, Thermostat 1   2
27 8M0045990



THERMOSTAT 1
28 25-30529



O-RING, (1.925 x .103) 2   2
29 32-8M2019704



HOSE, Crossover to Circulating Pump 1
30 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 2
31 10-8M0043100



SCREW, (7/16-14 x 5.0), Crossover Port 1
32 8M0045236



CROSSOVER 1
33 10-8M0043101



SCREW, (7/16-14 X 3.5), Lower Crossover 2
34 22-32803

700-21894
PLUG, Pipe (.375-18) Brass 4
35 8M2000004



BRACKET, Flush Mount 1
36 54-65653



CLIP 1
37 10-4010612



SCREW, (M6 x 12) Stainless Steel 1
38 10-47461



SCREW, (.437-14 x 1.00), Reservoir Bracket to Head 2
39 12-27025



WASHER 2
