| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Description |
Num Req. |
Superseded From |
Special Notes |

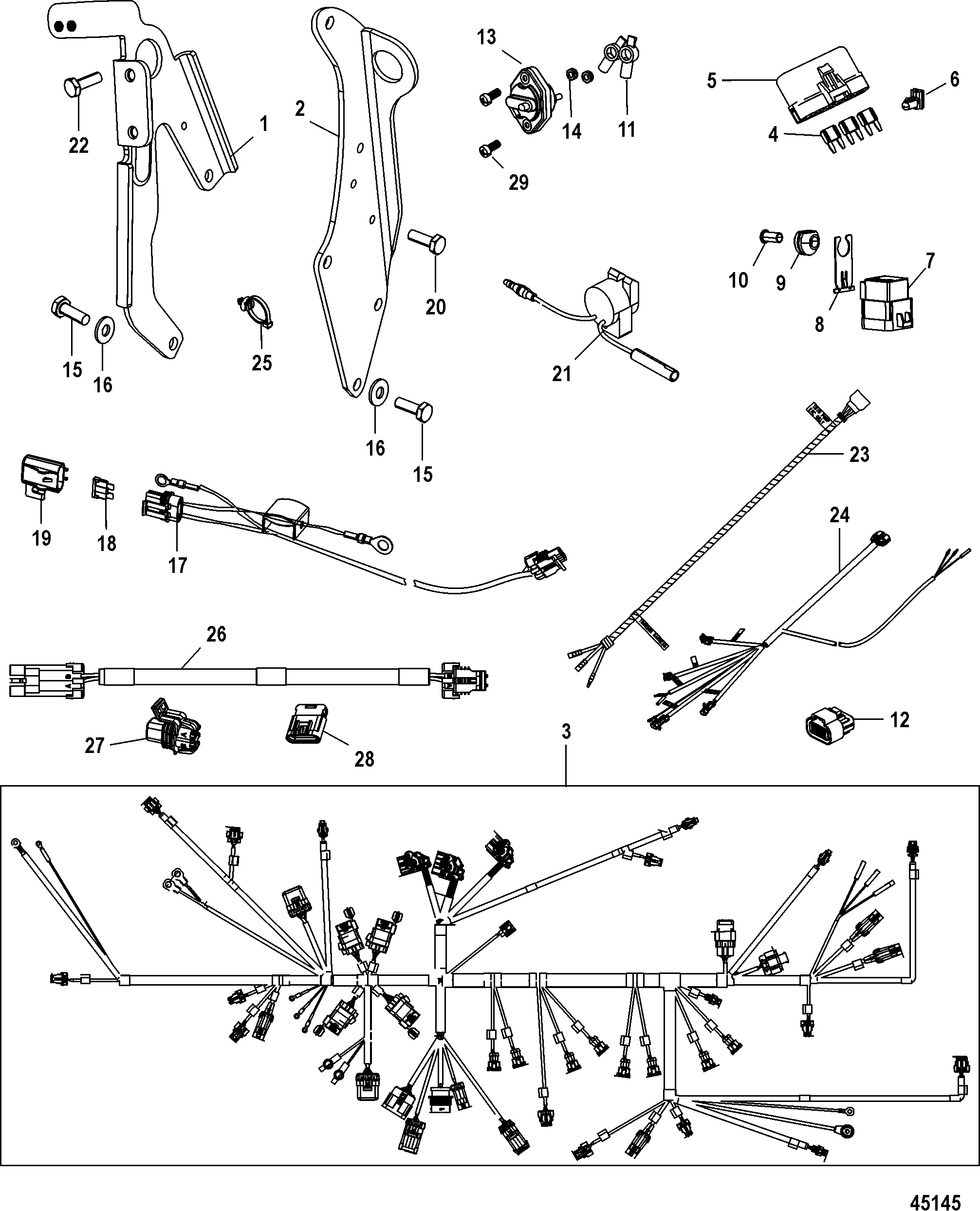

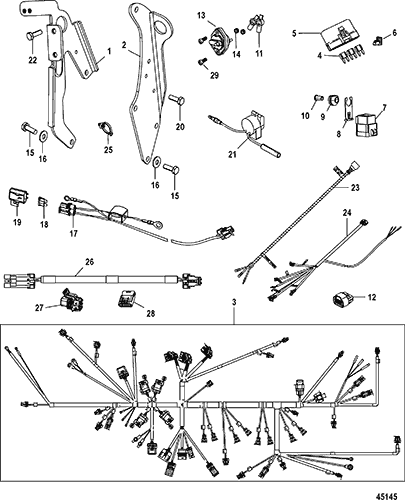

| 1 |
8M0050591 |
|
|
|
BRACKET, Lifting, Front |
1 |
|
|
| 2 |
8M0050537 |
|
|
|
BRACKET, Lifting, Rear |
1 |
|
|
| 3 |
84-8M0045252 |
|
|
|
HARNESS ASSEMBLY |
1 |
|
Mechanical |
| 3 |
84-8M0045253 |
|
|
|
HARNESS ASSEMBLY |
1 |
|
Digital Throttle & Shift |
| 4 |
88-832969T15 |
|
|
|
FUSE, Mini - Blue - 15 Ampere |
2 |
|
Mechanical Throttle & Shift |
| 4 |
88-832969T20 |
|
|
|
FUSE, Mini - Yellow - 20 Ampere |
3 |
88-83296920 |
Mechanical Throttle & Shift |
| 4 |
88-83296910 |
|
|
|
FUSE, Mini - Red - 10 Ampere |
5 |
|
Mechanical and Digital Throttle & Shift |
| 4 |
88-832969T20 |
|
|
|
FUSE, Mini - Yellow - 20 Ampere |
5 |
88-83296920 |
Digital Throttle & Shift |
| 5 |
858754 |
|
|
|
COVER, Fuse |
2 |
|
|
| 6 |
54-879962 |
|
|
|
CLIP |
2 |
|
|
| 7 |
882751A1 |
|
676-9-15210 |
700-73040 |
RELAY ASSEMBLY |
4 |
|
Mechanical Throttle & Shift |
| 7 |
882751A1 |
|
676-9-15210 |
700-73040 |
RELAY ASSEMBLY |
5 |
|
Digital Throttle & Shift |
| 8 |
828102 |
|
|
|
BRACKET |
4/5 |
|
|
| 9 |
25-818967 |
|
|
|
GROMMET |
4/5 |
|
|
| 10 |
23-818968 |
|
|
|
BUSHING |
4/5 |
|
|
| 11 |
85-89919 |
|
|
|
BOOT, Insulator - Black |
2 |
|
|
| 12 |
859318T1 |
|
|
|
TERMINATOR, 10 Pin (CAN 1 and 2) |
1 |
|
Mechanical Throttle & Shift |
| 12 |
8M0055652 |
|
|
|
TERMINATOR ASSEMBLY, 10 Pin (CAN 1P and H) |
1 |
|
Digital Throttle & Shift |
| 13 |
88-11178A01 |
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-865827T |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 14 |
11-826709106 |
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 15 |
10-47461 |
|
|
|
SCREW, (.437-14 x 1.00) |
5 |
|
|
| 16 |
12-22248 |
|
|
|
WASHER, (.453 x .875 x .060) |
5 |
|
|
| 17 |
84-888416T04 |
|
|
|
HARNESS ASSEMBLY |
1 |
|
|
| 18 |
862646 |
|
|
|
FUSE, Tan - 5 Ampere |
1 |
|
|
| 19 |
828054 |
|
|
|
COVER, Fuse |
1 |
|
|
| 20 |
10-4010720 |
|
|
|
SCREW, (M8 x 20), Rear Lifting Eye to Shift Bracket |
2 |
|
|
| 21 |
816492A15 |
|
|
|
ALARM KIT |
1 |
|
|
| 22 |
10-4010820 |
|
|
|
SCREW, (M10 x 20) Hex Flange - Stainless Steel, Front Lifting Eye to Remote Oil |
2 |
|
|
| 23 |
84-865774T01 |
|
|
|
HARNESS ASSEMBLY, Trim Pump |
1 |
|
|
| 24 |
84-865677T01 |
|
|
|
HARNESS ASSEMBLY, Transom Harness |
1 |
|
|
| 25 |
54-899145 |
|
|
|
CLIP, Tie Strap |
1 |
|
|
| 26 |
8M0050593 |
|
|
|
HARNESS, Adaptor, Exhaust Temperature |
1 |
|
|
| 27 |
8M2020214 |
|
|
|
CAP ASSEMBLY, Weather |
1 |
|
|
| 28 |
8M2020357 |
|
|
|
CAP ASSEMBLY, Weather |
1 |
|
|
| 29 |
10-830861 |
|
|
|
SCREW, (#8-32 x .625) |
2 |
|
|
