8.2L Mag (Base or HO) - Serial 1A351597 and Up - Seawater Pump

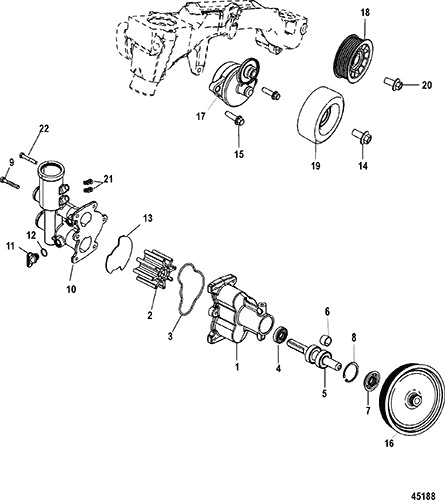

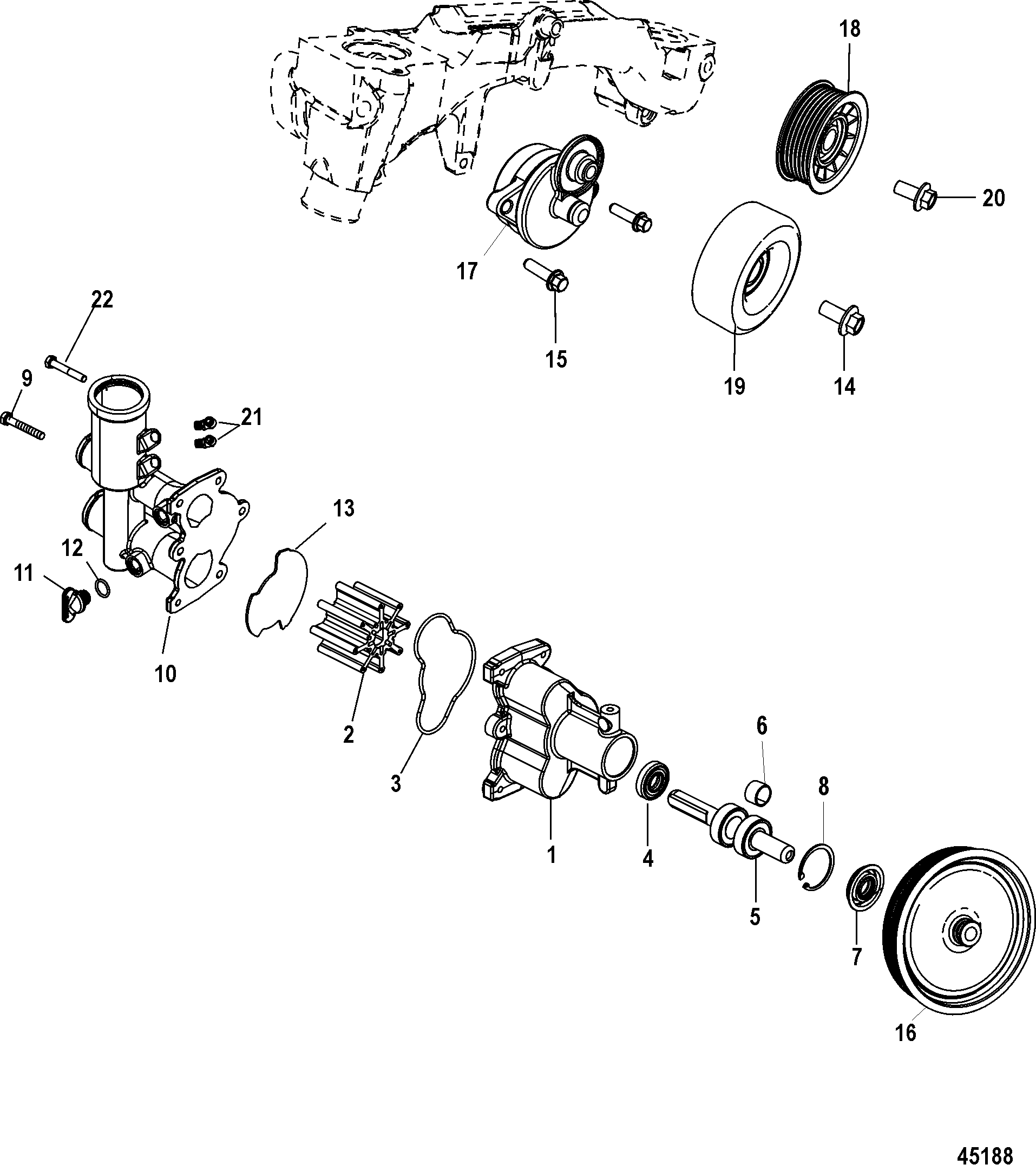

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 46-862914T10



PUMP KIT, Sea Water, Without Air Fittings 1

- 46-862914T11



PUMP KIT, Sea Water, With Air Fittings 1

1 46-862914A13



HOUSING ASSEMBLY, Impeller 1

2 47-8M0104229



IMPELLER 1

3 8M2021987



O-RING, Formed 1

- 8M0050018



DRIVESHAFT ASSEMBLY KIT 1

4 26-8M2001645



SEAL, Oil 1

5 8M0050018



DRIVESHAFT ASSEMBLY, Impeller 1 862235A1
6 NSS



NOT SOLD SEPARATE, SPACER 1
This Part is not sold separately
7 26-862040



SEAL, Lip 1

8 NSS



NOT SOLD SEPARATE, SNAP RING 1
This Part is not sold separately
9 10-4000328



SCREW, (M6 x 16) 6

10 863674A04



COVER KIT, Impeller Housing 1

11 22-806608A02



PLUG ASSEMBLY, (.500-13) Blue 2

12 25-26802



SEAL 2 25-8M2000926 2
13 8M2014176



PLATE, Wear 1

14 10-4010820



SCREW, (M10 x 20) Hex Flange - Stainless Steel 1
15 10-88552630



SCREW, (M8 x 30) 2
16 879172T78



PULLEY 1
17 865597T



TENSIONER, Belt 1
18 807757T



PULLEY ASSEMBLY, Idler - Black 1
19 865777



PULLEY, Idler, Non-Grooved 1
20 10-4010820



SCREW, (M10 x 20) Hex Flange - Stainless Steel 1
21 22-863719



FITTING, Orange - Straight 1
21 22-863718



FITTING, Gray - Straight 1
22 10-865152



SCREW, (M6) 2
