8.2L Mag (Base or HO) - Serial 1A351597 and Up - Cooling System, Raw Water Components, Starboard

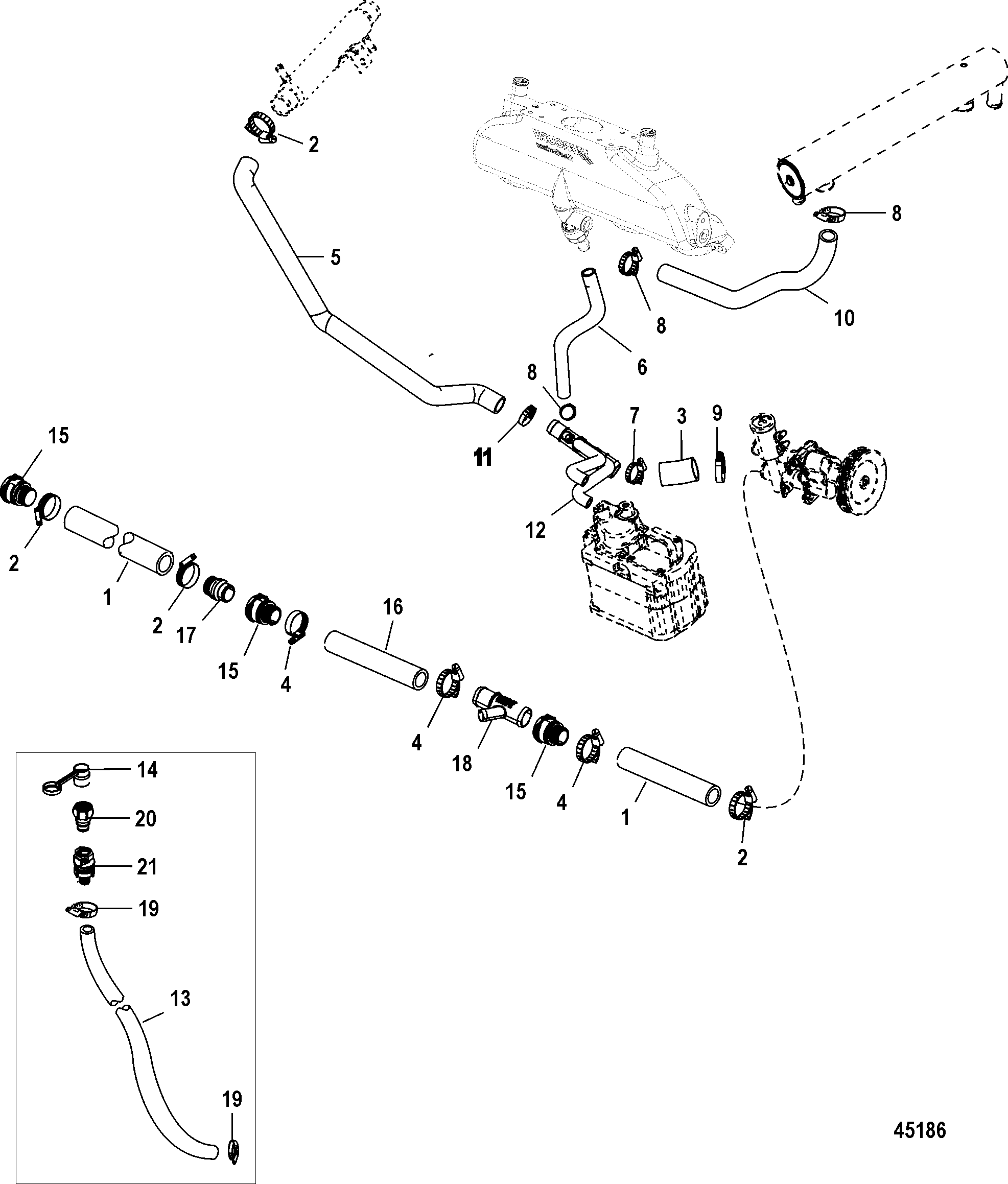

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-865672079



HOSE, (96.00 Inches Bulk) 1
(Cut to Fit)
2 54-815504228



CLAMP, Worm Gear AR

3 32-8M2017358



HOSE, Sea Water Pump to Fitting 1

4 54-815504222



CLAMP, Worm Gear (1.98 DIameter) 2

5 32-8M2018801



HOSE, Water Orifice to Power Steering Cooler 1

6 32-4285069



HOSE, (44.00 Inches Bulk), Drain Fitting to Orifice Meter 1
(Cut to 11 Inches)
7 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 1

8 54-815504216



CLAMP, Worm Gear (1.56 Diameter) AR

9 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 1

10 8M2020245



HOSE, Heat Exchanger to Drain Fitting 1

11 54-815504228



CLAMP, Worm Gear 1

12 8M0045363



HOSE ASSEMBLY, 3 Bib Orifice Meter 1

13 32-8M0062635



HOSE, (42 Inches), Water 1 32-8M2019902
14 861427



CAP 1

15 22-865324



QUICK CONNECT 2

15 22-865324



QUICK CONNECT 1
SeaCore Flush
16 32-865672079



HOSE, (96.00 Inches Bulk) 1
(Cut to 14.50)
17 22-865362



QUICK CONNECT 1

18 22-8M4501756



FITTING 1
SeaCore
19 54-815504212



CLAMP, Worm Gear 1

20 22-857175



FITTING 1 22-861405
21 22-861406



SOCKET 1
