8.2L Mag (Base or HO) - Serial 1A351597 and Up - Cylinder Head

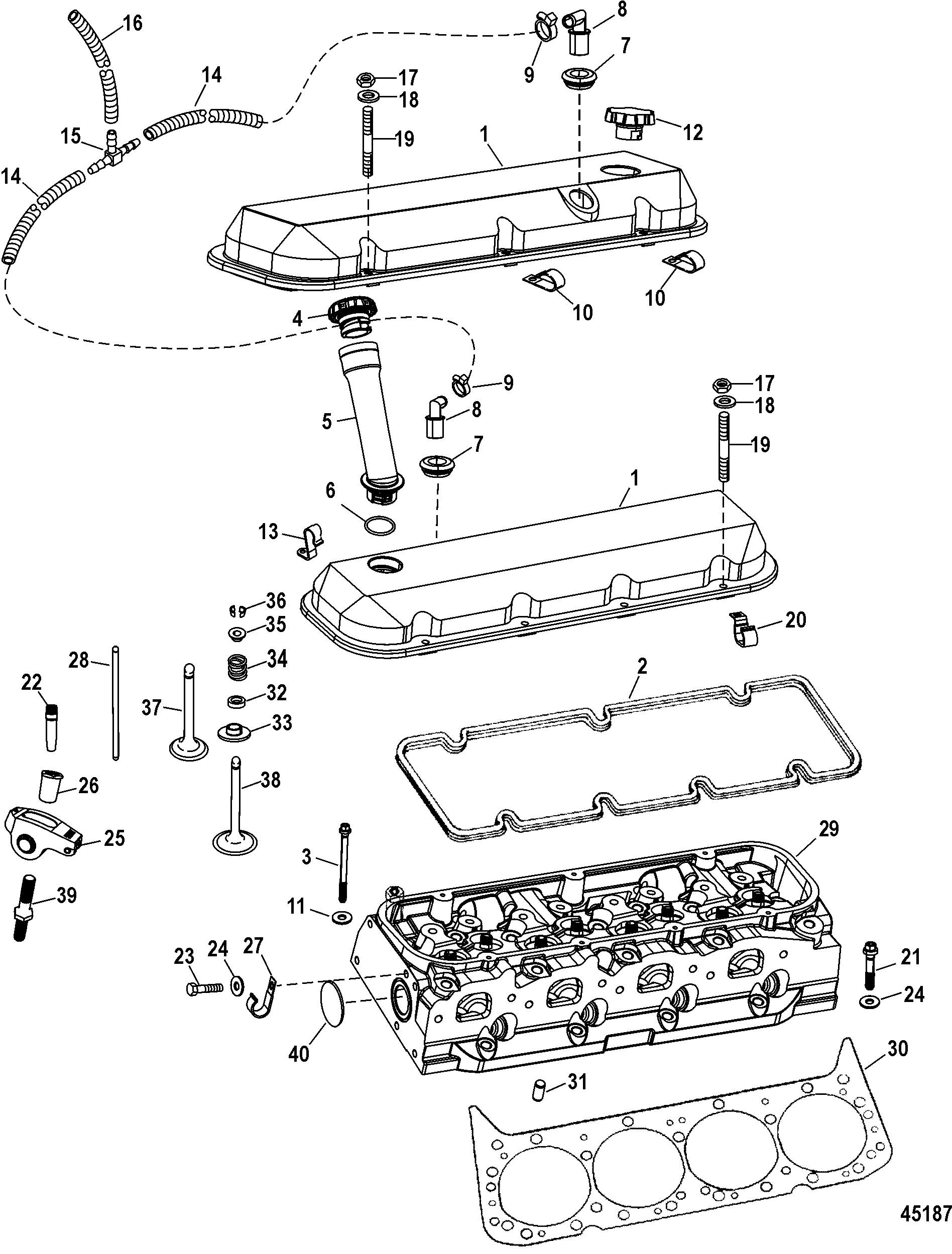

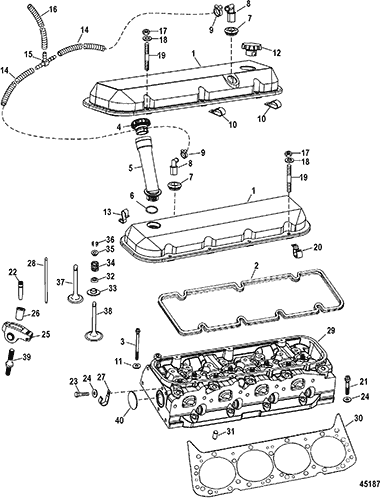

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0045254



COVER ASSEMBLY, Rocker 2

2 27-811588



GASKET, Rocker Cover 2
2
3 10-8M0000467



SCREW, (.438-14 x 5.060) Black Oxide 10
5
3 10-8M0000482



SCREW, (.438-14 x 4.060) Black Oxide 14
5
4 378M0065093



CAP, Oil Fill 1 36-8M0045794
5 8M0045749



TUBE, Oil FIll 1

6 NSS



NOT SOLD SEPARATE, O-RING 1
This Part is not sold separately
7 25-811553



GROMMET 2
2,5
8 97850T



ELBOW, 90 Degree, Breather 2 97850
9 54-816311T

700-21465
TIE STRAP, (8.00 Inches) 2

10 54-858951



J CLIP 2
5
11 12-841990



WASHER, Special - Black 32
5
12 845753T1



CAP, Oil Fill 2
5
13 54-42553



J CLIP 1
5
14 32-1589431



TUBING, (20.00 Inches Bulk), Cut 2 Pieces - 8.5 Inches AR

15 22-849999



FITTING, Tee 1

16 32-1589431



TUBING, (20.00 Inches Bulk), Cut As Required AR

17 11-8267089



NUT, (.250-28) 14
5
18 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 14
5
19 16-56766



STUD, (.250-20/.250-28 x 1.380) 14
5
20 54-15095



J CLIP 1

21 10-8M0000463



SCREW, (.438-14 x 2.060) Black Oxide 8
5
22 840942



GUIDE, Pushrod 8
5
23 10-99204



SCREW, (.437-14 x 1.00) Stainless Steel 1

24 12-45176



WASHER, (.453 x .812 x .105) Stainless Steel 1

25 8M0045762



ROCKER ARM ASSEMBLY 16
5
26 8M0043537



NUT, Rocker 16
5
27 54-843142



J CLIP 1

28 848262



PUSH ROD, (7.550) 8
Intake 5
28 848264



PUSH ROD, (8.550) 8
Exhaust 5
29 8M0046344



CYLINDER HEAD ASSEMBLY 2
5
30 27-811546A04



GASKET KIT, Cylinder Head 2
2,5
31 17-843931



PIN, Dowel, Cylinder Head Gasket Locator 4
2,5
32 26-842755



SEAL, Valve, Intake And Exhaust 16
2,5
33 840678



SEAT, Spring 16
5
34 24-8M0042978



SPRING, Valve 8
5
35 8M0043175



RETAINER, Valve Spring 8
5
36 8M0042576



KEY, Valve Stem 32
5
37 8M0046324



VALVE, Intake 8
5
38 8M0046325



VALVE, Exhaust 8
5
39 95820



STUD, Rocker Arm Valve 8
Intake 5
39 16-843129



STUD, Rocker Arm Valve 8
Exhaust 5
40 19-47463



EXPANSION PLUG 2
5
