8.2L Mag (Base or HO) - Serial 1A351597 and Up - Drain Fitting Assembly

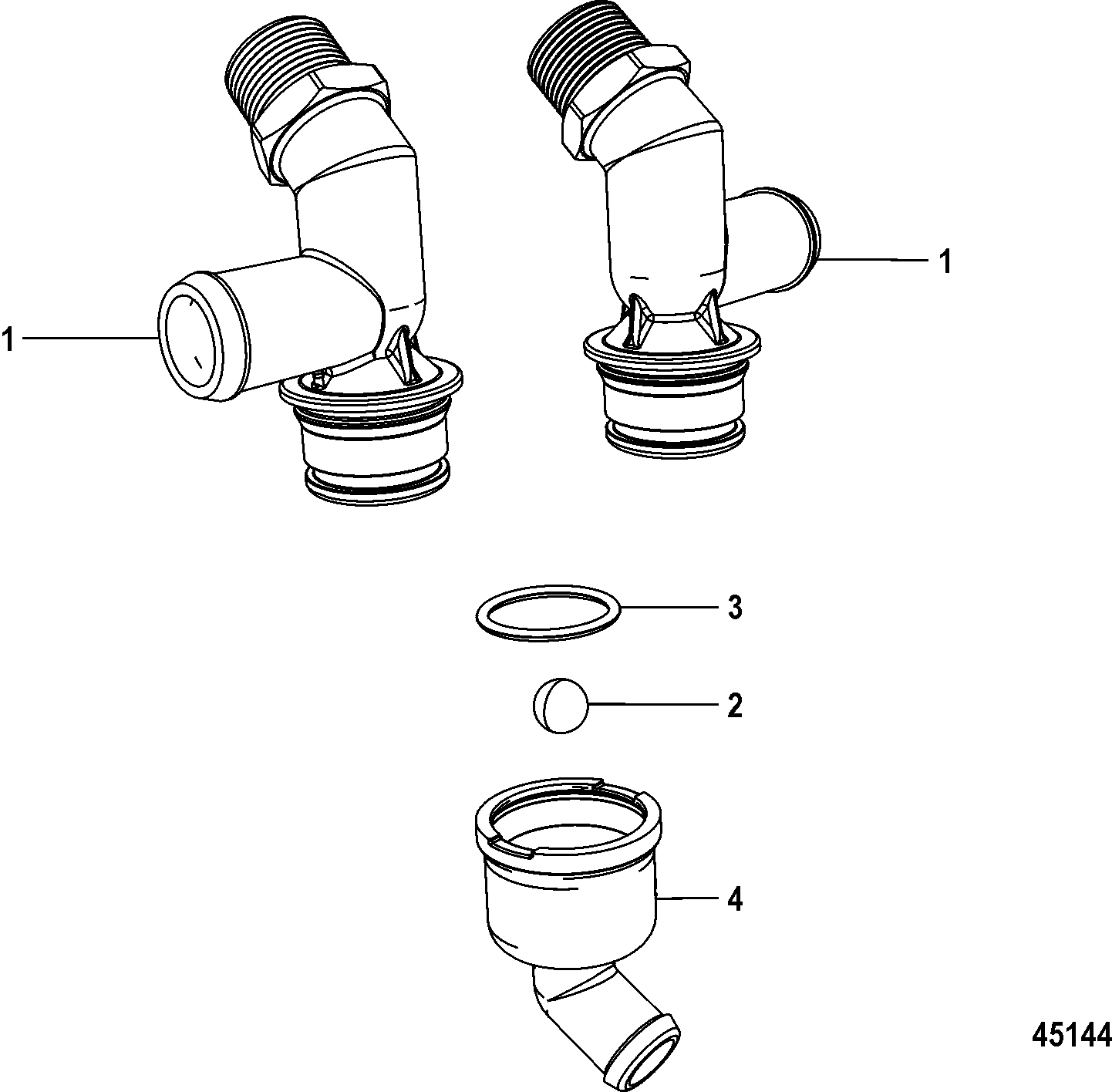

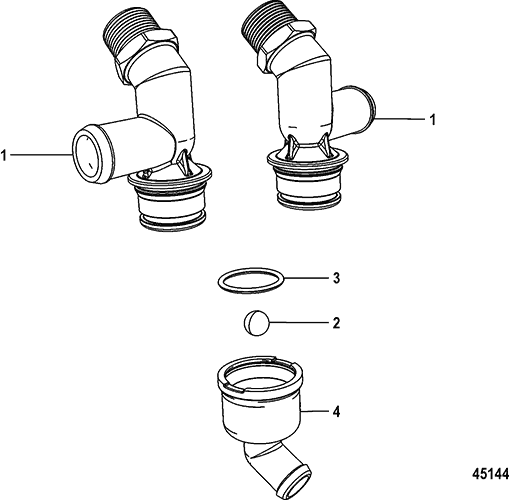

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drain Fitting Assembly
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-865828A02 | FITTING ASSEMBLY, Drain - Stainless Steel | 1 | Starboard | |||||
| 1 | 8M0050599 | FITTING ASSEMBLY, Drain | 1 | Port | |||||
| 2 | 30-863129 | BALL | 1 | ||||||
| 3 | 25-864701 | O-RING, (1.112 x .103) | 1 | ||||||
| 5 | 8M2022151 | FITTING | 1 |
