496 Mag HO Model - Serial 1A066166 Thru 1A350678 - Axius Steering, Hoses (Non-HP Filter) 1A349742 And Below

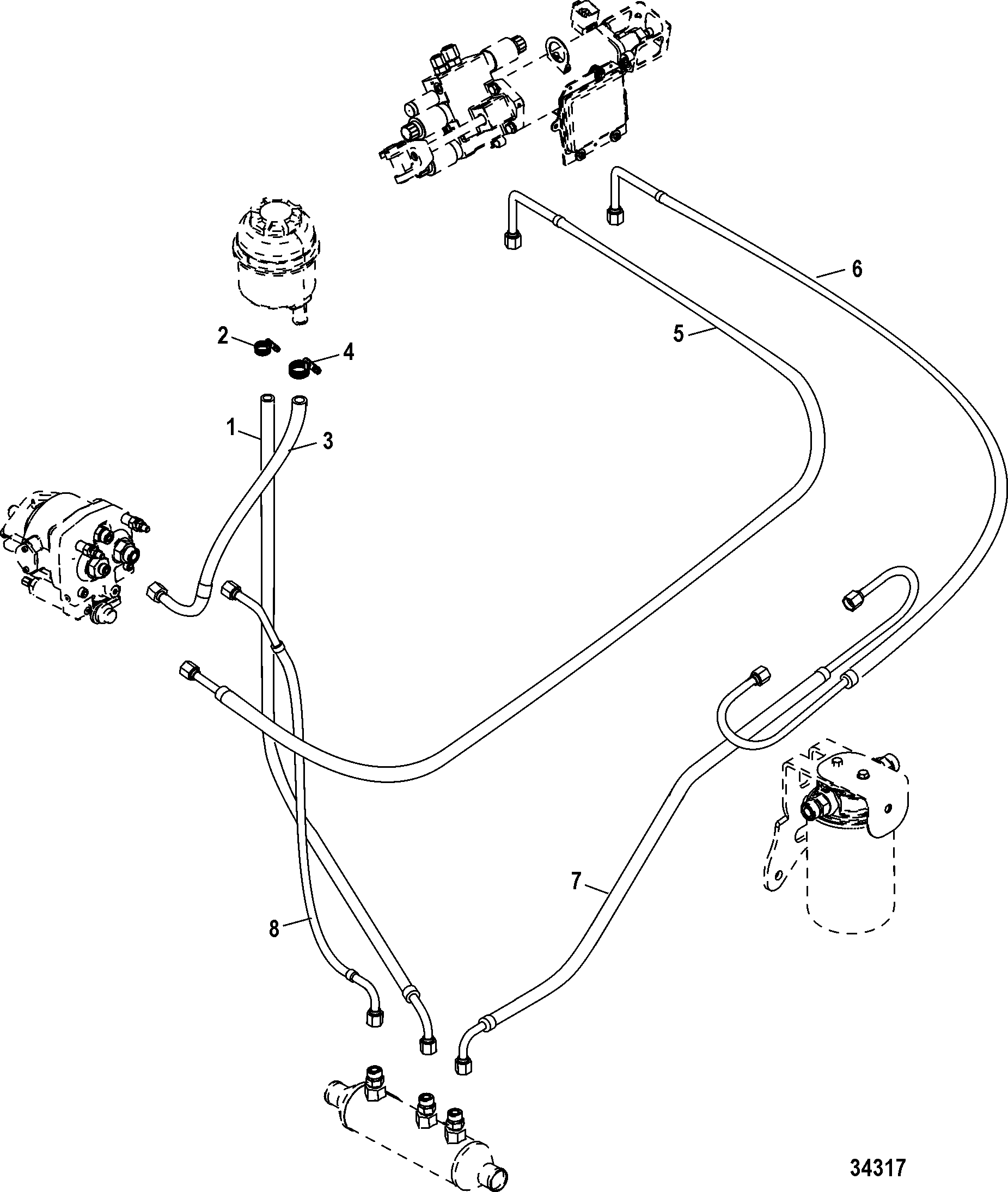

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Axius Steering Components, Hydraulic Pump And Reservoir
- Axius Steering Components, Oil Cooler And Bracket
- Axius Steering, Fluid Filter (HP) 1A349743 And Above
- Axius Steering, Fluid Filter (Non-HP) 1A349742 And Below
- Axius Steering, High Pressure Filter Conversion Kit
- Axius Steering, Hoses (HP Filter) 1A349743 And Above
- Axius Steering, Hoses (Non-HP Filter) 1A349742 And Below
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System, 1A349419 and Below
- Cool Fuel System, 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port (Axius)
- Cooling System, Raw Water Components, Port (Bravo)
- Cooling System, Raw Water Components, Starboard
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Axius
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M2006304 | HOSE, Reservoir to Cooler | 1 | ||||||
| 2 | 54-815504104 | CLAMP, (8 - 16 mm) | 1 | 54-8M2001484 | |||||
| 3 | 32-8M2012143 | HOSE, Reservoir to Pump | 1 | ||||||
| 4 | 54-815504210 | CLAMP, Worm Gear (16-27 mm) | 1 | 54-8M2001486 | |||||
| 5 | 32-8M2009506 | HOSE, Pump to Actuator | 1 | ||||||
| 6 | 32-8M2006305 | HOSE, Actuator to Filter | 1 | ||||||
| 7 | 32-8M2006307 | HOSE, Filter to Cooler | 1 | ||||||
| 8 | 32-8M2006303 | HOSE, Pump to Cooler | 1 | ||||||
| - | 879172A19 | DUST CAP KIT | 1 |
