496 Mag HO Model - Serial 1A066166 Thru 1A350678 - Oil Pan And Drain System

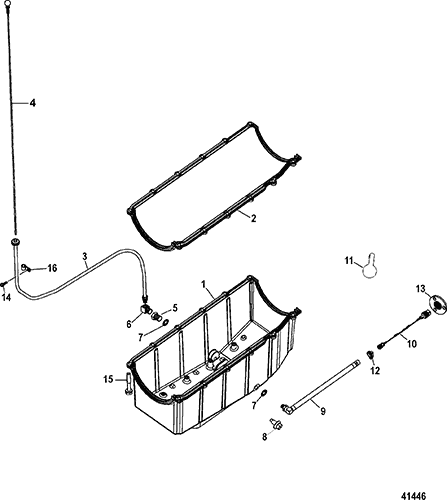

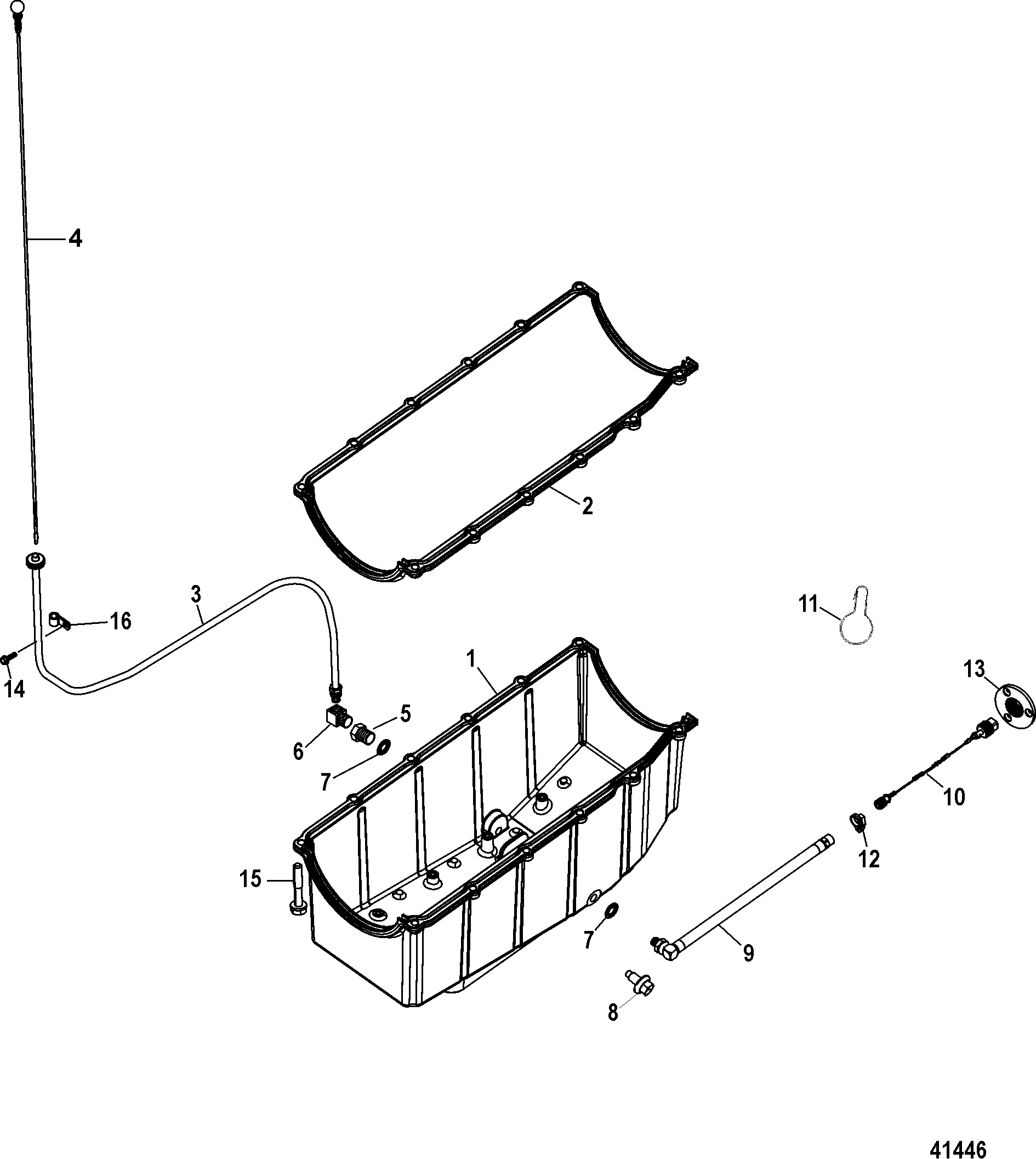

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Axius Steering Components, Hydraulic Pump And Reservoir
- Axius Steering Components, Oil Cooler And Bracket
- Axius Steering, Fluid Filter (HP) 1A349743 And Above
- Axius Steering, Fluid Filter (Non-HP) 1A349742 And Below
- Axius Steering, High Pressure Filter Conversion Kit
- Axius Steering, Hoses (HP Filter) 1A349743 And Above
- Axius Steering, Hoses (Non-HP Filter) 1A349742 And Below
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System, 1A349419 and Below
- Cool Fuel System, 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port (Axius)
- Cooling System, Raw Water Components, Port (Bravo)
- Cooling System, Raw Water Components, Starboard
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Axius
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 881653001 | PAN, Oil | 1 | 4,5 | |||||
| NS | 883922 | BAFFLE, Oil Pan | 1 | 4,5 | |||||
| NS | 10-883923 | SCREW, (M6 x 20) | AR | 4,5 | |||||
| 2 | 27-881612 | GASKET, Oil Pan | 1 | 2,4,5 | |||||
| 3 | 865217 | TUBE, Engine Oil Gauge | 1 | ||||||
| 4 | 86194210 | GAUGE, Oil Level | 1 | ||||||
| 5 | 863389A01 | FITTING, Oil Guage Tube | 1 | 22-863389 | |||||
| 6 | 22-19697 | ELBOW | 1 | ||||||
| 7 | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 2 | 2,3 | |||
| 8 | 10-809911001 | SCREW KIT, Drain | 1 | SN# 1A349411 & Up | |||||
| 9 | 32-865281 | HOSE, Oil Drain | 1 | SN# 1A349410 & Below | |||||
| 9 | 32-865280 | HOSE, Oil Drain | 1 | Jackshaft Models SN# 1A349410 & Below | |||||
| NS | 25-805063 | O-RING, (.301 x .070) | 2 | SN# 1A349410 & Below | |||||
| 10 | 862827 | TETHER ASSEMBLY | 1 | SN# 1A349410 & Below | |||||
| 11 | 54-805524 | CLIP | 1 | SN# 1A349410 & Below | |||||
| 12 | 54-863481 | CLAMP | 1 | SN# 1A349410 & Below | |||||
| 13 | 862777 | FLANGE, Drain | 1 | SN# 1A349410 & Below | |||||
| 14 | 10-4000328 | SCREW, (M6 x 16) | 1 | ||||||
| 15 | 10-898101392 | BOLT, (M8 x 30) | 13 | ||||||
| 16 | 54-65653 | CLIP | 1 |
