496 Mag HO Model - Serial 1A066166 Thru 1A350678 - Engine Cover

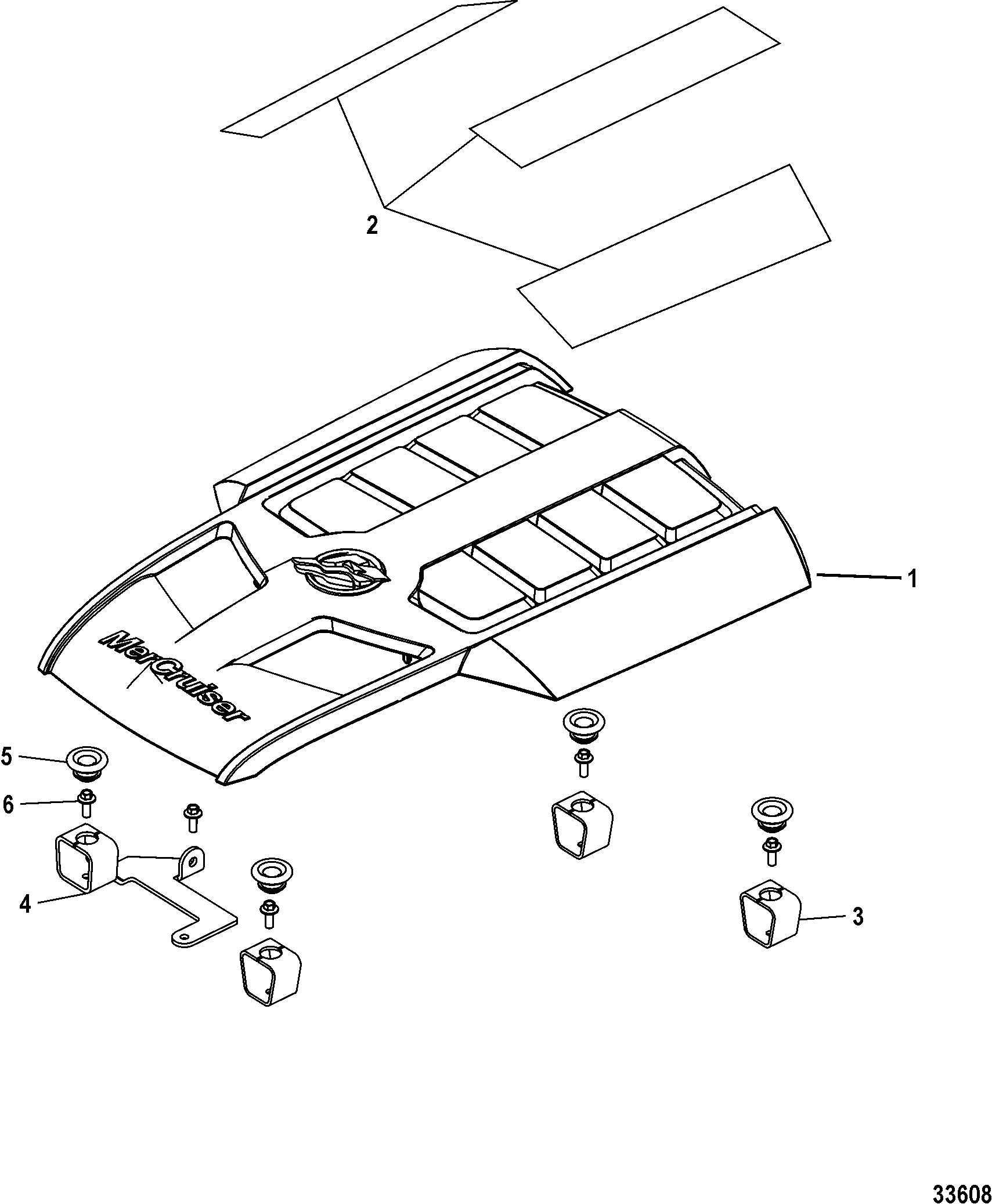

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Axius Steering Components, Hydraulic Pump And Reservoir
- Axius Steering Components, Oil Cooler And Bracket
- Axius Steering, Fluid Filter (HP) 1A349743 And Above
- Axius Steering, Fluid Filter (Non-HP) 1A349742 And Below
- Axius Steering, High Pressure Filter Conversion Kit
- Axius Steering, Hoses (HP Filter) 1A349743 And Above
- Axius Steering, Hoses (Non-HP Filter) 1A349742 And Below
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System, 1A349419 and Below
- Cool Fuel System, 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port (Axius)
- Cooling System, Raw Water Components, Port (Bravo)
- Cooling System, Raw Water Components, Starboard
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Axius
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879288T19 | COVER, Engine | 1 | ||||||
| 2 | 37-879288A41 | DECAL SET | 1 | 496 Base | |||||
| 2 | 37-879288A42 | DECAL SET | 1 | 496 H.O. | |||||
| 2 | 37-879288A23 | DECAL SET | 1 | 496 Base Seacore | |||||
| 2 | 37-879288A48 | DECAL SET | 1 | 496 H.O. Seacore | |||||
| 2 | 37-879172A09 | DECAL SET | 1 | 496 Base Axius | |||||
| 2 | 37-879172A10 | DECAL SET | 1 | 496 H.O. Axius | |||||
| 2 | 37-879172A04 | DECAL SET | 1 | 496 Base Axius Seacore | |||||
| 2 | 37-879172A05 | DECAL SET | 1 | 496 H.O. Axius Seacore | |||||
| 3 | 8M2003380 | BRACKET | 4 | Digital Throttle | |||||
| 3 | 8M2003380 | BRACKET | 3 | Mechanical | |||||
| 4 | 8M2005404 | BRACKET | 1 | ||||||
| 5 | 25-8M2001671 | GROMMET | 4 | ||||||
| 6 | 10-4010612 | SCREW, (M6 x 12) Stainless Steel | 5 |
