496 Mag HO Model - Serial 1A066166 Thru 1A350678 - Gasket Set Components (27-883231A1), Engine

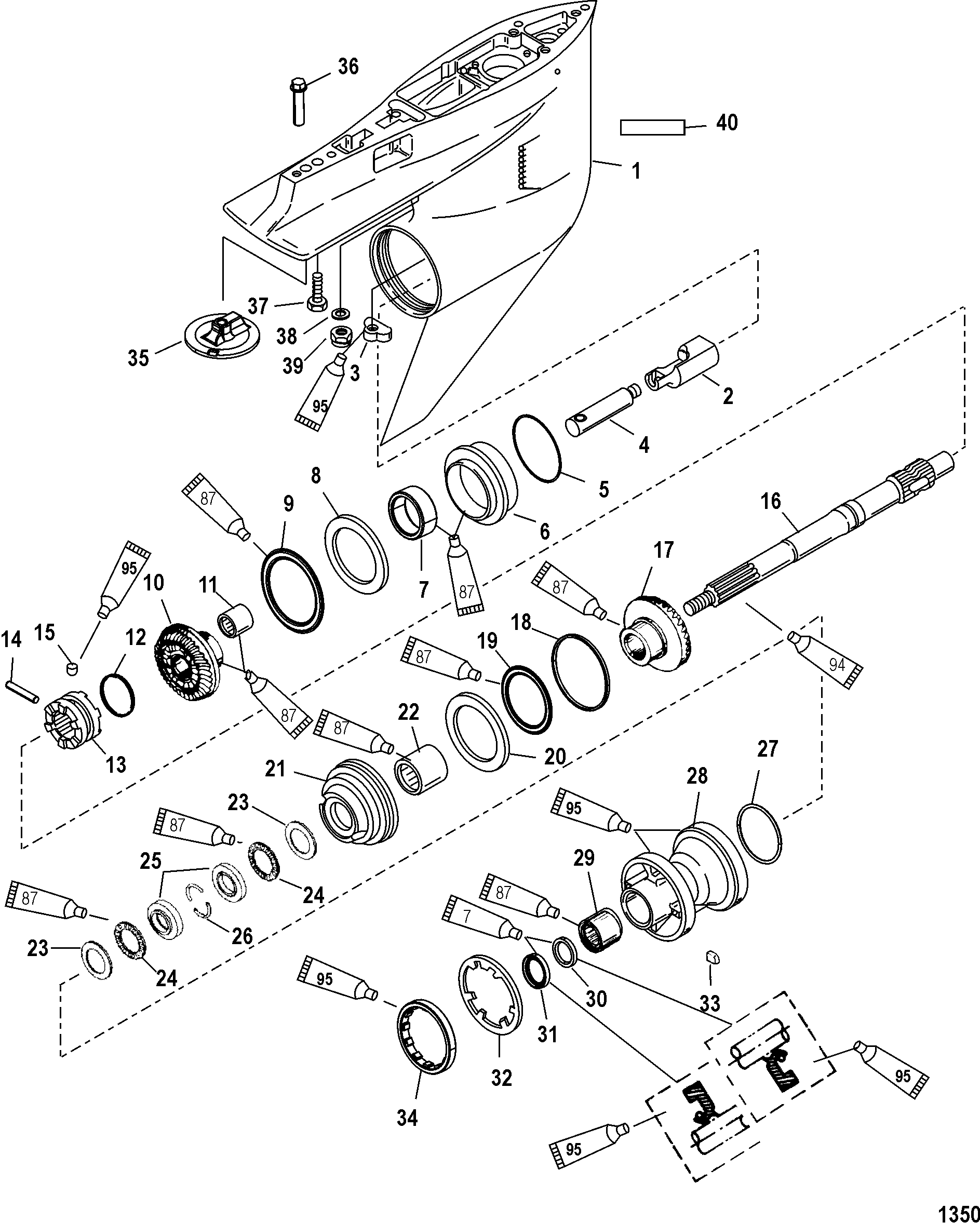

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Axius Steering Components, Hydraulic Pump And Reservoir
- Axius Steering Components, Oil Cooler And Bracket
- Axius Steering, Fluid Filter (HP) 1A349743 And Above
- Axius Steering, Fluid Filter (Non-HP) 1A349742 And Below
- Axius Steering, High Pressure Filter Conversion Kit
- Axius Steering, Hoses (HP Filter) 1A349743 And Above
- Axius Steering, Hoses (Non-HP Filter) 1A349742 And Below
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System, 1A349419 and Below
- Cool Fuel System, 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port (Axius)
- Cooling System, Raw Water Components, Port (Bravo)
- Cooling System, Raw Water Components, Starboard
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Axius
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 27-883231A1 | GASKET SET, Engine | 1 | ||||||
| - | 25-32509 | O-RING, (.489 x .070) | 4 | ||||||
| - | 25-8071341 | SEAL | 1 | ||||||
| - | 26-42077 | SEAL | 2 | ||||||
| - | 26-861947 | SEAL | 1 | ||||||
| - | 26-865066 | SEAL, Heat Exchanger to Crossover | 2 | ||||||
| - | 26-862957 | SEAL, Oil Filter Adaptor | 1 | ||||||
| - | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 2 | ||||
| - | 27-863112 | GASKET, Idle Air Valve | 1 | ||||||
| - | 27-863215 | GASKET, Throttle Body | 2 | ||||||
| - | 27-863285 | GASKET, Air Valve | 1 | ||||||
| - | 27-881620001 | GASKET, Cylinder Head to Crossover | 2 | ||||||
| - | 27-46820 | 676-9-61400 | 700-33760 | GASKET, Exhaust Manifold to Cylinder Head | 2 |
