496 Mag HO Model - Serial 1A066166 Thru 1A350678 - Cooling System, Raw Water Components, Starboard

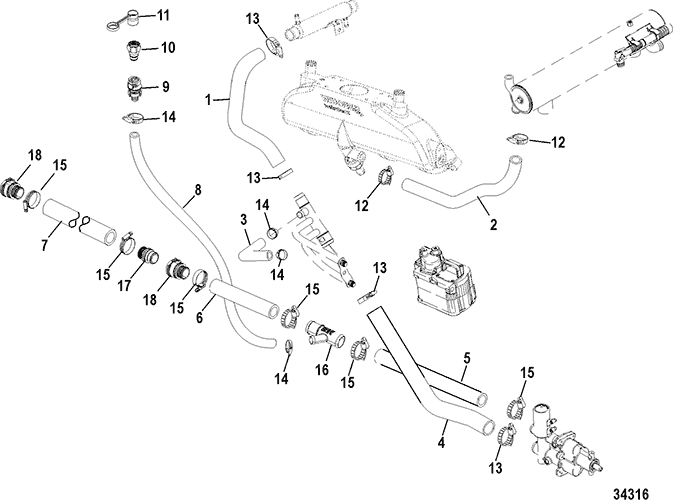

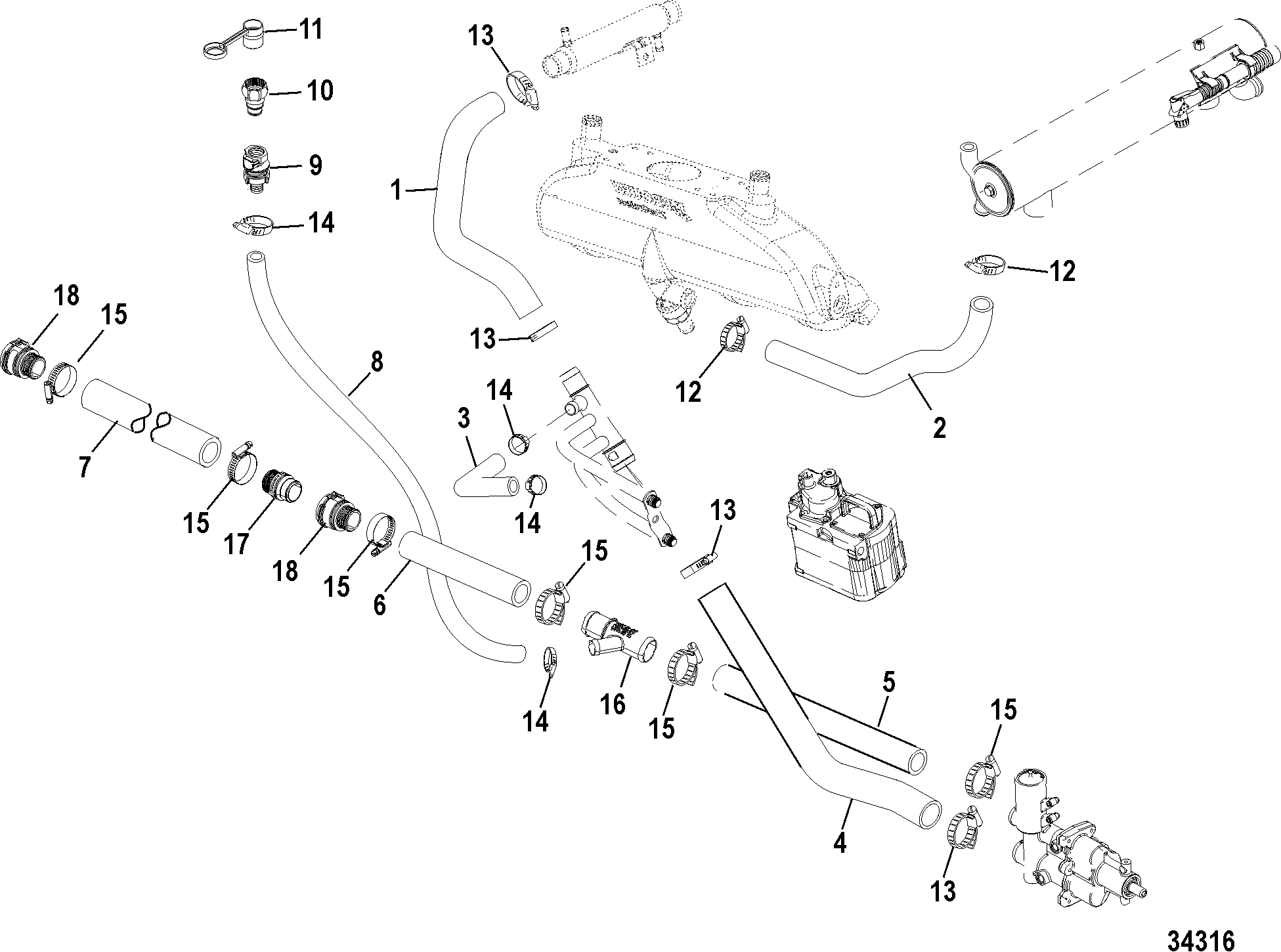

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Axius Steering Components, Hydraulic Pump And Reservoir
- Axius Steering Components, Oil Cooler And Bracket
- Axius Steering, Fluid Filter (HP) 1A349743 And Above
- Axius Steering, Fluid Filter (Non-HP) 1A349742 And Below
- Axius Steering, High Pressure Filter Conversion Kit
- Axius Steering, Hoses (HP Filter) 1A349743 And Above
- Axius Steering, Hoses (Non-HP Filter) 1A349742 And Below
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System, 1A349419 and Below
- Cool Fuel System, 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port (Axius)
- Cooling System, Raw Water Components, Port (Bravo)
- Cooling System, Raw Water Components, Starboard
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Axius
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865235 | HOSE, Water Orifice to Power Steering Cooler | 1 | ||||||
| 2 | 32-865294 | HOSE, Heat Exchanger to Starboard Exhaust Manifold Drain | 1 | ||||||
| 3 | 32-865713 | HOSE, Exhaust Manifold Drain to Water Orifice | 1 | ||||||
| 4 | 32-865865 | HOSE, Sea Water Pump to Water Orifice | 1 | ||||||
| 5 | 32-8M0062665 | HOSE, (48.00 Inches Bulk) | 1 | 32-865672070 | Cut to 19 inches | ||||
| 6 | 32-86567231 | HOSE, (13.00 Inches) | 1 | Cut to 10 Inches | |||||
| 7 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | Cut to Length | |||||
| 8 | 32-8M0062635 | HOSE, (34 Inches) | 1 | 32-86438765 | Cut to Length | ||||
| 9 | 22-861406 | SOCKET, Flush Adaptor | 1 | ||||||
| 10 | 22-857175 | FITTING, Flush Adaptor | 1 | 22-861405 | |||||
| 11 | 861427 | CAP, Flush Adaptor | 1 | ||||||
| 12 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | 2 | ||||||
| 13 | 54-815504224 | CLAMP, Worm Gear | 4 | ||||||
| 14 | 54-815504212 | CLAMP, Worm Gear | 4 | ||||||
| 15 | 54-8M2001502 | CLAMP | 6 | ||||||
| 16 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 1 | ||||||
| 17 | 22-865362 | QUICK CONNECT, Male | 1 | ||||||
| 18 | 22-865324 | QUICK CONNECT, Female | 2 |
