496 Mag HO Model - Serial 1A066166 Thru 1A350678 - Remote Oil System

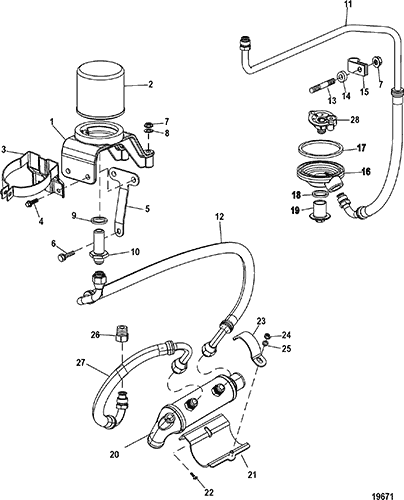

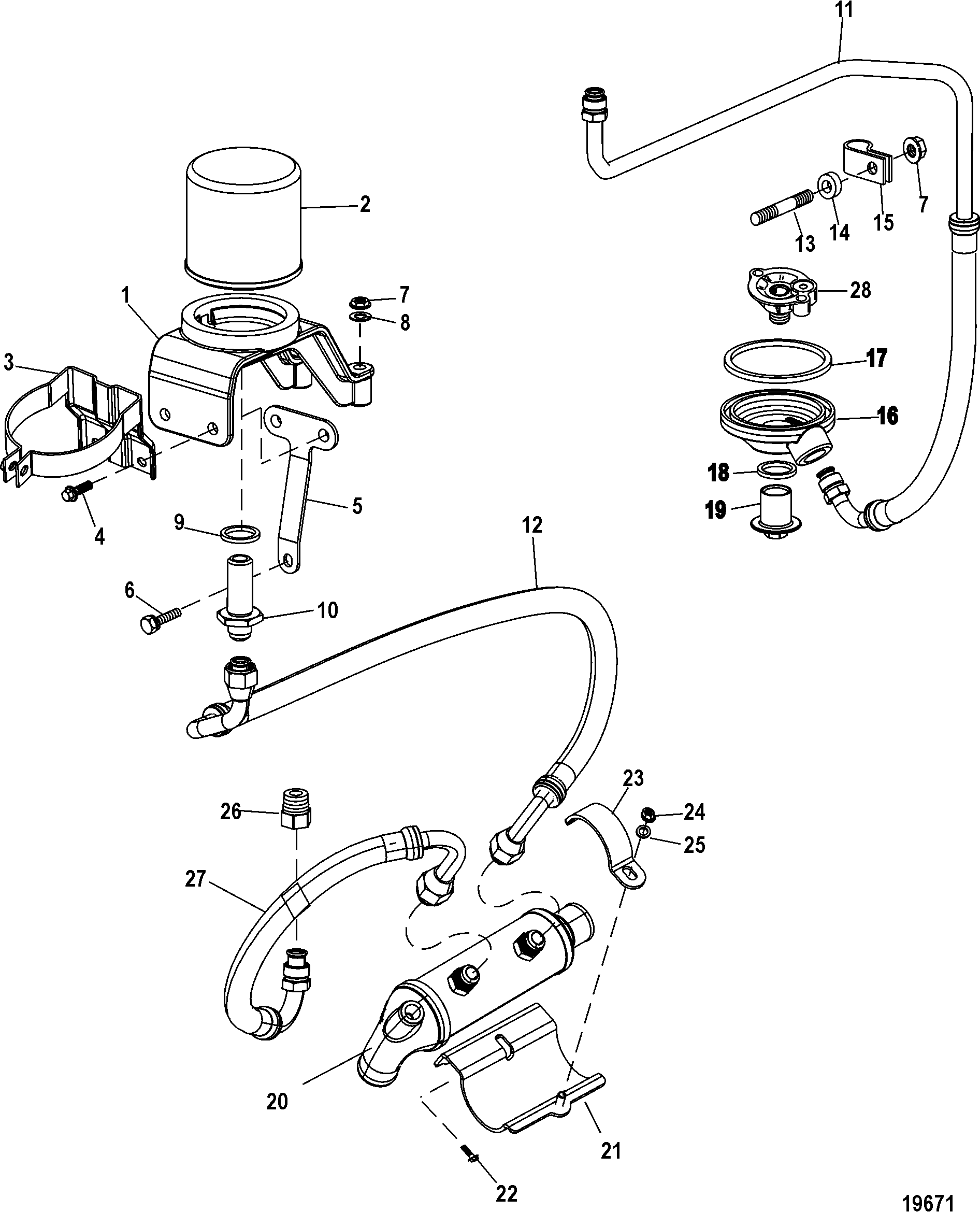

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Axius Steering Components, Hydraulic Pump And Reservoir
- Axius Steering Components, Oil Cooler And Bracket
- Axius Steering, Fluid Filter (HP) 1A349743 And Above
- Axius Steering, Fluid Filter (Non-HP) 1A349742 And Below
- Axius Steering, High Pressure Filter Conversion Kit
- Axius Steering, Hoses (HP Filter) 1A349743 And Above
- Axius Steering, Hoses (Non-HP Filter) 1A349742 And Below
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System, 1A349419 and Below
- Cool Fuel System, 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port (Axius)
- Cooling System, Raw Water Components, Port (Bravo)
- Cooling System, Raw Water Components, Starboard
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Axius
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical Shift
- Smartcraft Sensor And Harnesses
- Starter And Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 862342T | BRACKET, Remote Oil Filter | 1 | ||||||
| 2 | 35-866340Q03 | FILTER, Oil | 1 | 35-802885Q | |||||
| 3 | 865262A02 | BRACKET ASSEMBLY | 1 | 865262A01 | |||||
| 4 | 10-4010720 | SCREW, (M8 x 20) | 2 | ||||||
| 5 | 8629102 | BRACKET, Support | 1 | ||||||
| 6 | 10-4010716 | SCREW, (M8 x 16), Flange | 1 | ||||||
| 7 | 11-4002030 | NUT, (M8) | 3 | ||||||
| 8 | 12-12038 | WASHER | 3 | ||||||
| 9 | 26-42077 | SEAL | 1 | 2,3 | |||||
| 10 | 22-806328 | FITTING, Oil Adaptor | 1 | ||||||
| 11 | 32-863899 | HOSE, Oil, Filter to Adaptor | 1 | ||||||
| 12 | 32-863900 | HOSE, Oil, Filter to Cooler | 1 | ||||||
| 13 | 16-424632 | STUD, (M8 x 37.1) | 1 | ||||||
| 14 | 23-34948 | SPACER | 1 | ||||||
| 15 | 54-475451 | CLIP | 2 | ||||||
| 16 | 862870T | ADAPTOR, Oil Filter | 1 | ||||||
| 17 | 26-862957 | SEAL, Oil Filter Adaptor | 1 | 2,3 | |||||
| 18 | 26-42077 | SEAL, Swivel Tube | 1 | 2,3 | |||||
| 19 | 22-862958 | FITTING, Oil Filter Adaptor | 1 | ||||||
| 20 | 863904T | COOLER, Oil | 1 | ||||||
| 21 | 863905T | BRACKET, Oil Cooler | 1 | ||||||
| 22 | 10-4000327 | SCREW, (M6 x 14) | 2 | ||||||
| 23 | 807445T | CLAMP, Cooler Bracket | 1 | ||||||
| 24 | 11-401366 | NUT, (M6) Stainless Steel | 1 | ||||||
| 25 | 12-22937 | WASHER | 1 | ||||||
| 26 | 22-805563 | CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) | 1 | ||||||
| 27 | 32-863915 | HOSE, Oil, Cooler to Adaptor | 1 | ||||||
| 28 | 883920 | VALVE ASSEMBLY, Filter | 1 |
