496 Mag HO Model - Serial 1A066166 Thru 1A350678 - Cooling System, Raw Water Components, Port (Bravo)

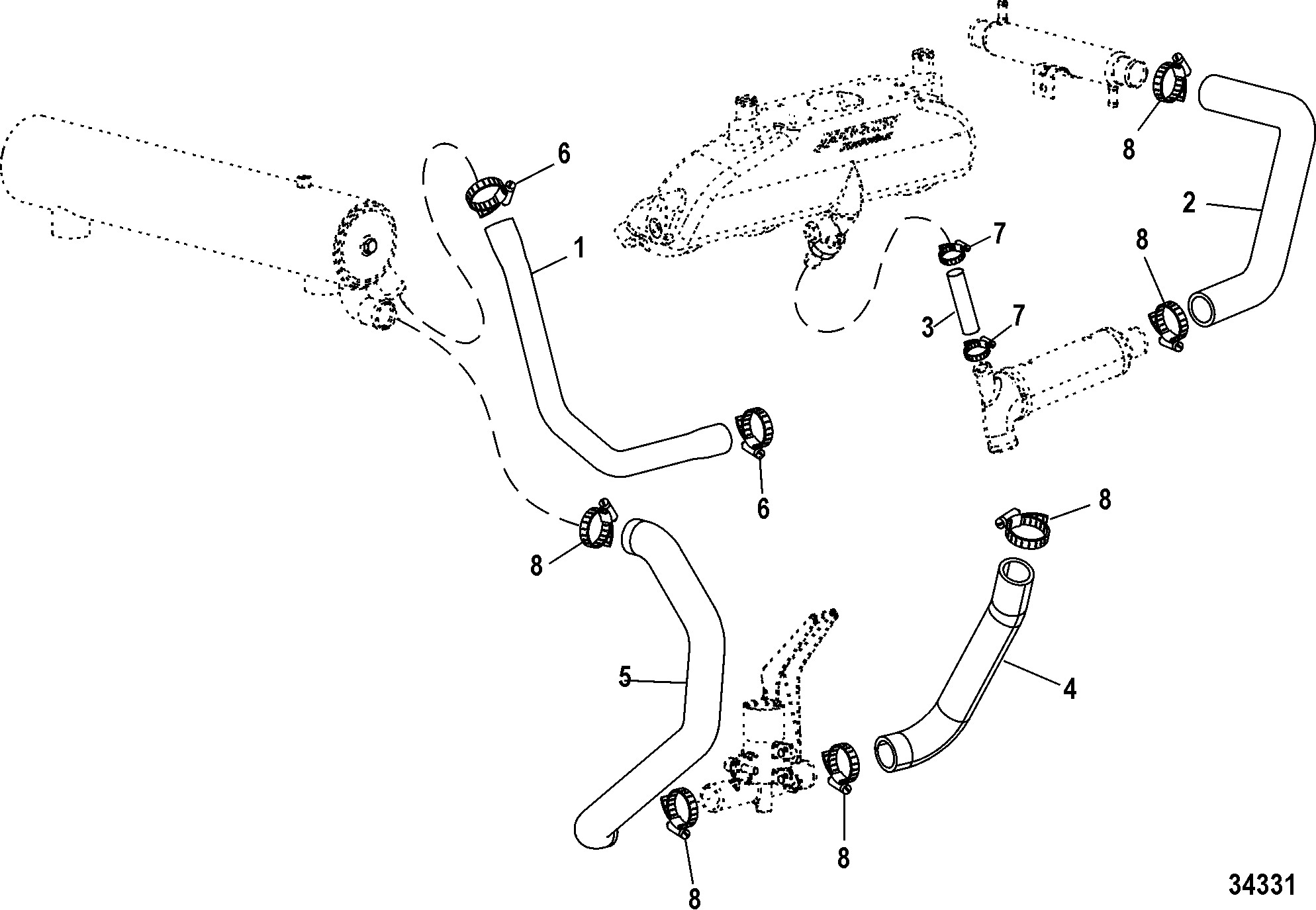

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-864488



HOSE, Heat Exchanger to Port Exhaust Manifold Drain 1
2 32-863894



HOSE, Power Steering Cooler to Oil Cooler 1

3 32-4285069



HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting 1   Port, Cut to 3.00 Inch Length
4 32-865265



HOSE, Oil Cooler to Port Drain Housing 1

5 32-863051



HOSE, Water Drain to Heat Exchanger 1
6 54-815504216



CLAMP, Worm Gear (1.56 Diameter) 2
7 54-815504212



CLAMP, Worm Gear 2
8 54-815504228



CLAMP, Worm Gear 8
