262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Cylinder Head And Rocker Cover

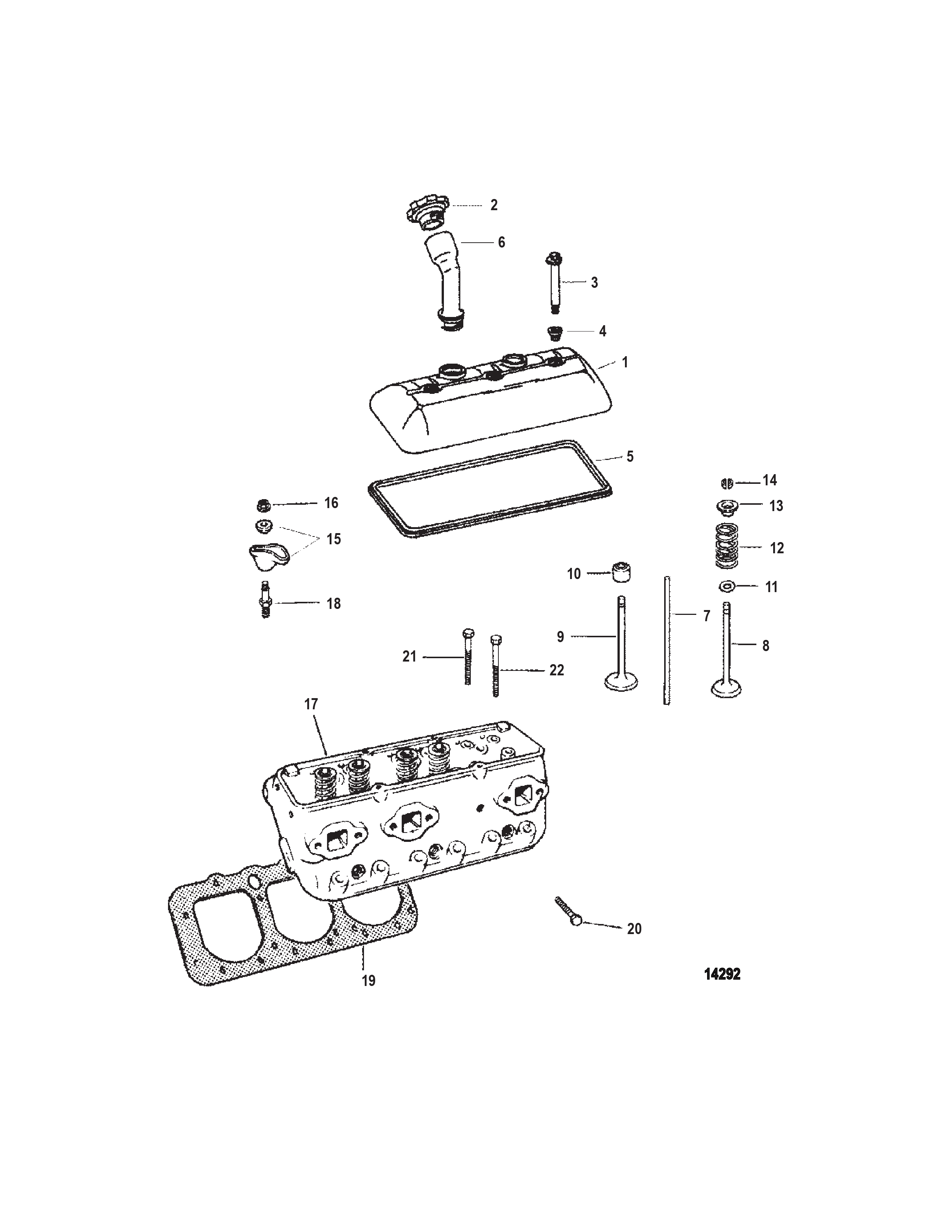

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-827149 COVER Rocker Without oil fill opening 1
1 0000 OEM: 525-827150 COVER Rocker With oil fill opening 1
2 0036 OEM: 525-36-827151 CAP Oil Fill   1
3 0010 OEM: 525-10-827153 SCREW   6
4 0025 OEM: 525-25-827155 O-RING   6
5 0027 OEM: 525-27-827154, Sierra: 676-18-61319, GLM: 700-30358 GASKET Rocker Cover   2 [1]
6 0000 OEM: 525-806754T TUBE Oil Fill   1
7 0000 OEM: 525-173391 PUSH ROD   12
8 0000 OEM: 525-8243171 VALVE Exhaust (STANDARD) 6
8 0000 OEM: 525-8243181 VALVE Exhaust (.030 O.S.) AR
9 0000 OEM: 525-809992 VALVE Intake (STANDARD) 6
10 0000 34518 SHIELD   12
11 0026 OEM: 525-26-976641, Sierra: 676-18-4024 SEAL (Intake) 6 [1]
11 0026 OEM: 525-26-34217, Sierra: 676-18-0518 SEAL (Exhaust) 6 [1]
12 0024 OEM: 525-24-483471 SPRING   12
13 0000 OEM: 525-483481 CAP   12
14 0028 OEM: 525-28-547971 KEY   24
15 0000 OEM: 525-824335T ROCKER ARM AND BALL KIT   12
16 0011 OEM: 525-11-801883 NUT   12
17 0938 8271782 CYLINDER HEAD ASSEMBLY   2
18 0016 OEM: 525-16-8018821 STUD   12
19 0027 816460 GASKET   2 [1]
20 0010 OEM: 525-10-11968 SCREW (.437-14 x 1.750)   12
21 0010 119671 SCREW (.437-14 x 3.00)   4
22 0010 OEM: 525-10-11966 SCREW (.437-14 x 3.750)   10
- 0027 OEM: 525-27-807756A96 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - COMPONENT OF ENGINE OVERHAUL GASKET SET 807756A96
