262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Intake Manifold And Front Cover

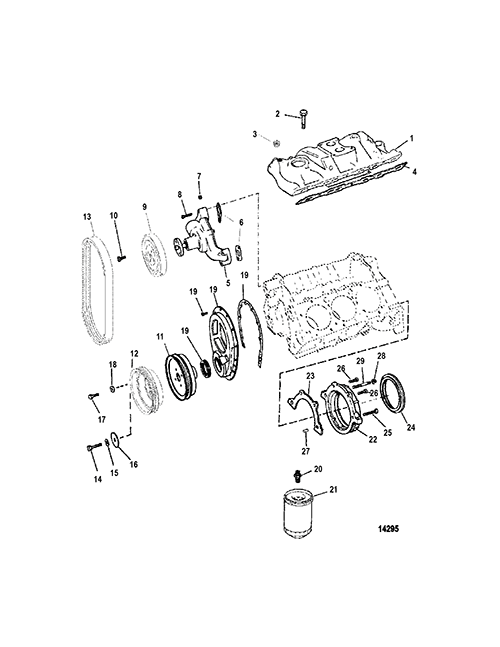

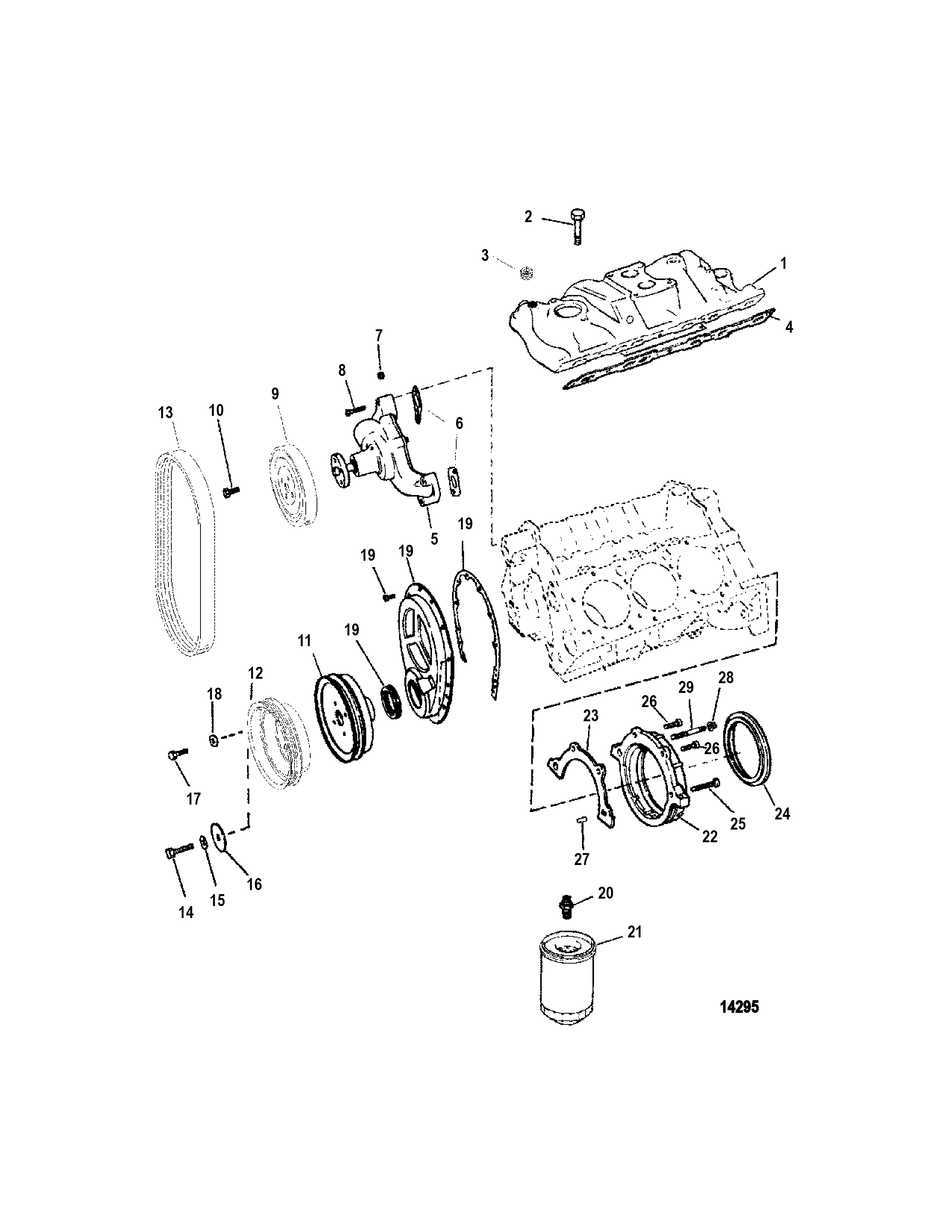

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 8243241 | MANIFOLD Intake | (2 BARREL) | 1 | |
| 1 | 0000 | 8243301 | MANIFOLD Intake | (4 BARREL) | 1 | |
| 2 | 0010 | OEM: 525-10-835004 | BOLT (.312-18 x 1.75) | 8 | ||
| 2 | 0010 | 11975 | BOLT (3/8-16 x 1.25) | 4 | ||
| 3 | 0022 | OEM: 525-22-75983 | PLUG | 1 | ||
| 4 | 0027 | 8243261 | GASKET SET | 1 | [1] | |
| 5 | 0000 | 850399 | PUMP ASSEMBLY Water | 1 | ||
| 6 | 0027 | OEM: 525-27-34897, Sierra: 676-18-0891, GLM: 700-31380 | GASKET | 2 | [1] | |
| 7 | 0022 | OEM: 525-22-48336 | PLUG Water Pump | 1 | ||
| 8 | 0010 | OEM: 525-10-32132 | SCREW (.375-16 x 1.750) | 3 | ||
| 8 | 0010 | OEM: 525-10-47688 | SCREW (.375-16 x 2.750) | 1 | ||
| 9 | 0000 | 807729T | PULLEY | 1 | ||
| 10 | 0010 | OEM: 525-10-47277 | SCREW (.312-24 x .750) | 4 | ||
| 11 | 0000 | 809892 | BALANCER Harmonic | 1 | ||
| 12 | 0000 | OEM: 530-807730T | PULLEY | 1 | ||
| 13 | 0057 | OEM: 530-861758A1 | BELT Serpentine | (ALPHA) 4-3/4 IN. DIA. P/S PULLEY | 1 | |
| 13 | 0057 | OEM: 525-57-861759A1 | BELT Serpentine | (BRAVO) 4-3/4 IN. DIA. P/S PULLEY | 1 | |
| 13 | 0057 | 861758 | BELT Serpentine | (ALPHA) 5-3/4 IN. DIA. P/S PULLEY | 1 | |
| 13 | 0057 | 861759 | BELT Serpentine | (BRAVO) 5-3/4 IN. DIA. P/S PULLEY | 1 | |
| 14 | 0010 | 32515 | SCREW (.437-20 x 2.50) | 1 | ||
| 15 | 0013 | OEM: 525-13-39131 | LOCKWASHER (.437) | 1 | ||
| 16 | 0012 | 35332 | WASHER | 1 | ||
| 17 | 0010 | OEM: 525-10-34352 | SCREW (.375-24 x .875) | 3 | ||
| 18 | 0012 | OEM: 525-12-34714 | WASHER | 3 | ||
| 19 | 0000 | 809893 | TIMING COVER ASSEMBLY | (SCREWS, GROMMETS AND OIL SEAL ARE NOT SOLD SEPARATELY) | 1 | |
| 20 | 0000 | 11972 | ADAPTER | W/O REMOTE OIL FILTER | 1 | |
| 21 | 0000 | 41815 | FILTER Oil | W/O REMOTE OIL FILTER | 1 | [2] |
| 22 | 0000 | 142391 | RETAINER Seal | 1 | ||
| 23 | 0027 | 14241 | GASKET | 1 | [1] | |
| 24 | 0026 | OEM: 525-26-14240, Sierra: 676-18-0519, GLM: 700-85790 | SEAL Oil | 1 | [1] | |
| 25 | 0010 | 14243 | BOLT (.250-20 x 1.750) | 1 | ||
| 26 | 0010 | OEM: 525-10-14242 | BOLT (.250-20 x .875) | 2 | ||
| 27 | 0017 | OEM: 525-17-14263 | PIN Dowel | 1 | ||
| 28 | 0011 | OEM: 525-11-11996 | NUT | 1 | ||
| 29 | 0016 | 148271 | STUD | 1 | ||
| - | 0027 | 824326A96 | GASKET SET Overhaul | 1 |
PART NOTES:
[1] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET
[2] - Alternate part numbers:
41815Service Part
883702KMPP
883702QQS
