262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Engine Mounting

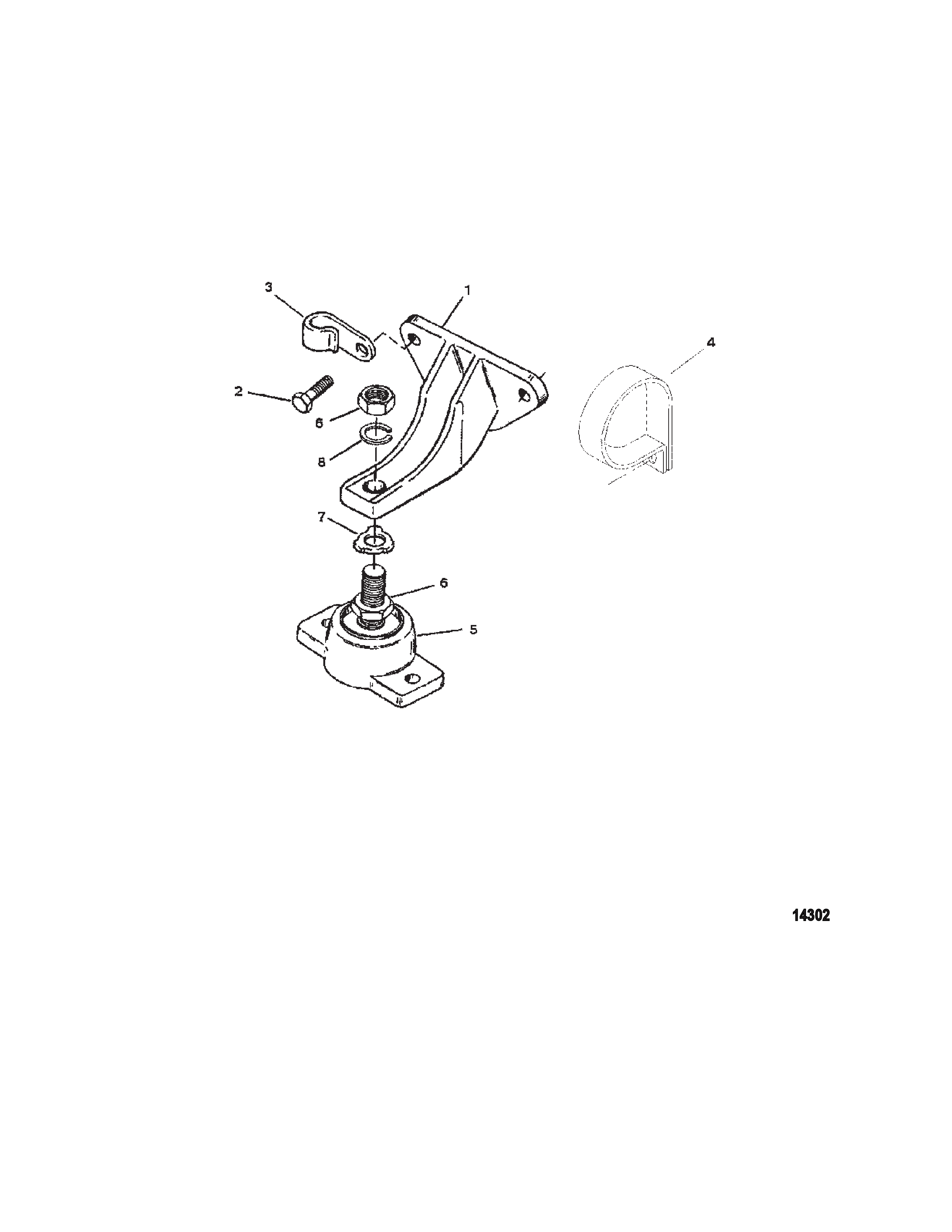

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-79550A1 BRACKET   2
2 0010 OEM: 525-10-68101 SCREW (.375-16 x 1.375) (VST Fuel System) [0K000000] & Below 6
2 0010 OEM: 525-10-68101 SCREW (.375-16 x 1.375) (Fuel Cooled System) [0K001511] & Up 2
2 0010 OEM: 525-10-48424 SCREW (.375-16 x 1.620) (Fuel Cooled System) [0K001511] & Up 2
2 0016 805357 STUD (.375-16 x 2.130) (Fuel Cooled System) [0K001511] & Up 2
3 0054 OEM: 525-54-92850 CLAMP (VST Fuel System) [0K000000] & Below 1
4 0054 OEM: 525-54-816398 CLIP (Fuel Cooled System) [0K001511] & Up 1
5 0000 OEM: 530-66284A2 BASE ASSEMBLY   2
6 0011 OEM: 525-11-20739 NUT (.750-16)   4
7 0014 OEM: 525-14-12657 TAB WASHER   2
8 0013 OEM: 525-13-68102 LOCKWASHER (.750)   2
