262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Standard Cooling System (Fuel Cooled System)

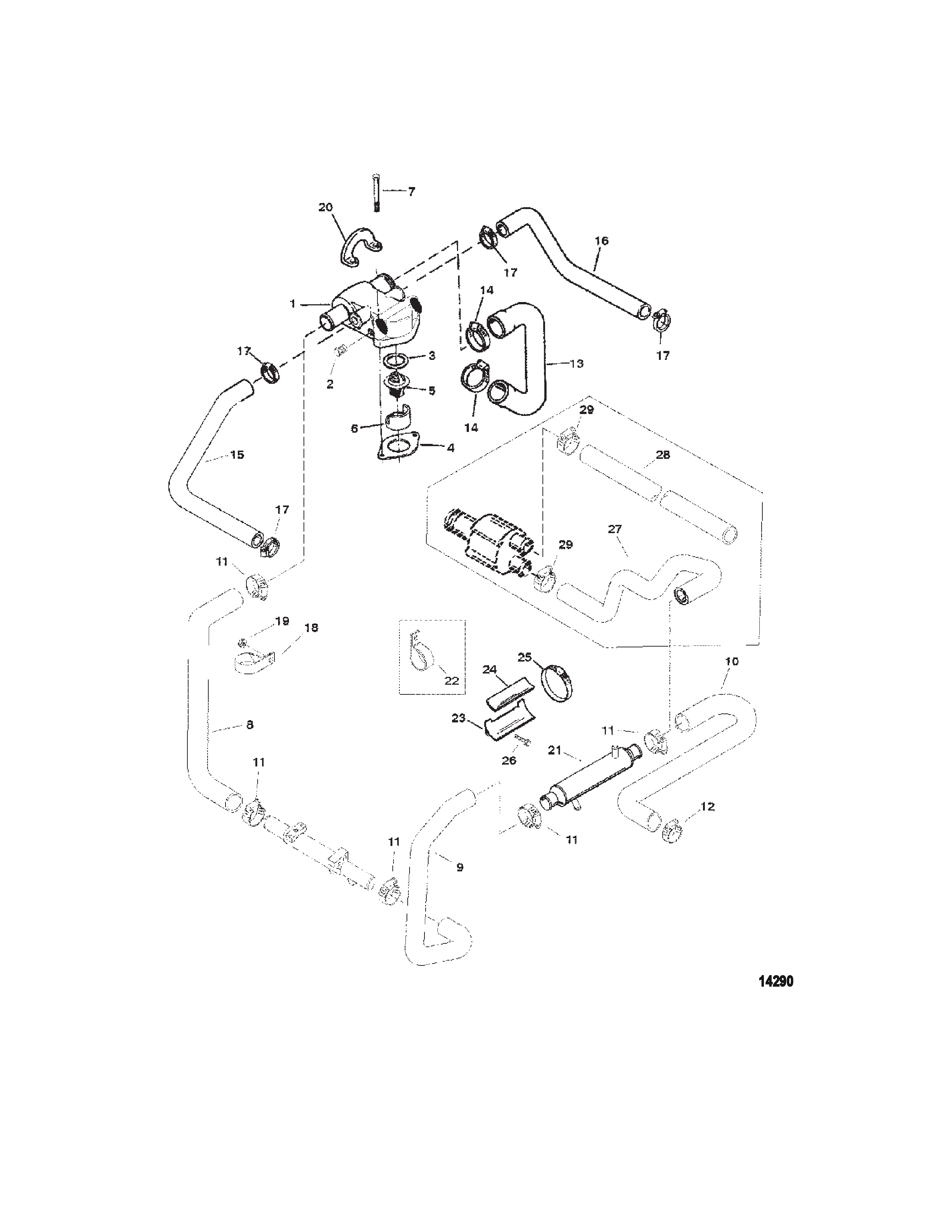

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 860256A1 | HOUSING ASSEMBLY Thermostat | (Alpha) | 1 | |
| 1 | 0000 | 860256A2 | HOUSING ASSEMBLY Thermostat | (Bravo) | 1 | |
| 2 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 2 | ||
| 3 | 0027 | OEM: 525-27-806871 | GASKET | 1 | [1] | |
| 4 | 0027 | OEM: 525-27-530451, Sierra: 676-18-2917 | GASKET | 1 | [2] | |
| 5 | 0000 | 8072522 | THERMOSTAT 71°C (160°F) | 1 | [3] | |
| 6 | 0023 | OEM: 530-806922 | SLEEVE | 1 | ||
| 7 | 0010 | OEM: 525-10-98508 | SCREW (.375-16 x 3.00) | 2 | ||
| 8 | 0032 | OEM: 525-32-808033, Sierra: 676-18-70948 | HOSE Molded Thermostat Housing To Fuel Cooler | 1 | ||
| 9 | 0032 | OEM: 525-32-860206 | HOSE Fuel Cooler To Power Steering Cooler | 1 | ||
| 10 | 0032 | OEM: 525-32-807661 | HOSE | (Alpha Engines) | 1 | |
| 11 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) | 5 | ||
| 12 | 0054 | OEM: 525-54-815504212 | CLAMP Worm Gear | 1 | ||
| 13 | 0032 | 87108 | HOSE Molded | 1 | ||
| 14 | 0054 | OEM: 525-54-815504232 | CLAMP Worm Gear (2.50 Diameter) | 2 | ||
| 15 | 0032 | OEM: 525-32-860144, Sierra: 676-18-70940 | HOSE Thermostat Housing To Port Exhaust Manifold | 1 | ||
| 16 | 0032 | OEM: 525-32-807697 | HOSE Thermostat Housing To Starboard Manifold | (One Piece Manifold) | 1 | |
| 16 | 0032 | 8066362 | HOSE Thermostat Housing To Starboard Exhaust Manifold | (Two Piece Manifold) | 1 | |
| 17 | 0054 | OEM: 525-54-815504220 | CLAMP Worm Gear | 4 | ||
| 18 | 0054 | OEM: 525-54-47715 | CLIP | 1 | ||
| 19 | 0011 | OEM: 525-11-29250 | NUT (.312-24) | 1 | ||
| 20 | 0000 | OEM: 525-12552, GLM: 700-13237 | LIFTING EYE | 1 | ||
| 21 | 0000 | 807292T | COOLER Power Steering Oil | 1 | ||
| 22 | 0054 | OEM: 525-54-816398 | CLIP | (Design I) | 1 | |
| 23 | 0000 | OEM: 525-805546A2 | BRACKET Oil Cooler | (Design II) | 1 | |
| 24 | 0000 | OEM: 525-772233 | PAD | (Design II) | 1 | |
| 25 | 0054 | OEM: 525-54-815504224 | CLAMP Worm Gear | (Design II) | 1 | |
| 26 | 0010 | OEM: 525-10-816585 | SCREW (.312-18 x .875) | 1 | ||
| 27 | 0032 | OEM: 525-32-860205, Sierra: 676-18-70951 | HOSE Oil Cooler To Sea Water Pump | (Bravo Engines) | 1 | [4] |
| 28 | 0032 | 1743579 | HOSE (96.00 Inches Bulk) | (Bravo Engines) | 1 | |
| 29 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) | (Bravo Engines) | 2 | |
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component Of Overhaul Gasket Set
[2] - Alternate part numbers:
53045 1Service Part
53045Q01QS
Component Of Overhaul Gasket Set
[3] - Alternate part numbers:
807252 2Service Part
807252Q 5QS Kit
807252T 5MPP Kit
[4] - Supersedes To Another Part Number
